PARTS LIST - WEER40 1938124003
Item
No.
Webb Part No.
Webb Description
Qty
Item
No.
Webb Part No.
Webb Description
Qty
1
WE126-4080061
Switch Box Assembly
1
38
WE126-301070903
Grass Flap
1
2
WE125-103080444
Top Handle (With Foam)
1
39
WE126-301062836
Rear Wheel
2
3
WE125-0301062831
Switch Box Small Cap
1
40
WE125-104010258
Washer
7
4
WE125-103990876
Opc Lever
1
41
WE125-1040500024
Split Washer
4
5
WE125-301070717
Left Permanent Seat
1
42
WE126-301062835
Rear Wheel Trim
2
6
WE125-301062827
Left Clamp
1
43
WE125-301062852
Height Adjuster Handle
1
7
WE125-104040082
M4x8 Bolt
3
44
WE126-103990877
Height Adjuster Lever
1
8
WE125-301070716
Left Fix Cover
1
45
WE125-104030203
M4x8 Screw
2
9
WE125-104030136
ST4.2X15BT Screw
23
46
WE126-103020148
Collection Bag Frame
1
10
WE125-0301070806
Cable Clip
2
47
WE125-301062851
Pin Shaft
2
11
WE125-301070899
Quick Release Handle
4
48
WE125-103990799
Back Connecting Rod
1
12
WE125-103990795
Spring Pin
4
49
WE125-103990811
Split Pin
3
13
WE125-104040202
M8×73 Bolt
2
50
WE124-103990797
Press Plate
6
14
WE125-301070779
Quick Release Support
2
51
WE126-301070797
Housing Insert
1
15
WE125-301070780
Quick Release Washer
2
52
WE125-104030135
St4.2*12 Screw
4
16
WE125-301070781
Triangle Knob
2
53
WE125-103060289-1
Tension Spring
1
Hex Nut
2
54
WE125-103990750
Pin
1
17
WE126-103020160
Lower Handle
1
55
WE125-103990798
Front Connecting
Rod
1
18
WE124-16
Cable Winder
2
56
WE126-301070796
Adjusting Bracket
1
19
WE124-301070910
Motor Cover
1
57
WE125-301062853
Long Pin Shaft
1
20
WE124-301070911
Air Window Cover
1
58
WE126-103050254
Adjusting Bracket
Shaft
1
21
WE124-301070396F
Motor Cover Carry
Handle
1
59
WE125-103060285
Height Adjuster
Spring
1
22
WE126-301070900
Upper Deck
1
60
WE125-104010257
Washer
7
23
WE126-04070214
Motor Assembly
1
61
WE124-103050242
Bearing
1
24
WE125-104030423
ST4.2x18 Screw
7
62
WE125-301070794
Blade Support Plate
1
25
WE126-301070901
Front Bumper
1
63
WE126-103030128
Blade
1
26
WE125-104030300
M5×12 Screw
2
64
WE124-104040205
M8x20 Blade
Flange Bolt
1
27
WE126-103990796
Height Adjuster Back
Plate
1
65
WE126-103050273
Front Axle
1
28
WE126-105020065
Height Adjuster Frame
1
66
WE125-301062850
Front Wheel
2
29
WE125-104020017
Locknut
2
67
WE125-301062849
Front Wheel Trim
2
30
WE125-104020077
Hex Nut
2
68
WE124-301070580P
Collector Carry Handle
1
31
WE126-301070789
Lower Deck
1
69
WE124-301062859
Full Indicator Flap
1
32
WE125-301070902
Lower Handle
Adjuster
2
70
WE126-301070904
Collector Top
1
33
WE125-104040215
Adjusting Bolt
2
71
WE126-105011065
Lower Collector
1
34
WE126-104050022
Split Washer
2
72
WE125-301990135
Pressing Line Plate
1
35
WE126-103050256
Grass Flap Axle
1
73
WE126-301070905
Grass Collecting
Basket Right Plug
1
36
WE126-103060290
Grass Flap Spring
1
74
WE126-301070906
Grass Collecting
Basket Left Plug
1
37
WE126-10305272
Rear Axle
1
NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we
recommend you contact our Spares Team on 01793 333212 for expert advice.

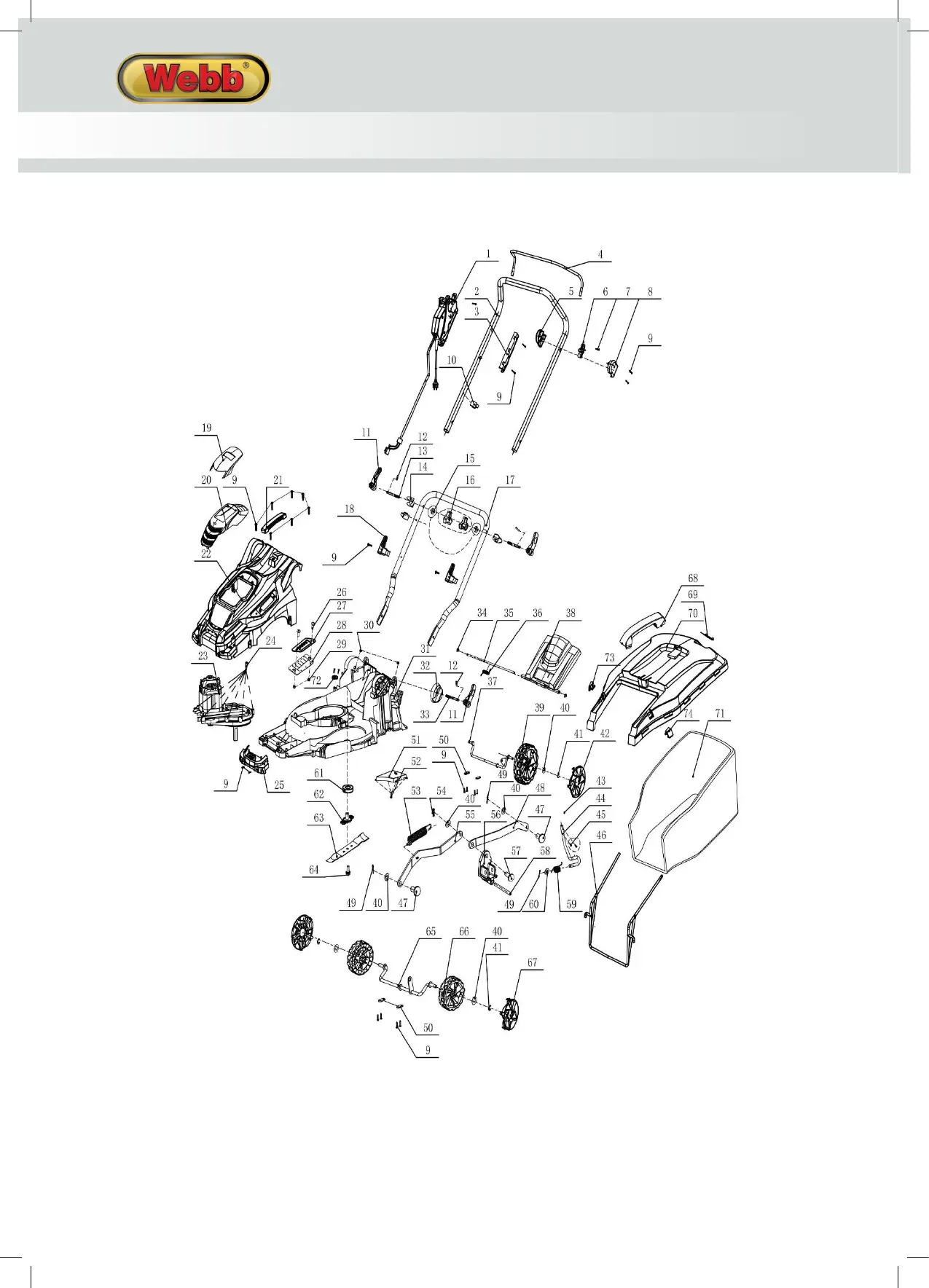

PARTS DIAGRAM - WEER40 1938124003
NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we
recommend you contact our Spares Team on 01793 333212 for expert advice.
