Webb WEPS400 - Page 28

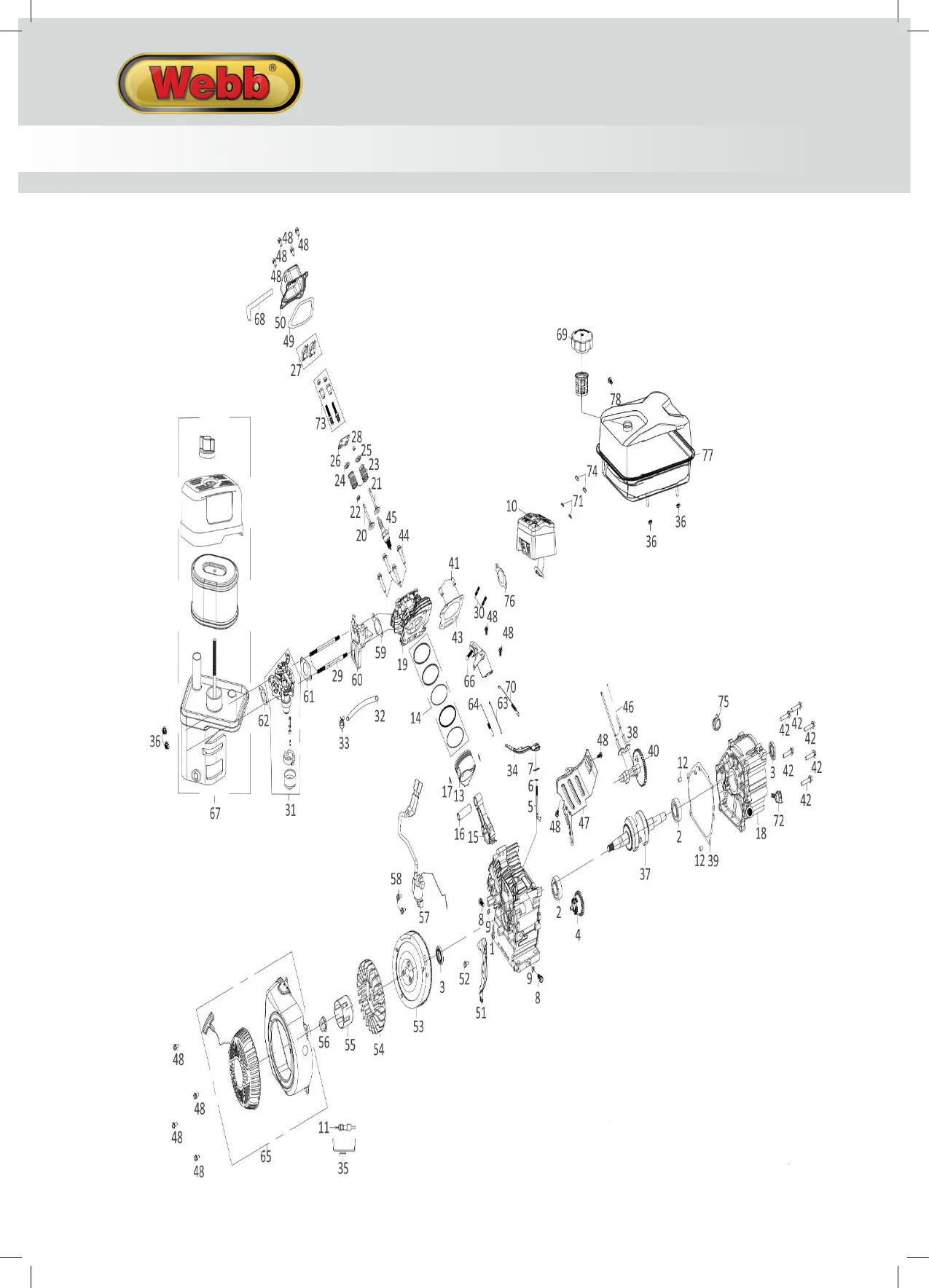

PARTS DIAGRAM – DH/DVO212 ENGINE 1938298001
PARTS LIST – DH/DVO212 ENGINE 1938298001
Item No
Webb Part No.
Webb Description
Qty
1
WE200-240211
Crankcase
1
2
WE156-93009
Ball Bearing
2
3
WE200-93507
Oil Seal
2
4
WE200-244302
Governor Assembly
1
5
WE200-243901
Governor Arm Shaft
1
6
WE200-96804
Governor Arm Shaft Washer
1
7
WE151-243902
Lock Pin
1
8
WE151-91816
Drain Bolt
2
9
WE151-94007
Oil Drain Bolt Washer
2
10
WE200-243700
Muffler
1
11
WE200-635004
Flameout Switch
1
12
WE200-240904
Case Cover Dowel Pin
2
13
WE200-241208
Piston
1
14
WE200-241606
Piston Scraper Ring Set
1
15
WE200-241503
Connecting Rod Assembly
1
16
WE200-245507
Piston Pin
1
17
WE156-241301
Piston Clip
2
18
WE200-240105
Crankcase Cover Assembly
1
19
WE200-241011
Cylinder Head
1
20
WE200-241704
Valve In
1
21
WE200-245904
Valve Exhaust
1
22
WE152-241806
Oil Seal Valve
1
23
WE156-246001
Valve Spring
2
24
WE200-241801
Valve Spring In Seat
1
25
WE200-841802
Valve Spring Ex Seat
1
26
WE200-242202
Push Rod Guide Plate
1
27
WE200-242101
Rocker Assembly
2
28
WE200-241804
Rotator
1
29
WE200-91006
Stud Bolt A
2
30
WE200-91007
Stud Bolt B
2
31
WE200-242815
Carburettor
1
32
WE200-95404
Fuel Line
1
33
WE151-94403
Fuel Line Clamp Ф7.5
1
34
WE200-244001
Governor Arm
1
35
WE182-635002
Bracket
1
36
WE150-90016
M6 Nut
4
37
WE200-240346
Crankshaft
1
38
WE200-246102
Valve Lifter
2
39
WE200-96040
Case Cover Gasket
1
Item No
Webb Part No.
Webb Description
Qty
40
WE200-242003
Camshaft Assembly
1
41
WE156-240905
Dowel Pin
2
42
M-M8x30MM
M8x30 Bolt
6
43
WE200-96058
Cylinder Head Gasket
1
44
WE200-91359
M8x60 Bolt
4
45
WE151-97109
Spark Plug
1
46
WE156-241901
Push Rod
2
47
WE200-240501
Shroud
1
48
WE156-91325
M6x12 Bolt
12
49
WE200-90645
Headcover Gasket
1
50
WE200-241107
Cylinder Head Cover
1
51
WE200-245703
Wind Shield
1
52
M-M6x20MM
M6x20 Bolt
1
53
WE200-240401
Flywheel Assembly
1
54
WE200-244601
Recoil Starter Fan
1
55
WE200-244502
Starter Pulley
1
56
WE151-90003
M14 Nut
1
57
WE200-97516
Ignition Coil Assembly
1
58
M-M5x25MM
M6x25 Bolt
2
59
WE200-96046
Intake Gasket
1
60
WE200-242301
Carburettor Insulator
1
61
WE200-96050
Carburettor Gasket
1
62
WE200-94229
Carburettor Spacer
1
63
WE200-242701
Governor Rod
1
64
WE200-244208
Throttle Return Spring
1
65
WE200-244740-010
Recoil Starter
1
66
WE200-244422
Upper Shroud Assembly
1
67
WE200-242936
Air Filter Assembly
1
68
WE200-95603
Breather Tube
1
69
WE200-243604
Fuel Tank Cap
1
70
WE200-244101
Governor Spring
1
71
WE200-94206
Spring Washer
2
72
WE200-245601-138
Dipstick
1
73
WE152-91818
Rocker Arm Bolt Assembly
2
74
M8PLAINNUT
M8 Nut
2
75
WE200-241401-138
Oil Filler Cap
1
76
WE200-96054
Exhaust Gasket
1
77
WE200-243130-010
Fuel Tank
1
78
WE200-91333
M6x28 Bolt
1
Not all componets are availabile singularly and may only be available as part of an assembly of components.
Please contact our Spares Team Tel: 01793 333212, option 1 or spares@handydistribution.co.uk for
assistance.
