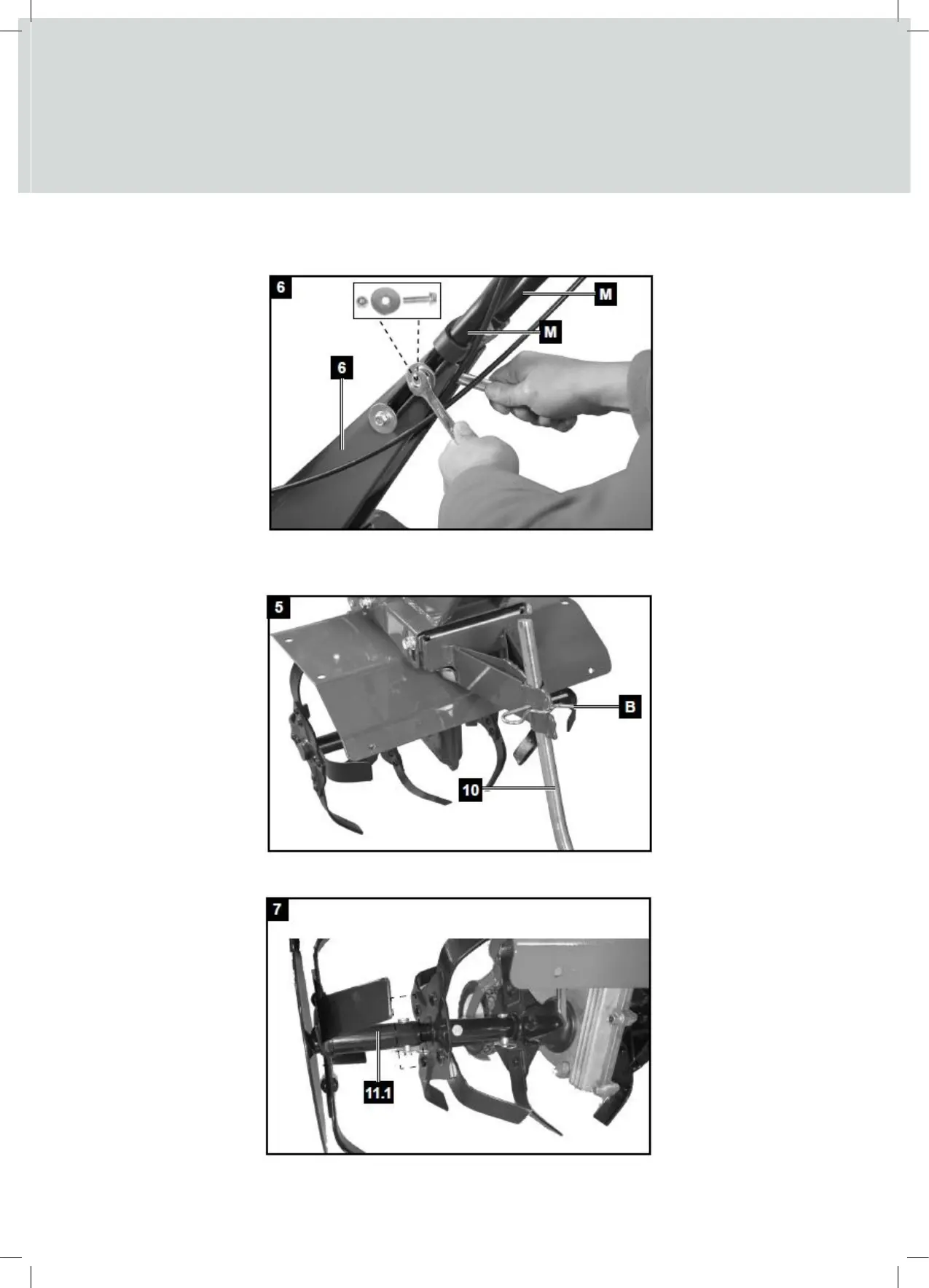

HANDLE BAR
• Attach the handle bar to the handle bar support properly to align the assembly holes (x2) and then fix with
M8x45 bolt, washer & nut.
DRAG BAR
• First attach the drag bar to the drag bar holder, choose a proper height and then lock the drag bar
with R‐type locking pin.
EXTRA TINES - (WEPT560MM ONLY)
• Mount extra tines to the axle and secure with the R-Clip.
