GUIDE WHEEL
ϭ During Normal speed (3.4km/h). Impact at an angle of less than 45 degrees and to fixed hard objects.
Ϯ The guide wheel will rub against a hard object, causing the direction of travel to change. Thereby
avoiding the hard object and preventing the machine from being damaged.
NOTE: Do not exceed the normal self-propelled speed and an impact angle of less than 45 degrees. Such
operation will cause the guide wheel to lose its function and the suction inlet to be damaged.
NOTE: This function is an auxiliary function that protects the suction inlet against accidental damage. DO
NOT intentionally test its strength. Concentrate on operating the machine, slow down in advance and
change direction to avoid hard objects.

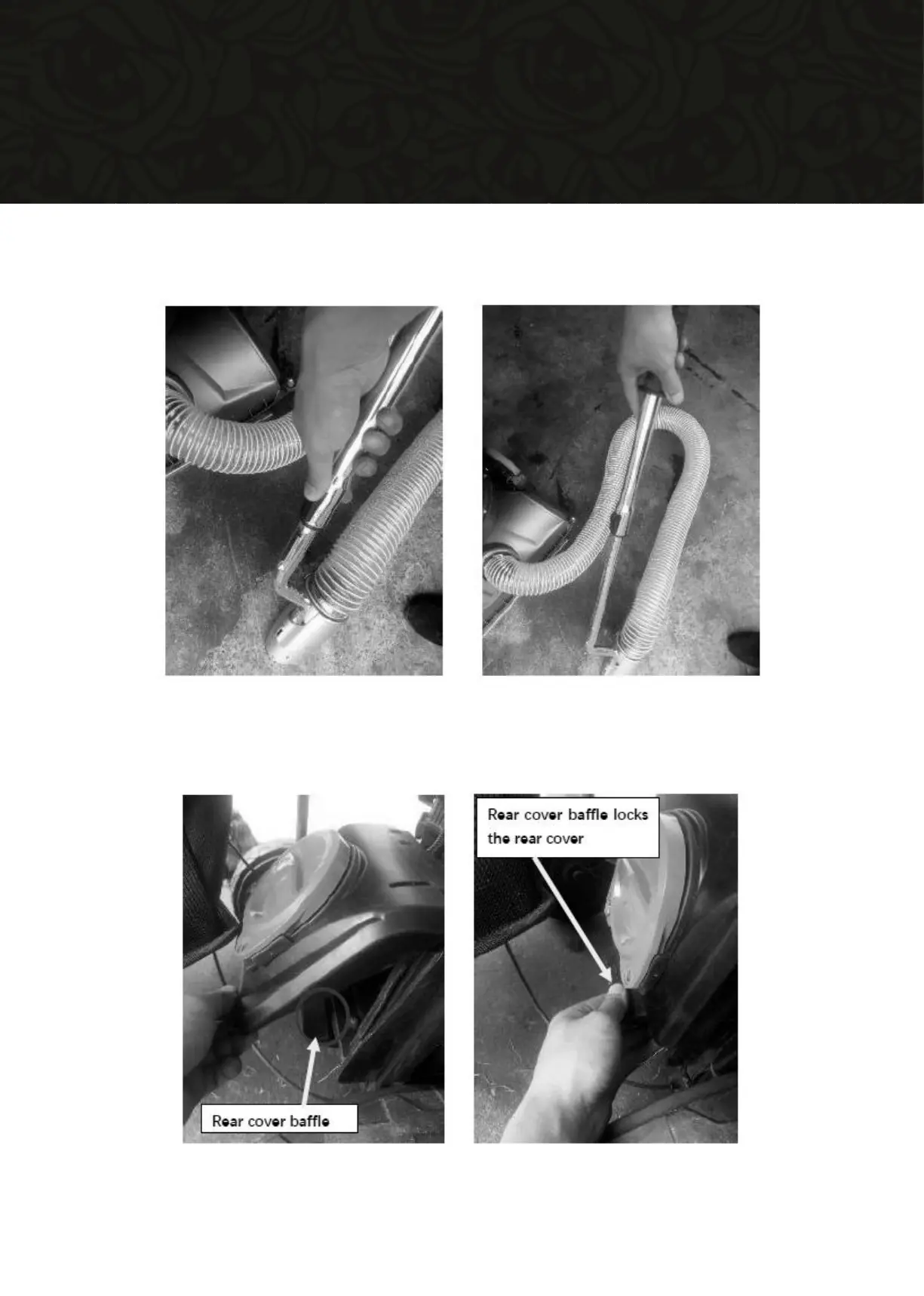

HOSE & BAFFLE
ϭ The engine is off.
Ϯ Assemble the hose and baffle to the machine, following the instructions from the Accessories section of
this instruction manual.
ϯ Start the machine. Point the end of the hose to the debris to be collected.
NOTE: When fitting or removing the hose and baffle, ensure the engine is off.
NOTE: The suction inlet baffle can only be used with the hose is fitted and in use.
area.
