INSTRUCTION MANUAL
INSTRUCTION MANUAL

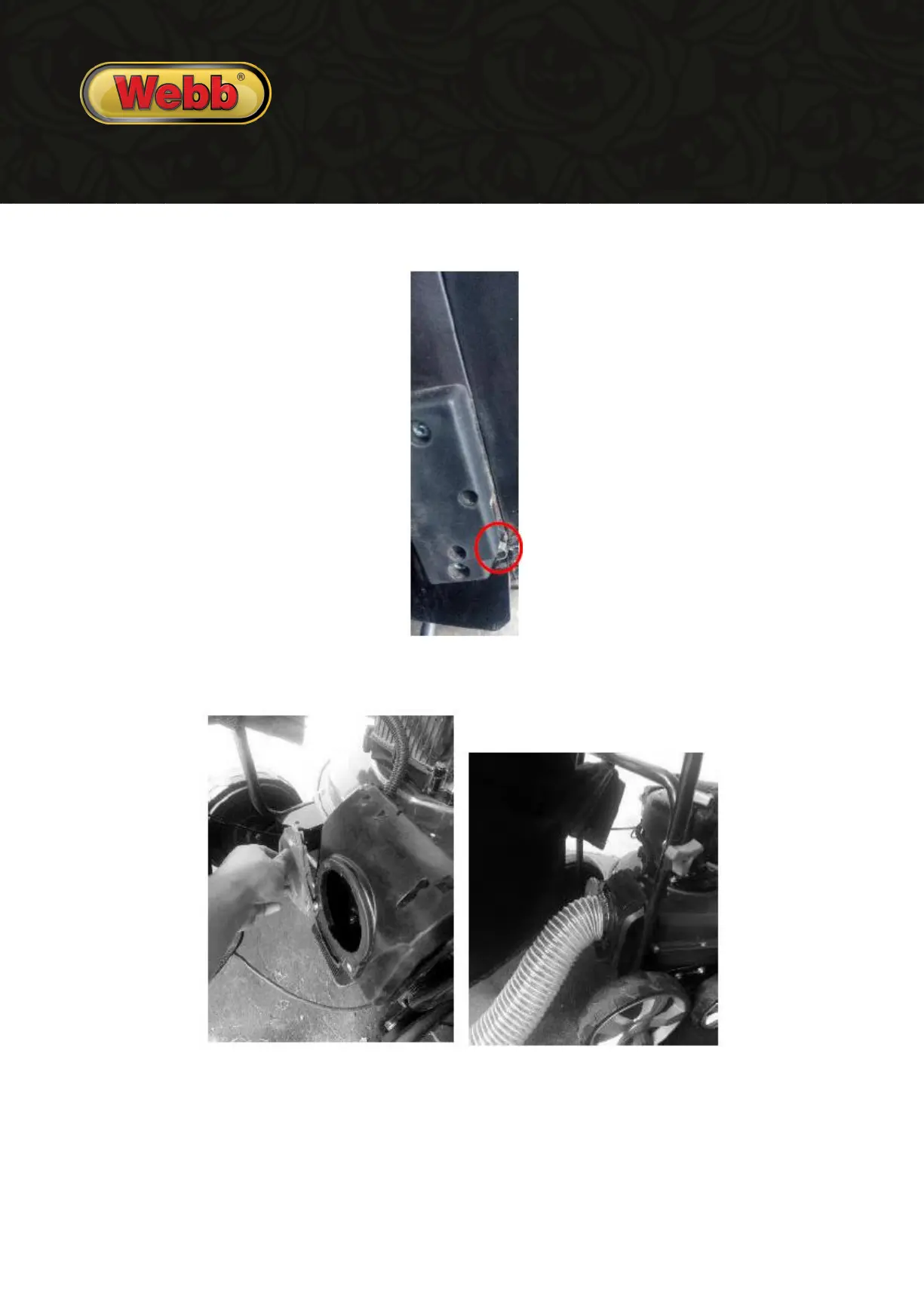

ϯ DĂŬĞƐƵƌĞƚŚĞƌŽĐŬĞƌĂƌŵŵŝĐƌŽƐǁŝƚĐŚŝƐŝŶƚŚĞĐůŽƐĞĚƉŽƐŝƚŝŽŶdŚŝƐŝƐůŽĐĂƚĞĚĂƚƚŚĞƌĞĂƌƚŽǁĂƌĚƐƚŚĞ
ďŽƚƚŽŵŽĨƚŚĞŵĂĐŚŝŶĞ
ϰ Open the rear hose cover.
ϱ Align the end of the hose connector with the rear hose inlet.
ϲ Insert the hose connector.
ϳ Rotate the hose connector clockwise, to lock.
NOTE: Please understand the parameters of the hose before use.
NOTE: When working, try to straighten the hose and work it to ensure maximum suction and wind speed.
NOTE: It is strictly forbidden to point the hose to others or any non-working area during work.
NOTE: It is strictly forbidden to load and unload the hose interface when the engine is running and
machine started.
NOTE: Do not pull the hose to move the machine forward or backward.
NOTE: Do not align the hose head with liquids, fire, and hazardous gases.
NOTE: Do not pick up the debris which is larger than the hose opening.
NOTE: When the hose is blocked, stop the machine and clear the obstruction.
NOTE: Keep the hose away from the engine and muffler.
BRUSH OR SCARIFIER CASSETTE
SCARIFIER - Only to be used on the lawn!
The cassette rotates and combs the lawn or aerates the slightly mossy areas. The removed moss is conveyed
into the collector. During aeration the surface of the ground is scratched; this improves water drainage and
facilitates the absorption of oxygen. We recommend scarifying the lawn during the entire growing period as
and when required.
BRUSH - When you encounter rubbish, wet leaves etc stuck on the ground and difficult to handle, use the
brush cassette. This does not damage the ground. Not to be used for collecting stones, metal cans, plastic,
wire and other debris which may damage the machine or engine.
Be sure the working area is clear of stones, sticks, wire, or other objects which could damage the machine or
engine. Such objects could be accidently thrown by the machine or accessory cassette in any direction and
cause serious personal injury to the operator and others.
Always ensure that a safe distance (provided by the handles) is maintained between the user and the
housing. Be especially careful when scarifying and changing direction on slopes and inclines. Maintain a solid
footing and wear sturdy, non-slip footwear and long trousers.
Do not work on excessively steep slopes, a maximum slope of 15 degrees is recommended. If a slope is
difficult to stand on, do not work. Do not trim on slopes when the ground is slippery or wet. Work across the
face of a slope, not up and down. Use special caution when backing up and pulling the machine backwards
(tripping hazard)!
WARNING
The operation of any accessory cassette can result in foreign objects being thrown into eyes, which can
cause severe damage. Always wear safety glasses or goggles while operating the accessory cassette, or
while performing any adjustments or repairs on it.
Shut the engine off and wait until the accessory cassette comes to a complete stop before cleaning the
discharge area. The accessory cassette continues to rotate for a few seconds after throttle lever is moved
to the Stop position.
CAUTION
While operating the scarifier cassette, do not allow the tines to contact concrete, tarmac or gravel
surfaces. Doing so will result in premature wear.
