WEBSTER
CHICAGO
BULLETIN 79P038
MODEL 80

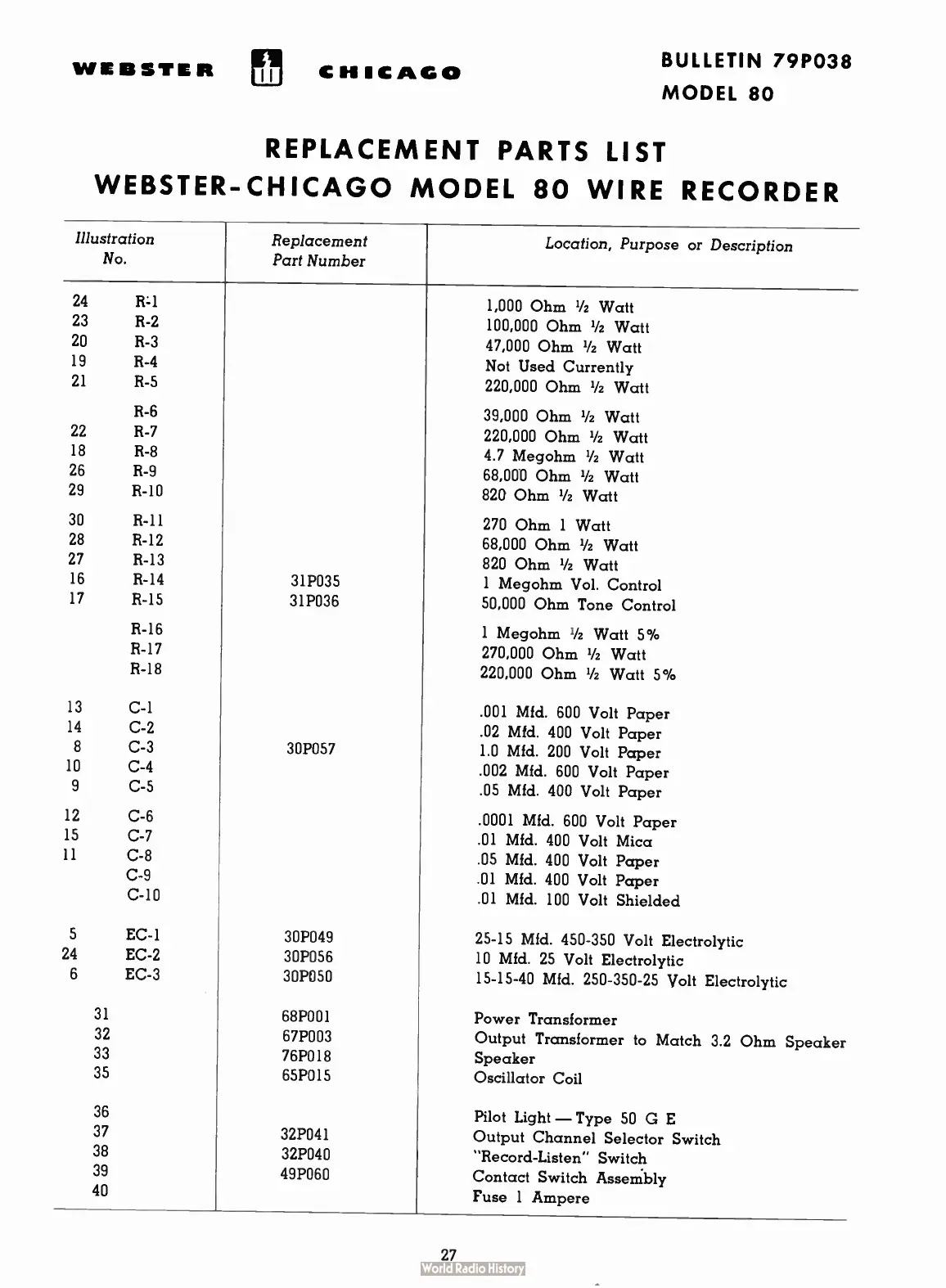

REPLACEMENT PARTS LIST
WEBSTER-CHICAGO MODEL 80 WIRE RECORDER
Illustration
No.
Replacement
Part Number
Location, Purpose or Description
24 R L1
23 R-2
20 R-3
19 R-4
21 R-5
R-6
22 R-7
18 R-8
26 R-9
29 R-10
30 R-11
28 R-12
27 R-13
16 R-14
17 R-15
R-16
R-17
R-18
13 C-1
14 C-2
8 C-3
10 C-4
9 C-5
12 C-6
15 C-7
11 C-8
C-9
C-10
5 EC- 1
24 EC- 2
6 EC- 3
31
32
33
35
36
37
38
39
40
31P035
31P036
30P057
30P049
30P056
30P050
68P001
67P003
76P018
65P015
32P041
32P040
49P060
1,000 Ohm 1/2 Watt
100,000 Ohm 1/2 Watt
47,000 Ohm 1/2 Watt
Not Used Currently
220,000 Ohm 1/2 Watt
39,000 Ohm 1/2 Watt
220,000 Ohm 1/2 Watt
4.7 Megohm 1/2 Watt
68,000 Ohm 1/2 Watt
820 Ohm 1/2 Watt
270 Ohm 1 Watt
68,000 Ohm 1/2 Watt
820 Ohm 1/2 Watt
1 Megohm Vol. Control
50,000 Ohm Tone Control
1 Megohm 1/2 Watt 5%
270,000 Ohm 1/2 Watt
220,000 Ohm 1/2 Watt 5%
.001 Mfd. 600 Volt Paper
.02 Mid. 400 Volt Paper
1.0 Mfd. 200 Volt Paper
.002 Mfd. 600 Volt Paper
.05 Mfd. 400 Volt Paper
.0001 Mfd. 600 Volt Paper
.01 Mfd. 400 Volt Mica
.05 Mfd. 400 Volt Paper
.01 Mfd. 400 Volt Paper
.01 Mfd. 100 Volt Shielded
25-15 Mfd. 450-350 Volt Electrolytic
10 Mfd. 25 Volt Electrolytic
15-15-40 Mfd. 250-350-25 Volt Electrolytic
Power Transformer
Output Transformer to Match 3.2 Ohm Speaker
Speaker
Oscillator Coil
Pilot Light — Type 50 G E
Output Channel Selector Switch
"Record- Listen" Switch
Contact Switch Assembly
Fuse 1 Ampere
