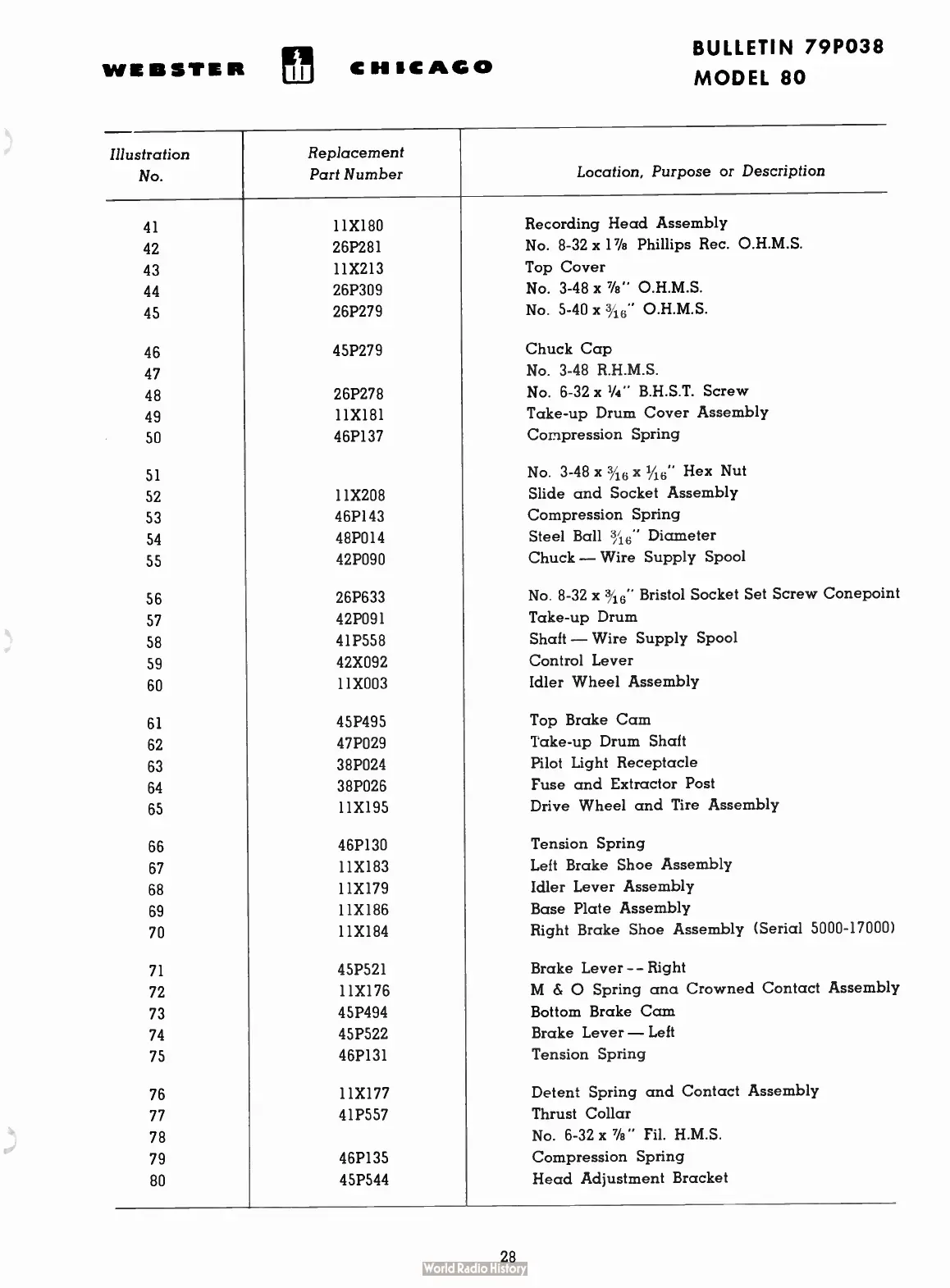

WEBSTER CHICAGO 79 - Page 31

WEBSTER
CHICAGO
BULLETIN 79P038
MODEL 80
Illustration
No.
Replacement
Part Number
Location, Purpose or Description
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
11X180
26P281
11X213
26P309
26P279
45P279
26P278
11X181
46P137
11X208
46P143
48P014
42P090
26P633
42P091
41P558
42X092
11X003
45P495
47P029
38P024
38P026
11X195
46P130
11X183
11X179
11X186
11X184
45P521
11X176
45P494
45P522
46P131
11X177
41P557
46P135
45P544
Recording Head Assembly
No. 8-32 x 17/8 Phillips Rec. 0.H.M.S.
Top Cover
No. 3-48 x 7/8- 0.H.M.S.
No. 5-40 x 0.H.M.S.
Chuck Cap
No. 3-48 R.H.M.S.
No. 6-32 x 1/4 - B.H.S.T. Screw
Take-up Drum Cover Assembly
Compression Spring
No. 3-48 x 3A6 X 1/ 16 " Hex Nut
Slide and Socket Assembly
Compression Spring
Steel Ball :/j .6 " Diameter
Chuck — Wire Supply Spool
No. 8-32 x : -¡6" Bristol Socket Set Screw Conepoint
Take-up Drum
Shaft — Wire Supply Spool
Control Lever
Idler Wheel Assembly
Top Brake Cam
Take-up Drum Shaft
Pilot Light Receptacle
Fuse and Extractor Post
Drive Wheel and Tire Assembly
Tension Spring
Left Brake Shoe Assembly
Idler Lever Assembly
Base Plate Assembly
Right Brake Shoe Assembly ( Serial 5000-17000)
Brake Lever - - Right
M & 0 Spring ana Crowned Contact Assembly
Bottom Brake Cam
Brake Lever — Left
Tension Spring
Detent Spring and Contact Assembly
Thrust Collar
No. 6-32 x 7/8" Fil. H.M.S.
Compression Spring
Head Adjustment Bracket
28
