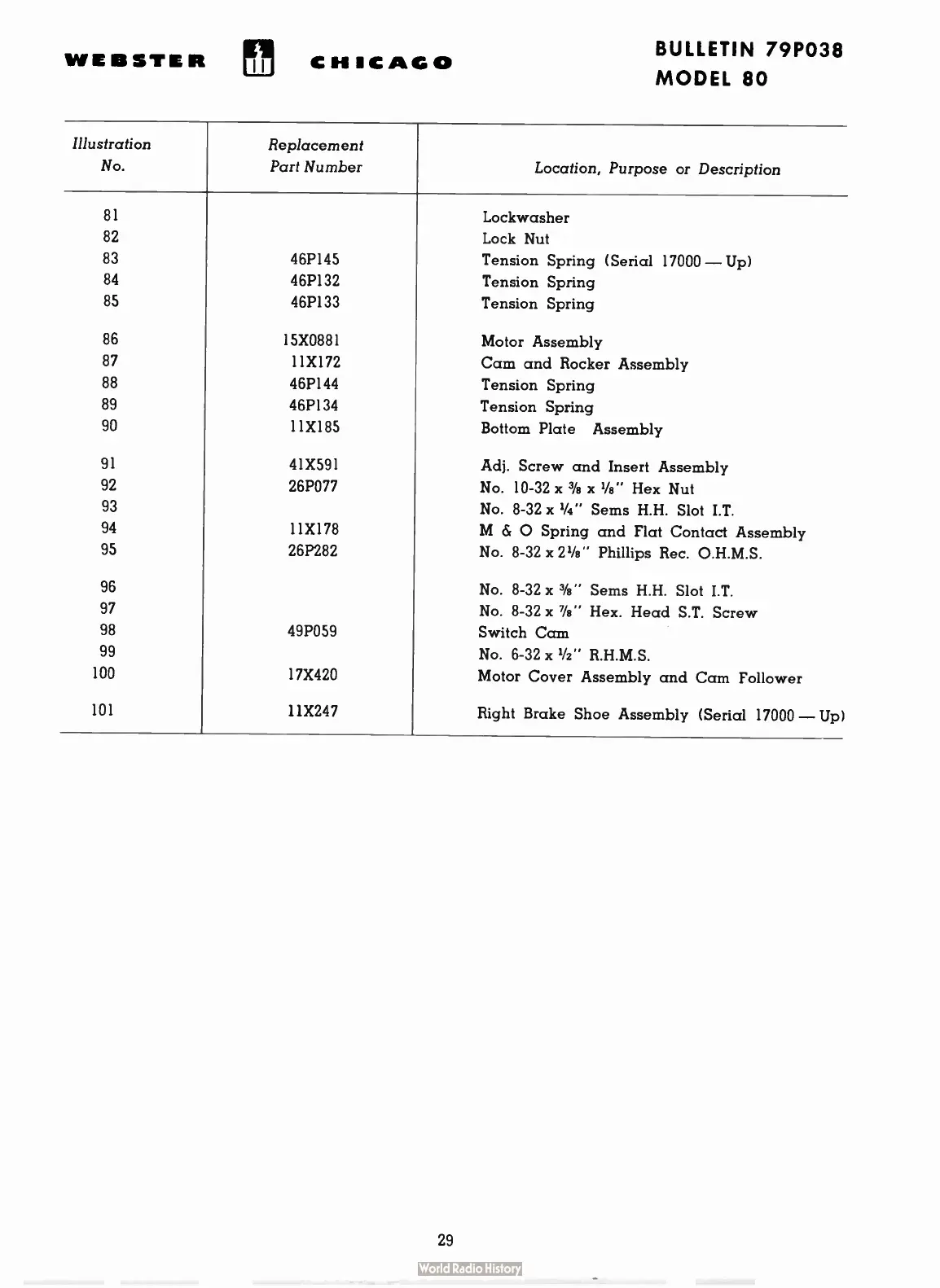

WEBSTER CHICAGO 79 - Page 32

CHICAGO
BULLETIN 79P038
MODEL 80
Illustration
No.
Replacement
Part Number
Location, Purpose or Description
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
46P145
46P132
46P133
15X0881
11X172
46P144
46P134
11X185
41X591
26P077
11X178
26P282
49P059
17X420
11X247
Lockwasher
Lock Nut
Tension Spring ( Serial 17000 — Up)
Tension Spring
Tension Spring
Motor Assembly
Cam and Rocker Assembly
Tension Spring
Tension Spring
Bottom Plate Assembly
Adj. Screw and Insert Assembly
No. 10-32 x x I /8 " Hex Nut
No. 8-32 x 1/4 " Sems H.H. Slot I.T.
M & 0 Spring and Flat Contact Assembly
No. 8-32 x 21/4 " Phillips Rec. 0.H.M.S.
No. 8-32 x 3/8 " Sems H.H. Slot I.T.
No. 8-32 x Vs" Hex. Head S.T. Screw
Switch Cam
No. 6-32 x 1/2 " R.H.M.S.
Motor Cover Assembly and Cam Follower
Right Brake Shoe Assembly ( Serial 17000 — Up)
29
