B600 Service Manual
3. Instalation and maintenance
3.1 Dataplate and signs
Read the information on the dataplate on the safety transformer box .
The connected primary voltage can be checked after removal of the top cover of the safety
transformer.
The voltage is marked on the connectors.
The overcurrent relay can be reset with the RESET-button on the safety transformer box.
Read the WARNING sign.
Read the dataplate on the cleaner.
Note that there is no sign of earthing since it is connected through the safety transformer.
An approved earth leakage breaker must be used all the time. It should be installed at the
electrical supply.
Make sure that the fuses are of the correct size and that they are intact.
Inspect the earth leakage breaker.

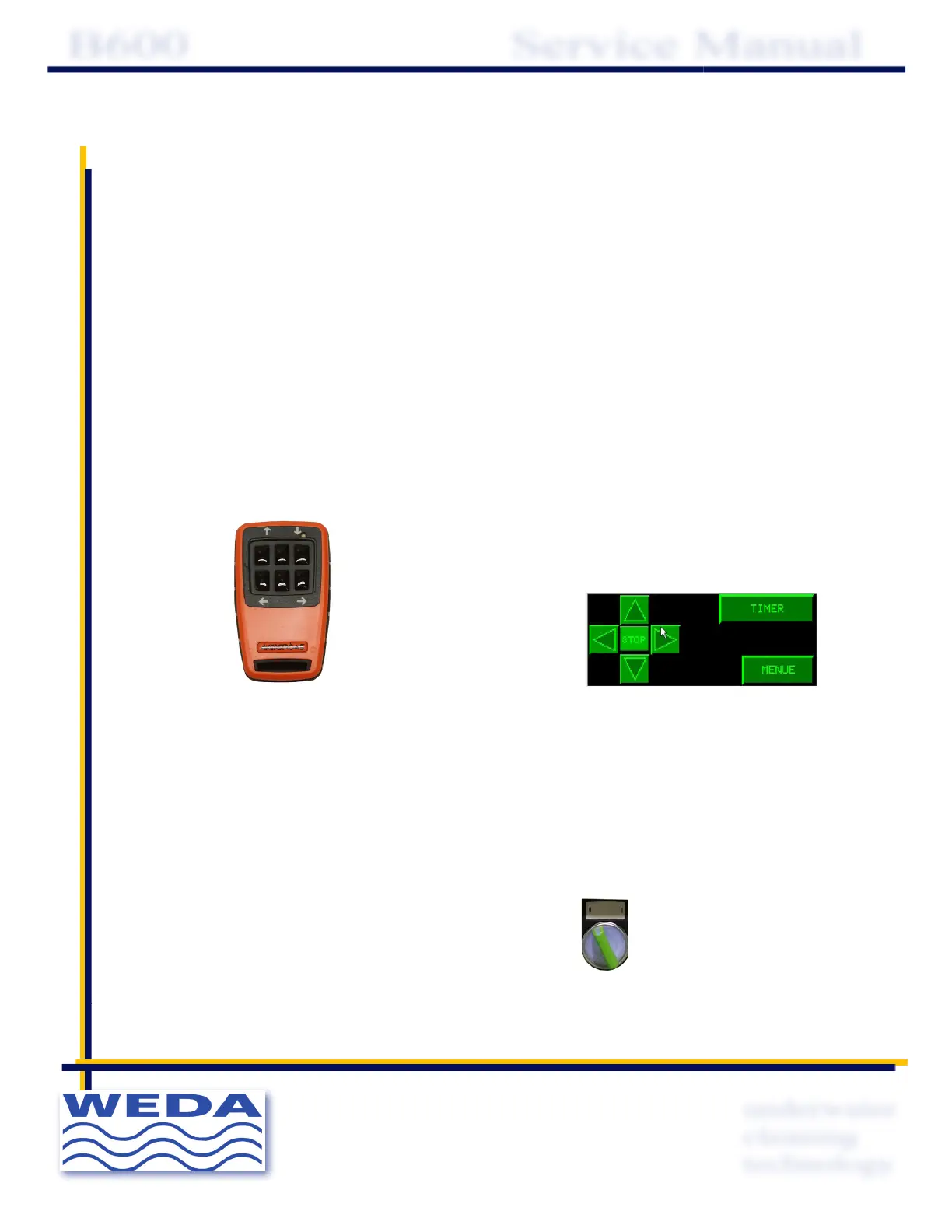

3.2 Remote control and start up display
Remote control Start up display
Please consult the PLC control system Instruction manual.
3.3 On/Off Switch
Connect the el.cable to the supply
Turn the On/O switch to position 1 .
When the switch is on position 1/On it lights.
