REPAIR PARTS
TRACTOR - - MODEL NUMBER SGT18H46C

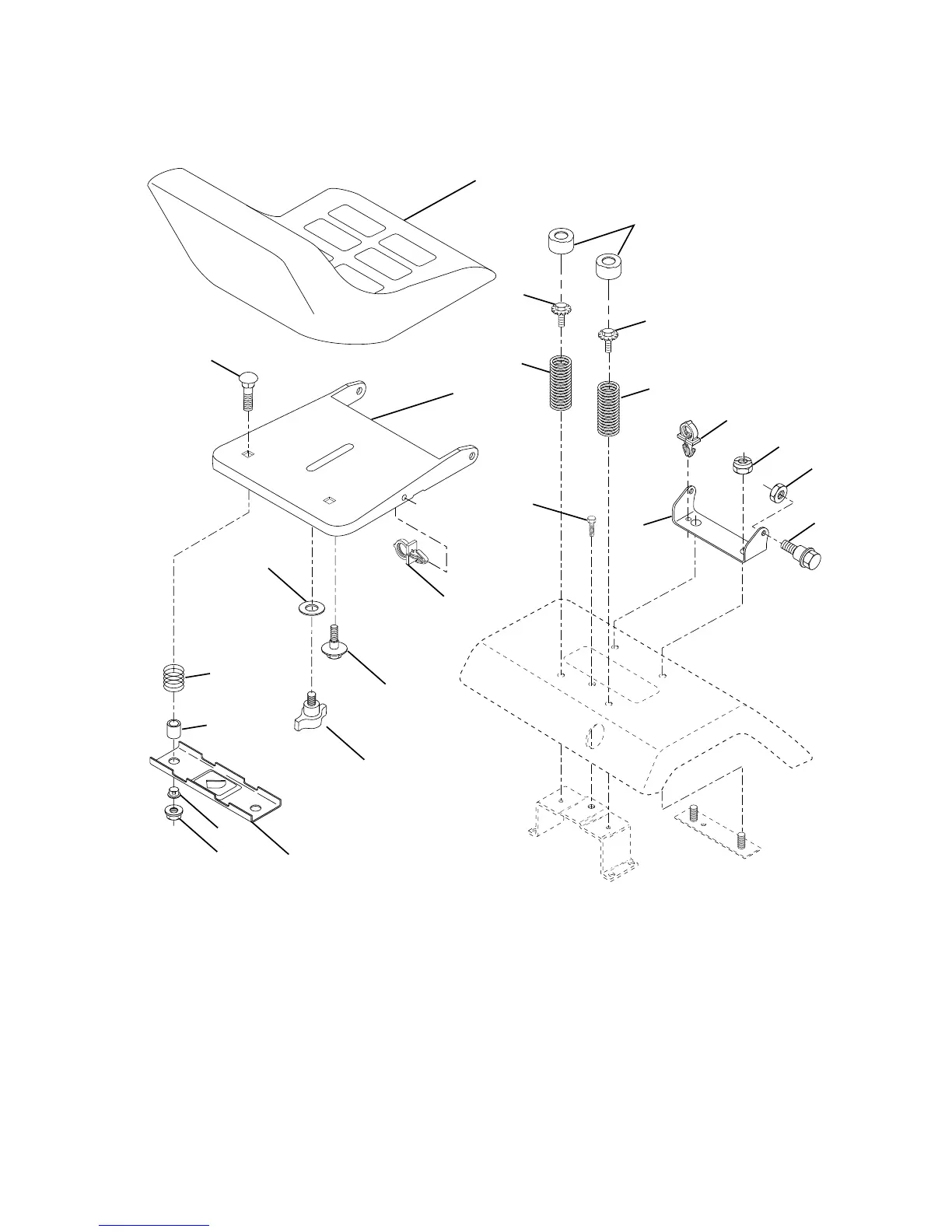

SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 140118 Seat
2 140551 Pivot Bracket, Seat
5 145006 Clip, Push-in Hinged
6 73800600 Nut, Lock Hex w/Ins 3/8-16 UNC
7 124181X Spring, Seat
10 174894 Pan, Seat
11 166369 Knob, Seat, Black
12 121246X Bracket, Switch Mounting
13 121248X Bushing, Snap, Black, Nylon
14 72050412 Bolt, Carriage 1/4-20 x 1-1/2
15 121249X Spacer, Split
11
1
24
16
15
12
13
17
25
28
7
28
7
27
18
2
6
22
21
5
10
5
14
KEY PART
NO. NO. DESCRIPTION
16 123740X Spring
17 123976X Locknut, Flange 1/4 Grade 5
18 124238X Cap Spring Seat Blk 1.75 x 1.0
21 171852 Bolt, Shoulder 5/16-18 Unc -2A
22 73800500 Nut Lock Hex W/Ins 5/16-18 Unc
24 19171912 Washer 17/32 x 1-3/16 x 12 Gauge
25 127018X Bolt, Shoulder 5/16-18 x .62
27 17490608 Screw Thdrol 3/8-16 x 3/4
28 171877 Bolt 5/16-18 UNC x 3/4 w/Sems
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
To Next Page
