REPAIR PARTS
TRACTOR - - MODEL NUMBER SGT18H46C

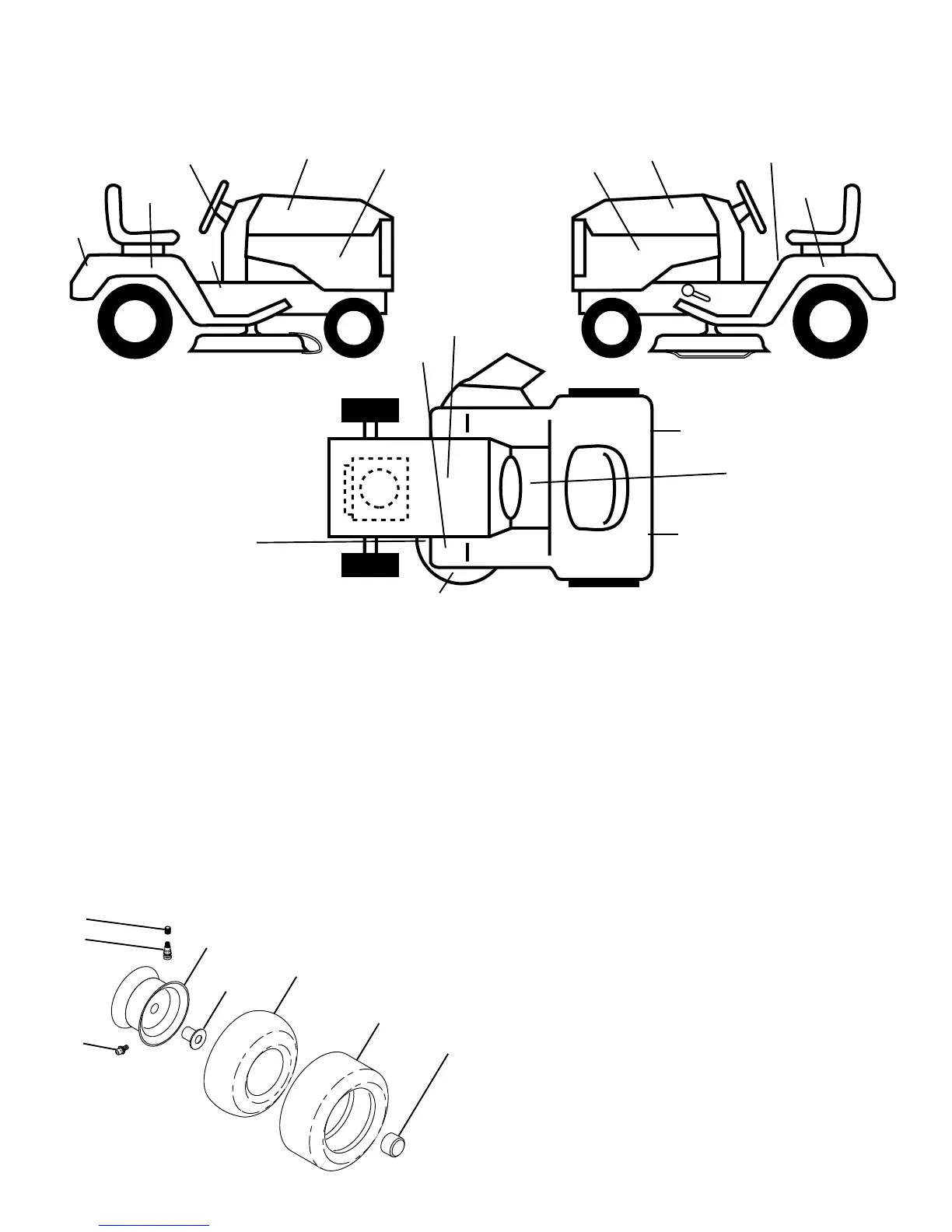

DECALS
3
4
11
7
10
13
13
8
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 171448 Decal Fender
2 164022 Decal Side Panel
3 177174 Decal Hood LH
4 177173 Decal Hood RH
6 140837 Decal Parking Brake
7 157002 Decal Danger Fender English
8 4900J Decal Clutch/brake English
10 139346 Decal V-Belt Sch
11 162398 Decal Steering
12 156835 Decal Oper sDL Eng
13 106202X Reflector Taillight
14 145005 Decal, Btry Dngr/Psn
17 177512 Decal Fender Side
19 162391 Decal Deck
- - 142341 Decal Cntrl Movement
- - 157199X428 Pad, Footrest
- - 138311 Decal Handle Lft Height Adjust
- - 178387 Manual, Owner's (English)
WHEELS & TIRES
14
6
2
1
5,8
4,10
3,9
11
7
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106230X Tire Front
4 59904 Tube Front (Service Item Only)
5 106228X427 Rim Asm 8" front
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel nly)
8 124074X427 Rim Asm 12" rear
9 124106X Tire R 23 x 8.5-12 C Service
10 7154J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire (1 Doz. Tube)
