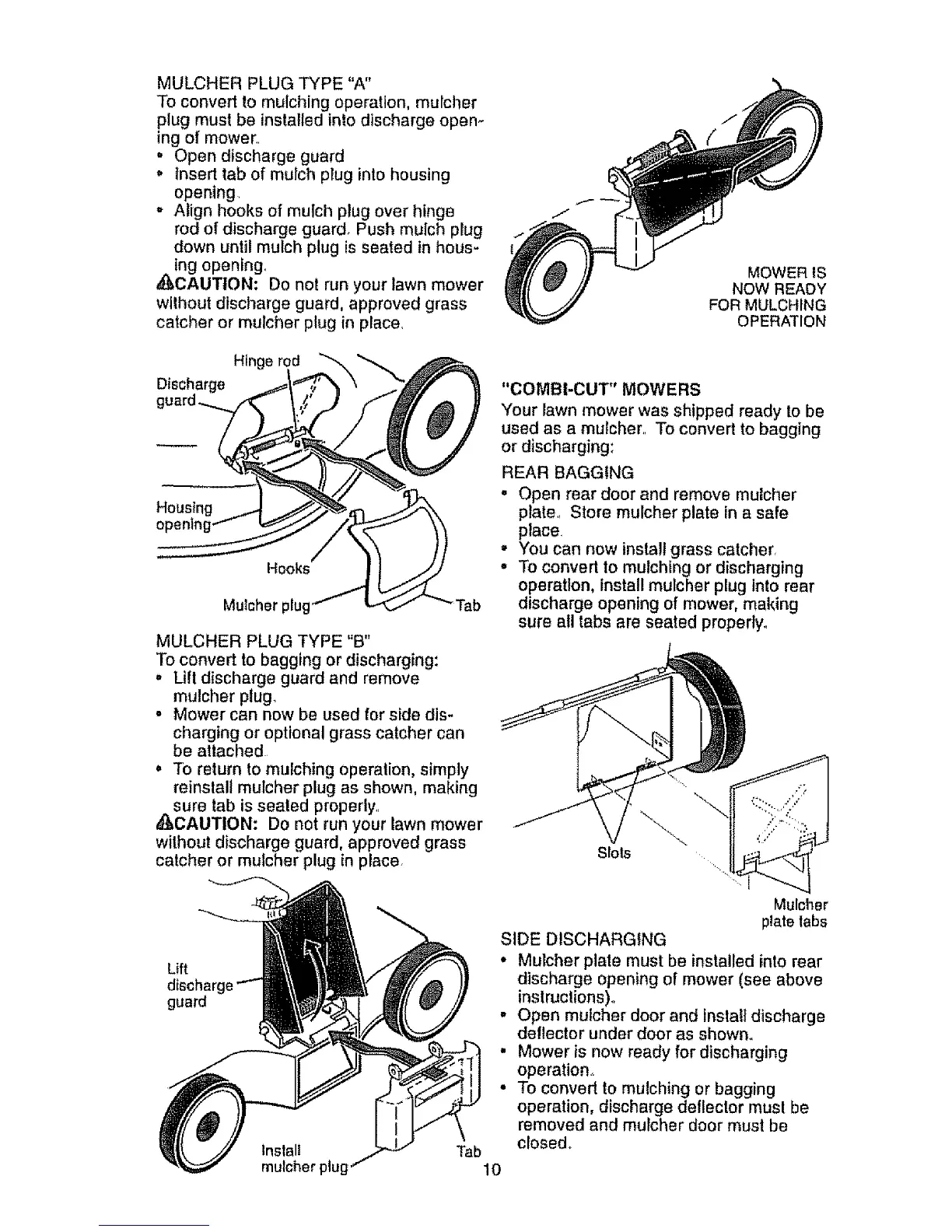

MULCHER PLUG TYPE "A"
To convert to mulching operation, mufcher
plug must be installed into discharge open
ing of mower_.
• Open discharge guard
• Insert tab of mulch plug into housing
opening.
- Align hooks of mulch plug over hinge
rod of discharge guard, Push mulch plug
down until mulch plug is seated in hous-
ing opening,
_,CAUTtON: Do not run your lawn mower
without discharge guard, approved grass
catcher or mulcher plug in place.
Hin
Discharge
Muicher plug
MULCHER PLUG TYPE "B"
To convert to bagging or discharging:
• Lift discharge guard and remove
mulcher plug.
. Mower can now be usedfor side dis-
chargingor optional grass catcher can
be attached
° To return to mulching operation,simply
reinstall mulcher plugas shown, making
sure tab is seated properly_.
_CAUTION: Do not runyour lawn mower
without discharge guard, approved grass
catcher or mulcher plugin place.
Lift
guard
lnstall
mulcher
Tab
10
MOWER IS
NOW READY
FOR MULCHING
OPERATION
"COMBI-CUT" MOWERS
Your lawn mower was shipped ready to be
used as a mulcher.. To convert to bagging
or discharging:
REAR BAGGING
• Open rear door and remove mulcher
plate., Store mulcher plate in a safe
place.
• You can now install grass catcher.
, To convert to mulching or discharging
operation, Install mulcher plug into rear
discharge opening of mower, making
sure all tabs are seated propedyo
Mulcher
platetabs
SIDE DISCHARGING
° Mulcher plate must be installed into rear
discharge opening of mower (see above
instructions),.
- Open mulcher door and Install discharge
deflector under door as shown°
• Mower is now ready for discharging
operation°
• To convert to mulching or bagging
operation, discharge deflector must be
removed and mulcher door must be
closed°
