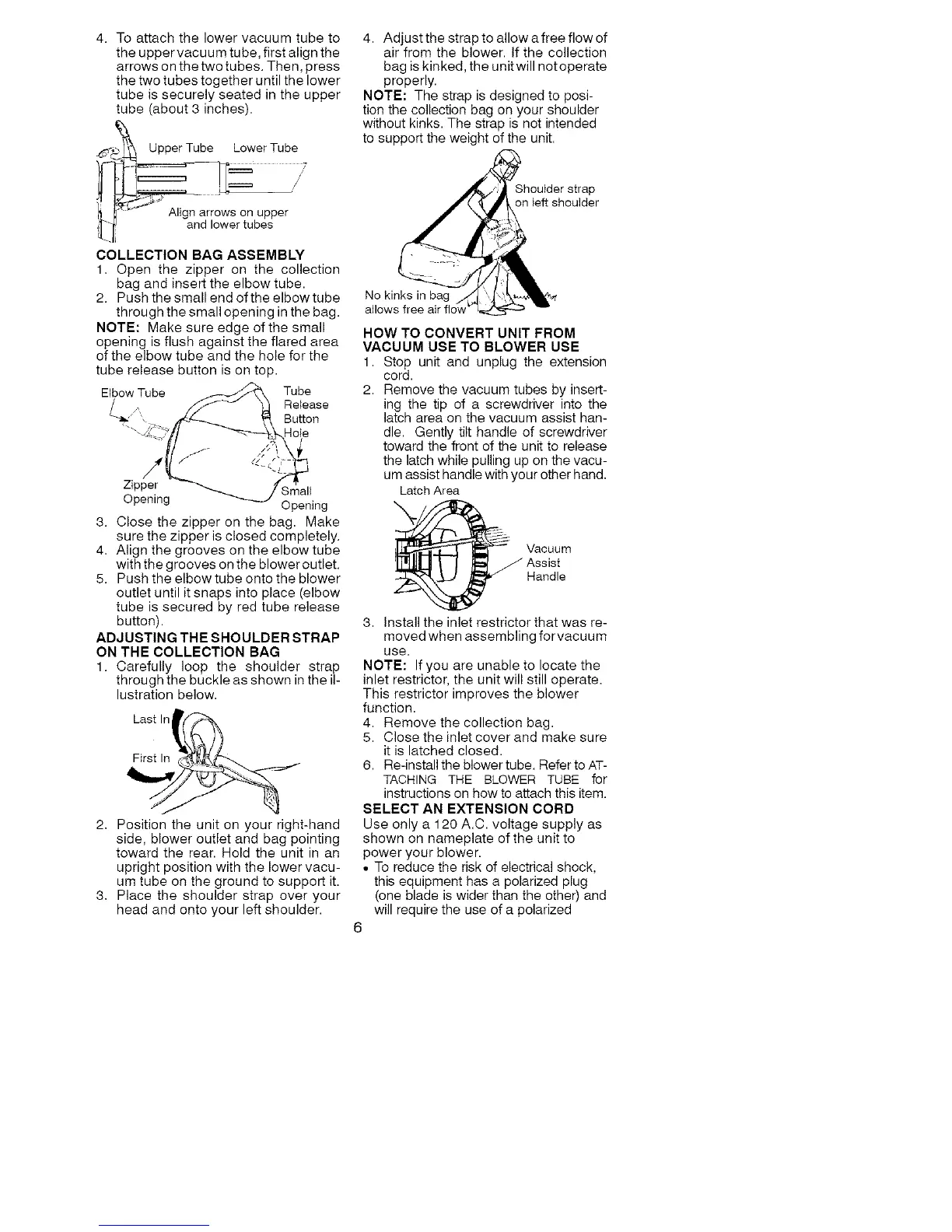

4.Toattachthelowervacuumtubeto
theuppervacuumtube,firstalignthe
arrowsonthetwotubes.Then,press
thetwotubestogetheruntilthelower
tubeissecurelyseatedintheupper
tube(about3inches).
_p_ UpperTubeLowerTube
r sonupper
" andlowertubes
COLLECTIONBAG ASSEMBLY
1. Open the zipper on the collection
bag and insert the elbow tube.
2. Push the small end ofthe elbow tube
through the small opening in the bag.
NOTE: Make sure edge of the small
opening is flush against the flared area
of the elbow tube and the hole for the
tube release button is on top.
Elbow Tube Tube
Release
Button
Hole
Zipper _1
Opening Opening
3. Close the zipper on the bag. Make
sure the zipper is closed completely.
4. Align the grooves on the elbow tube
with the grooves on the blower outlet.
5. Push the elbow tube onto the blower
outlet until it snaps into place (elbow
tube is secured by red tube release
button).
ADJUSTING THE SHOULDER STRAP
ON THE COLLECTION BAG
1. Carefully loop the shoulder strap
through the buckle as shown in the il-
lustration below.
Last IntQ _
2. Position the unit on your right-hand
side, blower outlet and bag pointing
toward the rear. Hold the unit in an
upright position with the lower vacu-
um tube on the ground to support it.
3. Place the shoulder strap over your
head and onto your left shoulder.
4. Adjust the strap to allow a free flow of
air from the blower. If the collection
bag is kinked, the unit will not operate
properly.
NOTE: The strap is designed to posi-
tion the collection bag on your shoulder
without kinks. The strap is not intended
to support the weight of the unit.
Shoulder strap
on left shoulder
No kinks in bag
allows
HOW TO CONVERT UNIT FROM
VACUUM USE TO BLOWER USE
1. Stop unit and unplug the extension
cord.
2. Remove the vacuum tubes by insert-
ing the tip of a screwdriver into the
latch area on the vacuum assist han-
dle. Gently tilt handle of screwdriver
toward the front of the unit to release
the latch while pulling up on the vacu-
um assist handle with your other hand.
Latch Area
3. Install the inlet restrictor that was re-
moved when assembling forvacuum
use.
NOTE: If you are unable to locate the
inlet restrictor, the unit will still operate.
This restrictor improves the blower
function.
4. Remove the collection bag.
5. Close the inlet cover and make sure
it is latched closed.
6. Re-install the blower tube. Refer to AT-
TACHING THE BLOWER TUBE for
instructions on how to attach this item.
SELECT AN EXTENSION CORD
Use only a 120 A.C. voltage supply as
shown on nameplate of the unit to
power your blower.
• To reduce the risk of electrical shock,
this equipment has a polarized plug
(one blade is wider than the other) and
will require the use of a polarized
6
