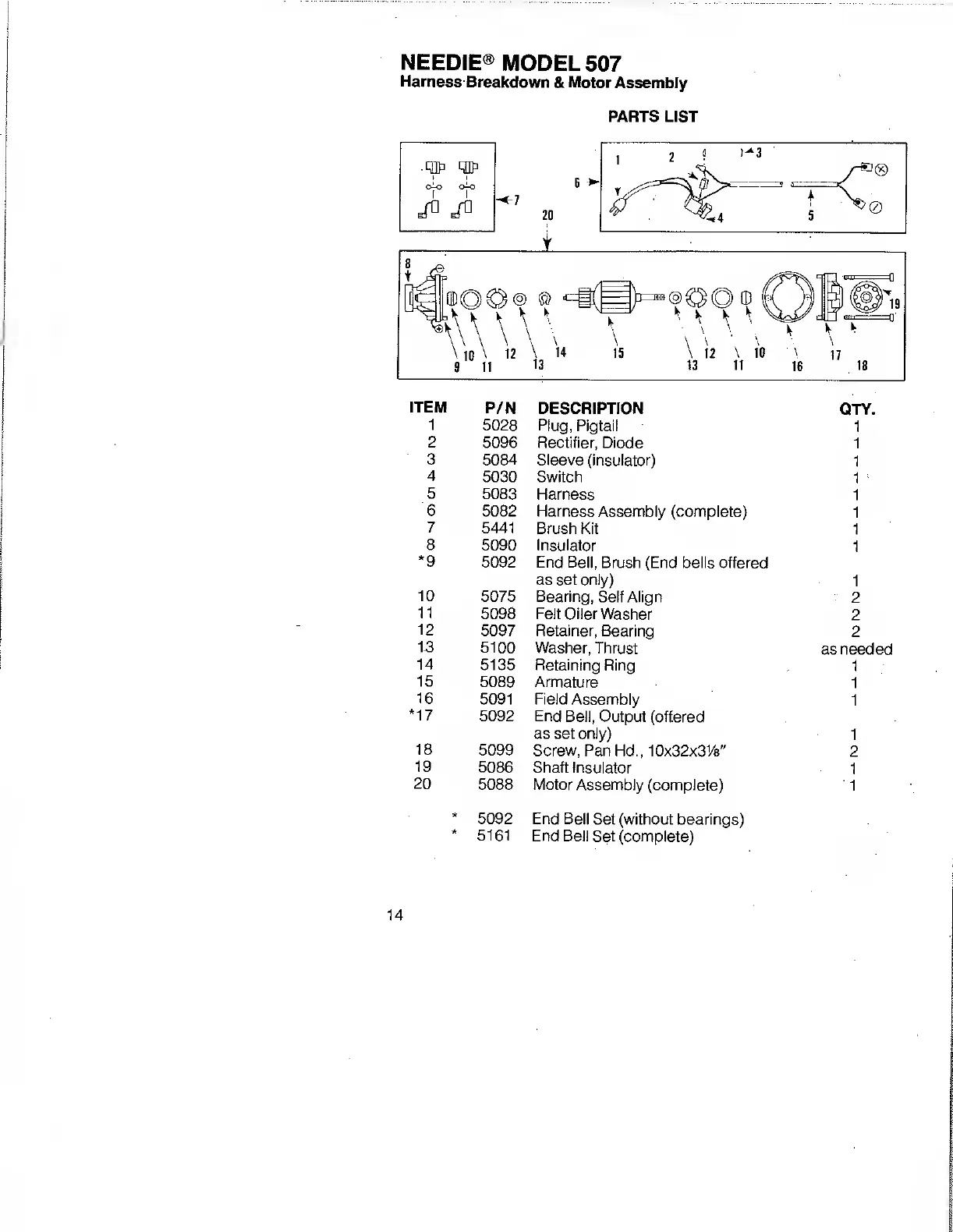

NEEDIE® MODEL 507
Harness Breakdown & Motor Assembly
PARTS LIST
ITEM
P/N DESCRIPTION
QTY.
1
5028 Plug, Pigtail
1
2
5096 Rectifier, Diode
1
3 5084
Sleeve (insulator)
1
4
5030 Switch
1 ■
5
5083
Harness 1
6
5082
Harness Assembly (complete)
1
7
5441
Brush Kit
1
8
5090
Insulator
1
‘9
5092
End Bell, Brush (End bells offered
as set only)
1
10
5075
Bearing, Self Align
2
11
5098 Felt Oiler Washer
2
12
5097 Retainer, Bearing
2
13
5100 Washer, Thrust
as needed
14
5135
Retaining Ring
1
15
5089 Armature
1
16
5091
Field Assembly
1
*17
5092
End Bell, Output (offered
as set only)
1
18
5099
Screw, Pan Hd., 10x32x316" 2
19
5086
Shaft Insulator
1
20
5088
Motor Assembly (complete)
1
*
5092
End Bell Set (without bearings)
*
5161 End Bell Set (complete)
14
