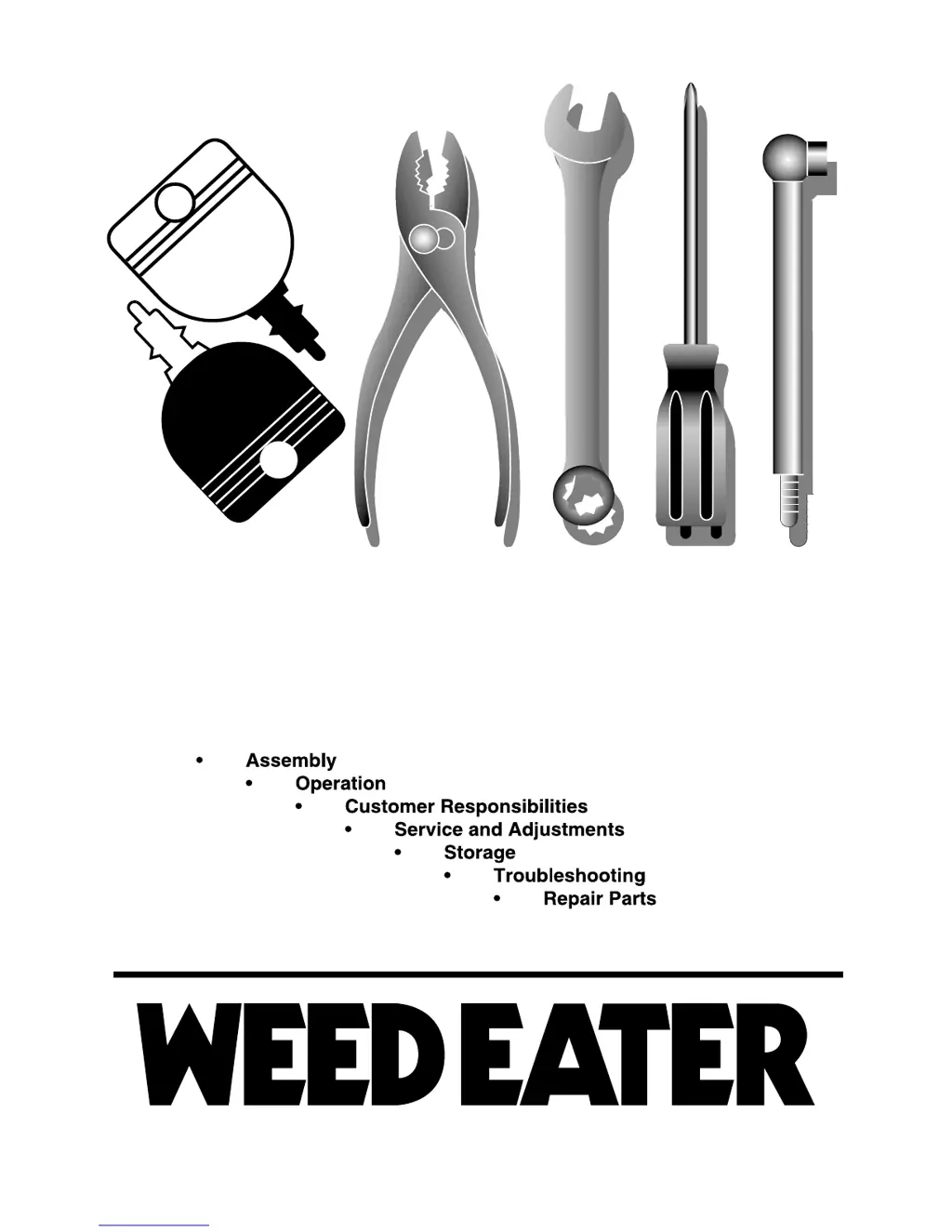

OWNER'S MANUAL
MODEL NO. WE12538H
12.5 HP 38 Inch
Lawn Tractor
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
176840 10.30.00 JH
PRINTED IN U.S.A.
®

Table of Contents

Questions and Answers

  • K
    Kelly CooleyAug 17, 2025
    How to fix Weed Eater WE12538H Lawn Mower that is hard to start?
    • C
      carolnelsonAug 17, 2025
      If your Weed Eater Lawn Mower is hard to start, several factors could be the cause. It might be due to a dirty air filter (clean or replace it), a bad spark plug (replace it), or a weak or dead battery (recharge or replace it). Other potential causes include a dirty fuel filter (replace it), stale or dirty fuel (drain and refill with fresh gasoline), or loose or damaged wiring (check all wiring).
  • F
    Frank RochaAug 20, 2025
    What to do if Weed Eater WE12538H engine clicks but will not start?
    • R
      Ryan GarciaAug 20, 2025
      If your Weed Eater Lawn Mower engine clicks but won't start, the issue could stem from a weak or dead battery (recharge or replace it), corroded battery terminals (clean them), loose or damaged wiring (check all wiring), or a faulty solenoid or starter (check/replace).
  • M
    Miguel ValdezAug 22, 2025
    What to do if my Weed Eater WE12538H Lawn Mower engine will not turn over?
    • D
      douglas14Aug 23, 2025
      There are several reasons why your Weed Eater Lawn Mower engine might not turn over. Ensure the clutch/brake pedal is depressed and the attachment clutch is disengaged. A weak or dead battery could also be the culprit, so recharge or replace it. Check for a blown fuse and replace it if necessary. Clean any corroded battery terminals and inspect all wiring for looseness or damage. Finally, the ignition switch, solenoid, or starter might be faulty and need checking or replacement.
  • J
    John BatesAug 28, 2025
    How to fix Weed Eater WE12538H poor and uneven cut?
    • A
      Austin BridgesAug 28, 2025
      If your Weed Eater Lawn Mower is producing a poor, uneven cut, it could be due to a worn, bent, or loose blade (replace the blade and tighten the blade bolt). Another cause might be that the mower deck isn't level (level the mower deck). Also, check for any buildup of grass, leaves, and trash under the mower (clean the underside of the mower housing). A bent blade mandrel (replace the blade mandrel) or clogged mower deck vent holes (clean around mandrels to open vent holes) could also be the cause.
  • K
    Kevin GrossAug 31, 2025
    What causes Weed Eater WE12538H Lawn Mower blades to not rotate?
    • D
      David RamseyAug 31, 2025
      If your Weed Eater Lawn Mower blades won't rotate, there might be an obstruction in the clutch mechanism (remove the obstruction). It could also be due to a worn or damaged mower drive belt (replace the mower drive belt), a frozen idler pulley (replace the idler pulley), or a frozen blade mandrel (replace the blade mandrel).
  • J
    John BarnesSep 3, 2025
    Why my Weed Eater WE12538H has excessive vibration?
    • J
      Jessica DiazSep 3, 2025
      If your Weed Eater Lawn Mower is experiencing excessive vibration, it could be due to a worn, bent, or loose blade (replace the blade and tighten the blade bolt). A bent blade mandrel (replace the blade mandrel) or loose/damaged parts (tighten loose parts and replace damaged parts) could also cause this issue.
  • Q
    qleonardSep 5, 2025
    How to improve Weed Eater WE12538H poor grass discharge?
    • A
      Adam CastilloSep 5, 2025
      If your Weed Eater Lawn Mower is not discharging grass properly, ensure the engine speed isn't too slow by placing the throttle control in the 'FAST' position. Avoid moving too fast by shifting to a slower speed. Wet grass can also be a factor, so allow the grass to dry before mowing. Other potential causes include an unlevel mower deck (level it), low or uneven tire air pressure (check and correct), a worn, bent, or loose blade (replace/sharpen and tighten), buildup of debris under the mower (clean it), a worn mower drive belt (replace it), improperly installed blades (reinstall with the sharp edge down), using improper blades (replace with the correct ones), or clogged mower deck vent holes (clean around the mandrels).
  • S
    Stefanie TrujilloSep 8, 2025
    Why are the headlights not working on my Weed Eater WE12538H?
    • S
      sanchezjoannaSep 8, 2025
      If the headlight(s) on your Weed Eater Lawn Mower aren't working, first ensure the switch is turned 'ON'. If that's not the issue, the bulb(s) may be burned out (replace them). Other potential causes include a faulty light switch (check/replace it), loose or damaged wiring (check the wiring and connections), or a blown fuse (replace the fuse).
  • J
    Joanna JonesSep 12, 2025
    What causes Weed Eater WE12538H Lawn Mower battery to not charge?
    • D
      David LopezSep 12, 2025
      If your Weed Eater Lawn Mower battery isn't charging, it could be due to bad battery cells (replace the battery), poor cable connections (check/clean all connections), a faulty regulator (replace the regulator), or a faulty alternator (replace the alternator).
  • K
    Kerry PetersonSep 13, 2025
    How to prevent Weed Eater WE12538H engine backfires when turning off?
    • M
      Marc BrownSep 13, 2025
      To prevent your Weed Eater Lawn Mower engine from backfiring when turning it off, move the throttle control to the 'SLOW' position and allow it to idle for 30 seconds before stopping the engine.

Summary

Safety Rules for Lawn Tractor Operation

General Operation Safety Guidelines

Follow instructions, allow responsible adults, clear area, stop if people enter.

Slope Operation Safety Precautions

Mow up/down, use slow speed, avoid turns, and do not mow near drop-offs.

Children Safety Precautions

Keep children clear, be alert, look behind when backing, never carry.

Service Safety Guidelines

Handle fuels carefully, keep equipment tight, check safety devices.

Product Specifications

Customer Responsibilities for Tractor Maintenance

Tractor Maintenance and Care

Proper maintenance of tractor, brakes, tires, and operator systems.

Blade and Battery Maintenance

Blade sharpening, battery cleaning, and care for optimal performance.

Engine and Filter Maintenance

Engine oil changes, air filter service, and cleaning of cooling fins.

Fuel Filter and Cleaning Procedures

Replacing fuel filter, inspecting muffler, and general tractor cleaning.

Tractor Assembly Guide

Tools and Initial Unpacking

Tools required and steps for safely unpacking and removing the tractor from its skid.

Steering and Seat Installation

Instructions for assembling the steering wheel and installing the seat.

Final Assembly Checks

Ensuring all assembly steps are complete, tire pressure is correct, and systems are functional.

Tractor Operation Instructions

Understanding Tractor Symbols

Learn the meaning of operational symbols for safe tractor use.

Know Your Tractor Controls

Familiarize with the location and function of all tractor controls and levers.

Basic Driving and Mower Adjustment

Learn to set parking brake, drive, stop, and adjust mower cutting height.

Safe Operation on Hills and Transport

Procedures for operating on slopes, towing, and preparing to start the engine.

Engine Starting and Mowing Tips

Follow starting procedures and use mowing tips for best results.

Service and Adjustments

Mower Deck Service

Instructions for removing, installing, and leveling the mower deck assembly.

Belt Replacement and Brake Adjustment

Procedures for replacing the drive belt and adjusting the brake system.

Wheel, Battery, and Electrical Service

Servicing wheels, battery, headlights, fuses, and wiring.

Hood, Carburetor, and Cable Adjustments

Procedures for hood removal, carburetor adjustment, and throttle cable tuning.

Tractor Storage Procedures

Tractor and Battery Storage Preparation

Steps for cleaning, inspecting, and lubricating the tractor and battery for storage.

Engine Fuel System and Oil Storage

Proper procedures for fuel system storage and engine oil draining.

Troubleshooting Common Issues

Engine Starting and Performance Issues

Diagnosing and correcting common problems like no start, hard start, or loss of power.

Mowing and Electrical Troubleshooting

Addressing issues with cut quality, blade rotation, discharge, and electrical systems.

Repair Parts Identification

Electrical System Parts

Diagrams and lists for electrical components.

Chassis Components

Diagrams and lists for chassis parts.

Drive System Components

Diagrams and lists for drive system components.

Steering System Components

Diagrams and lists for steering system components.

Engine Components

Diagrams and lists for engine components.

Seat, Decals, Wheels & Tires

Parts for seat, decals, wheels, and tires.

Mower Lift System Parts

Diagrams and lists for mower lift system components.

Mower Deck Components

Diagrams and lists for mower deck components.

Product Warranty Information

Product Warranty Terms and Exclusions

Details manufacturer's warranty, limitations, and exclusions for the product.

Power Train Component Warranties

Specific warranty details for power train components and service procedures.

Weed Eater WE12538H Specifications

General IconGeneral
Displacement125 cc
Power SourceGasoline
Deck MaterialSteel
Cutting Width21 inches
Cutting System3-in-1 (mulch, bag, side discharge)
