Weed Eater WET17H42STA - Page 38

38
REPAIR PARTS
TRACTOR - - MODEL NUMBER WET17H42STA

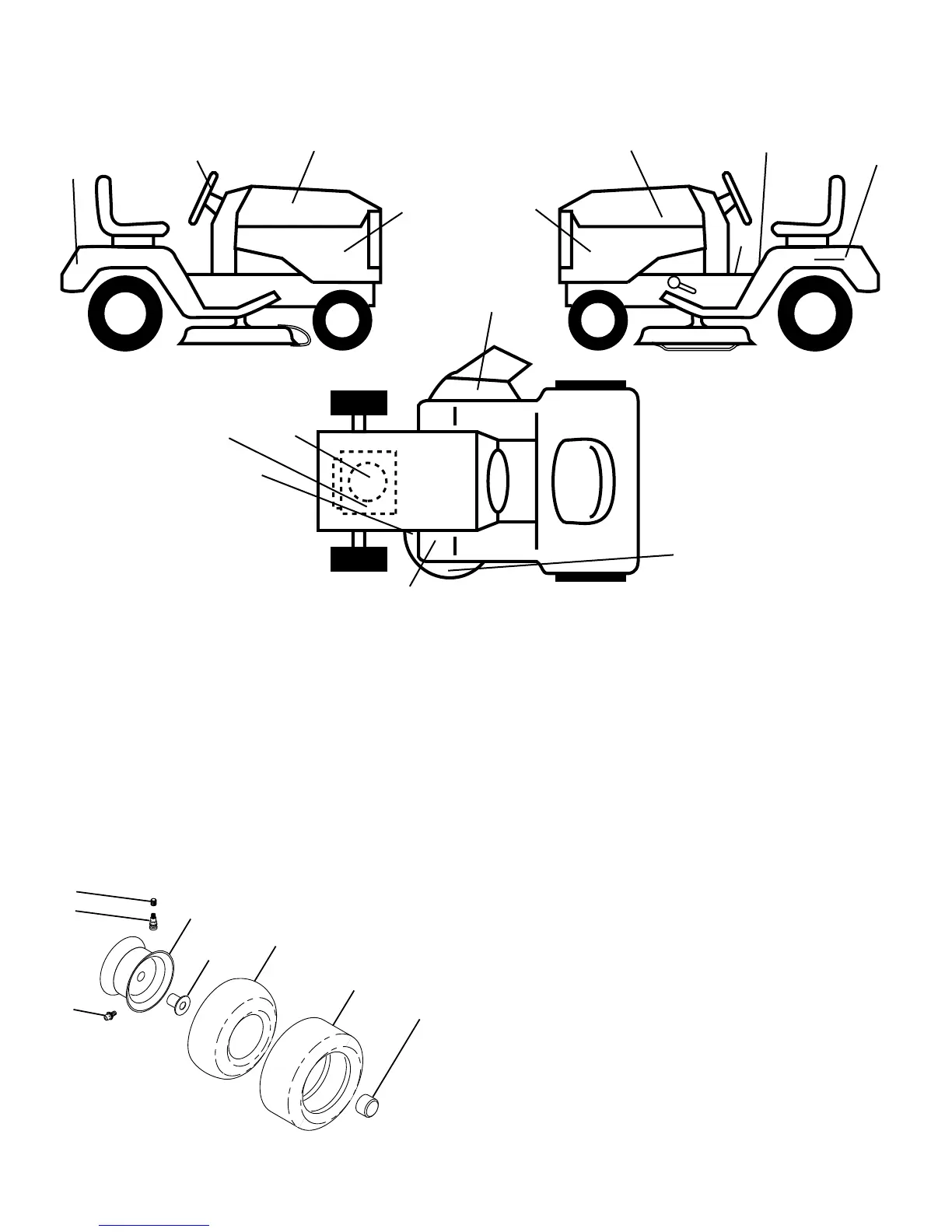

DECALS
5
11
16
6
9
12
3
10
7
14
WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
wheel_1
20
1
4
4
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X624 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X624 Rim Asm 8"rear Service
9 106268X Tire R Ts 18x9.5-8 Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
11 162398 Decal Ins Strg Whl
12 181249 Decal Footrest
14 160396 Decal V-Belt Schematic
16 164578 Decal Hood Rh
20 145005 Decal Bat Dan/Psn
- - 138311 Decal Handle Lft Height Adjust
- - 178392 Decal Chass. Disconnect
- - 186913 Manual Owner's (English)
1 156811 Decal Oper
2 186906 Decal Tec 3 Yr Warranty
3 164579 Decal Hood LH
4 186763 Decal Side Pnl
5 64-1734-29 Decal HP Engine
6 179128 Decal Deck "B" 42"
7 162391 Decal Deck
9 171448 Decal Fender Logo
10 157002 Decal Fender Danger
