22
KEY PART
NO. NO. DESCRIPTION
1 73510500 Nut, Keps 5/16-18
2 10040600 Washer, Lock 3/8
3 73220600 Nut, Hex 3/8-16
4 170127 Shield, Inner, Belt Guard
5 164329 Pin Spirol Flared
6 110111X Lever, Shift
7 72110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 8700J Plate, Shift Indicator
9 86777 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 9484R Clip
11 10040400 Washer, Lock 1/4
12 73220400 Nut, Hex 1/4-20
13 23230506 Screw, Set, Hex 5/16-18 x 3/8
14 156117 Spacer, Split 0.327 x 0.42 x 1.220
15 19111116 Washer 11/32 x 11/16 x 16 Ga.
16 145102 Sheave, Transmission
19 12000028 Ring, Retainer
21 110652X Spacer, Split 0.327 x 0.42 x 2.09
22 74770508 Bolt Hex 5/16-24 x 1/2
23 102190X Tire
183122X624 Rim
795R Tire Valve
KEY PART
NO. NO. DESCRIPTION
24 126875X Rivet, Drilled
25 4497H Clip, Hairpin
26 165501X550 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102384X Bolt, Hex 5/16-16 x 12
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 x 1
34 102383X Counterweight, L. H.
35 74760524 Bolt, Hex 5/16-18 x 1-1/2
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38 74760544 Bolt, Hex 5/16-18 x 2-3/4
39 140062 Cap, Plunger
40 170488 Screw, Hex Wsh Slt #10-24 x .50
44 73800500 Nut, Lock 5/16-18
65 73970500 Nut, Lock Hex Flange
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

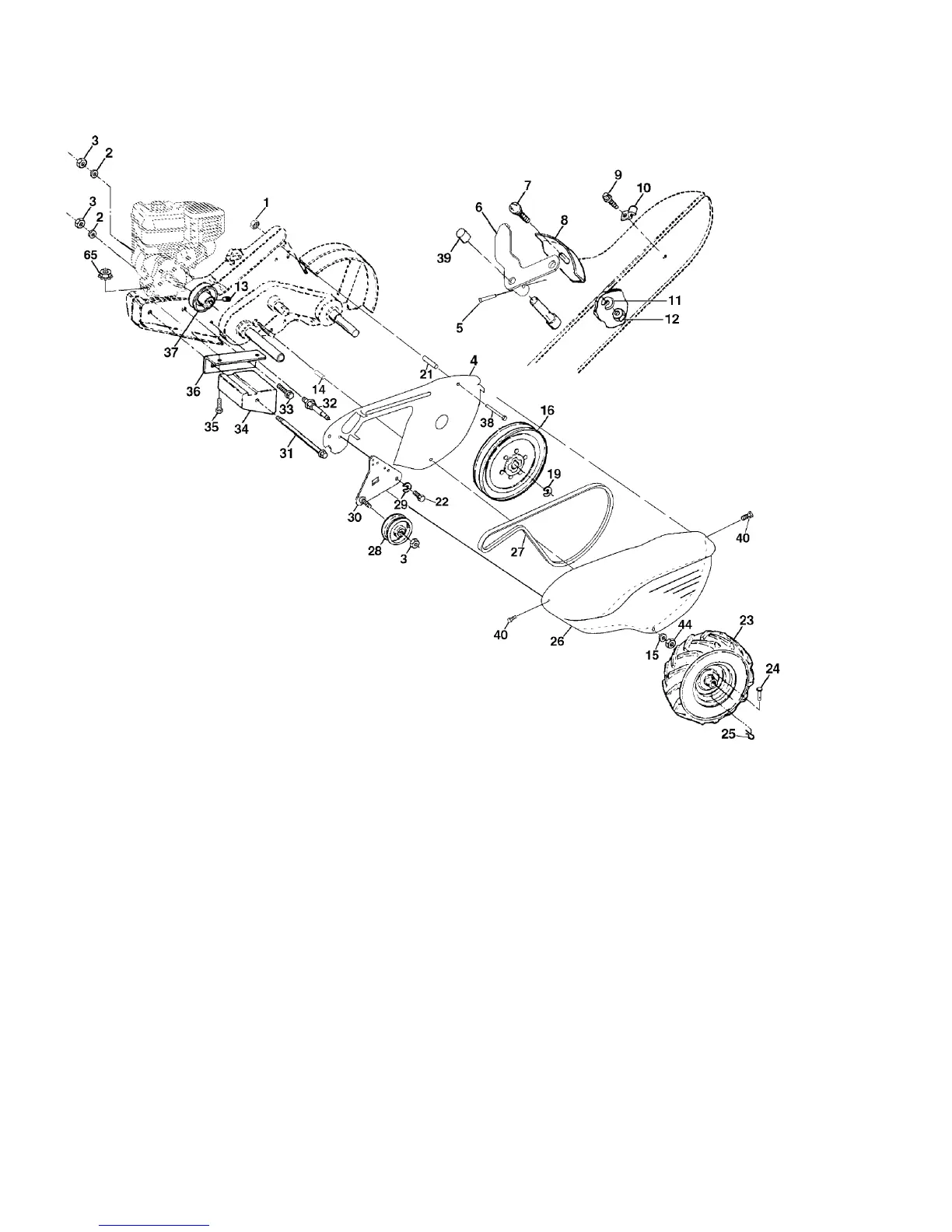

REPAIR PARTS
TILLER - - MODEL NUMBER WET6500A
MAINFRAME, LEFT SIDE
