Weed Eater WET6500A - Page 23

23
5
10
7
8
9
11
1
2
13
15
14
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
5 102332X Bracket, Reinforcement
7 102173X Counter Weight, R.H.
8 10040600 Washer, Lock 3/8
9 73220600 Nut, Hex 3/8-16
10 74760524 Bolt, Hex 5/16-18 x 1-1/2
11 4497H Clip, Hair pin
12 126875X Rivet, Drilled
13 102190X Tire
183122X624 Rim
795R Tire Valve
14 73970500 Nut, Hex Flange
15 - - - - - - - Engine, Tec Model No. OHH65
(Order parts from engine Manufac-
turer)

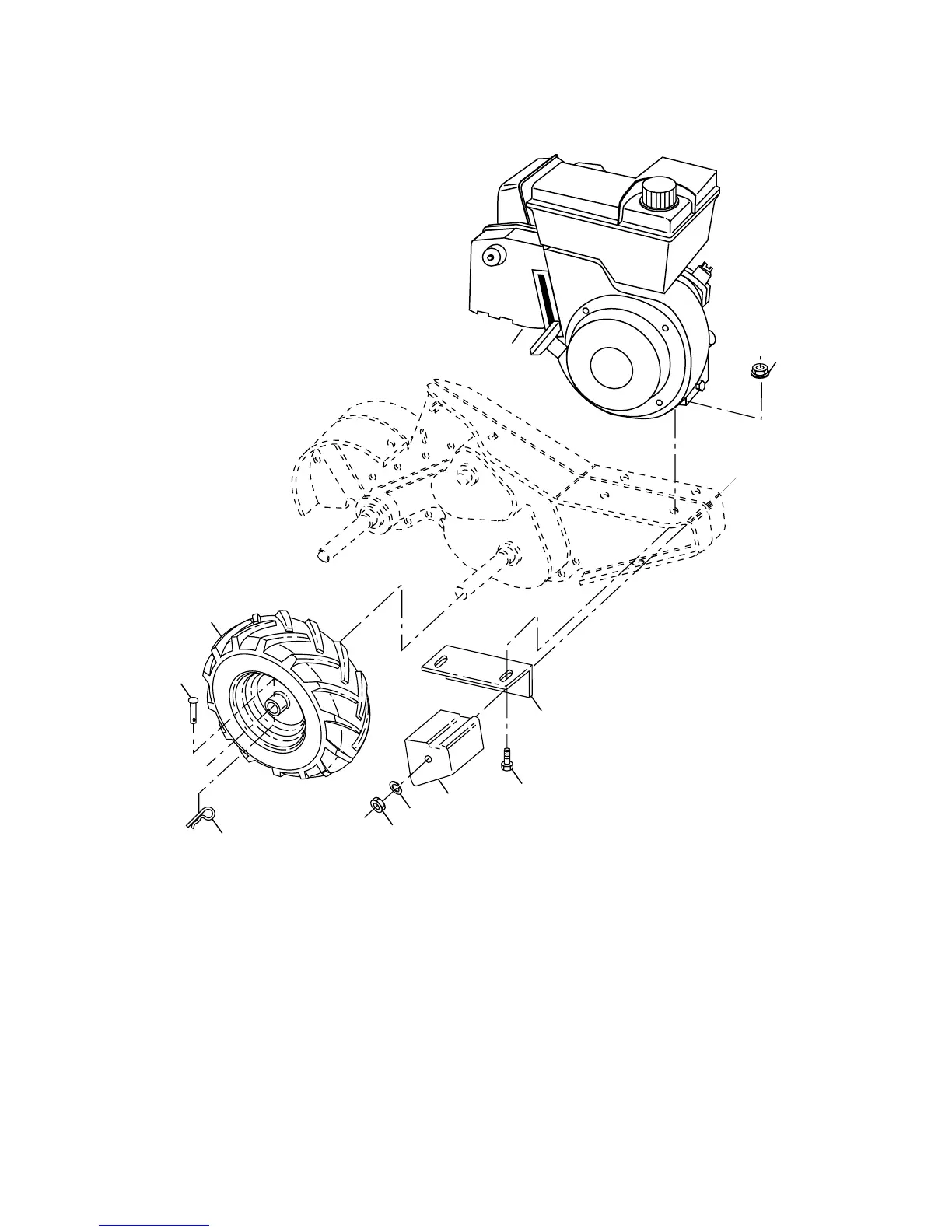

REPAIR PARTS
TILLER - - MODEL NUMBER WET6500A
MAINFRAME, RIGHT SIDE
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
