Weed Eater WET6500A - Page 25

25
KEY PART
NO. NO. DESCRIPTION
2
29
29
15
1
11
11
12
12
13
14
14
24
23
26
27
11
12
16
11
12
25
33
32
16
3
4
7
8
9
5
23
23
28
24
18
6
5
5
12
11
10
tine_shield_13_in(sears)
22
21
20
19
1
KEY PART
NO. NO. DESCRIPTION
1 73900500 Nut, Flange 5/16-18
2 161415X550 Shield, Side, Outer L. H.
3 8393J Pin, Stake, Depth
4 12000035 Ring, Klip
5 180847 Bolt, Carriage 5/16-18 x 3/4
6 8394J Spring
7 8392J Bracket, Latch
8 109230X Spring, Depth Stake
9 102326X550 Shield, Tine
10 72140508 Bolt 5/16-18 x 1
11 73220500 Nut, Hex 5/16-18
12 10040500 Washer, Lock 5/16
13 72110510 Bolt, Carriage 5/16-18 x 1-1/4
14 124343X Bracket, Shield Tine
15 161414X550 Shield, Side, Outer R.H.
16 73900400 Nut, Hex Flange 1/4-20 Unc
18 72040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
19 102701X Grip
20 73220600 Nut, Hex 3/8-16
21 102156X Stake, Depth
22 74930632 Bolt, Hex 3/8-16 x 2
23 4440J Hinge
24 72140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25 6712J Cap, Vinyl
26 109227X Pad, Idler
27 102695X550 Shield, Leveling
28 120588X Pin, Hinge
29 104085X550 Shield, Side
32 73220400 Nut Fin Hex 1/4-20 Unc
33 10040400 Washer Lock Hvy Helical 1/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

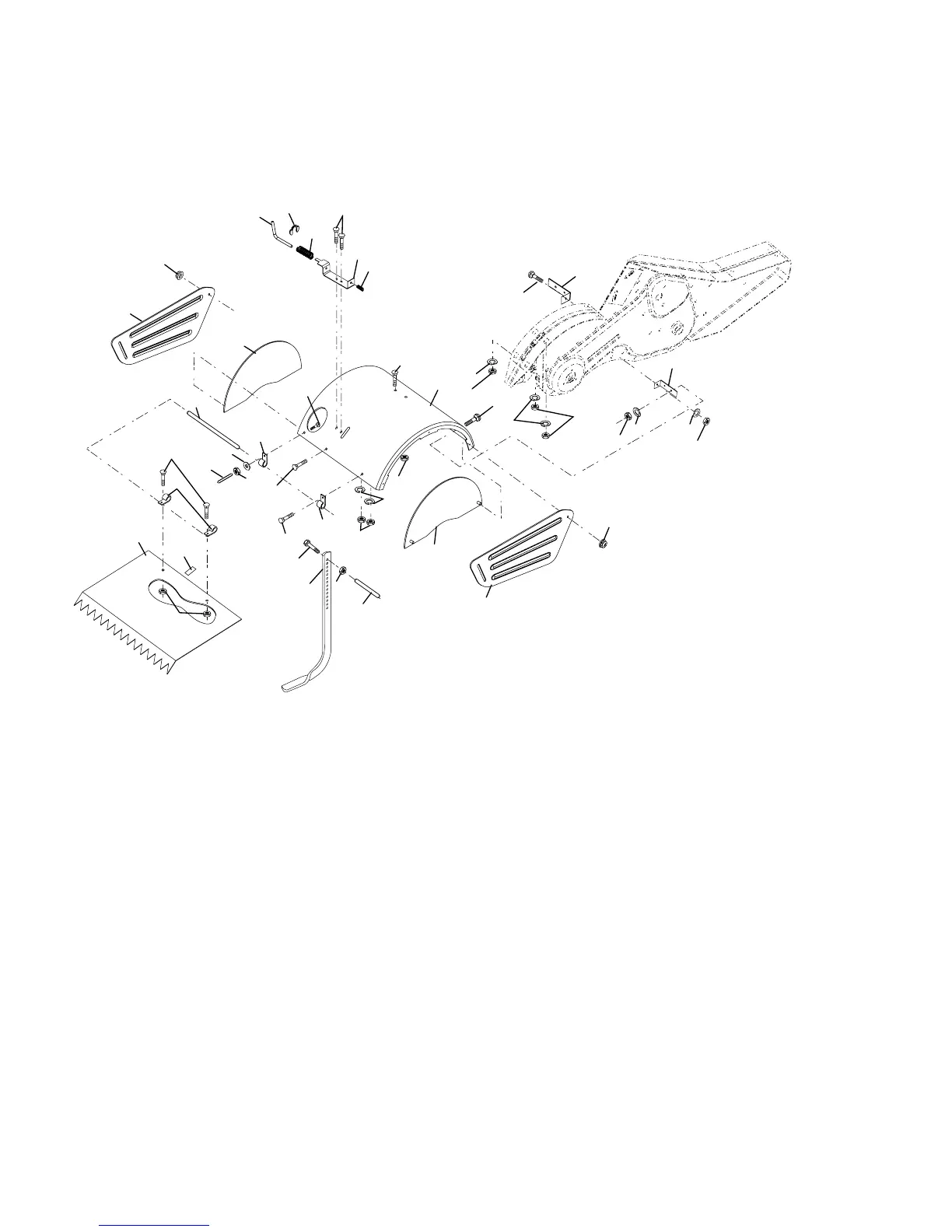

REPAIR PARTS
TILLER - - MODEL NUMBER WET6500A
TINE SHIELD
