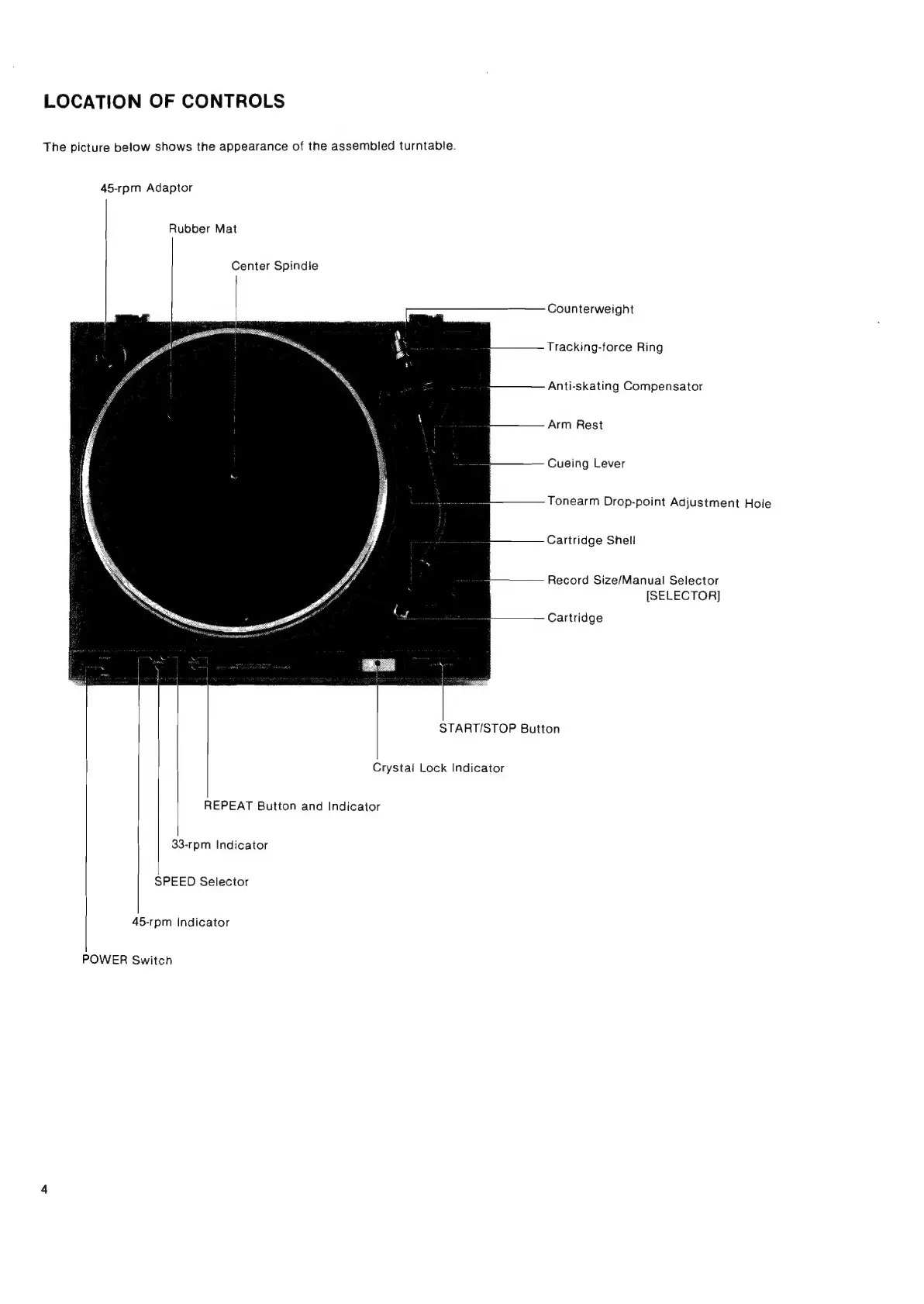

LOCATION
OF
CONTROLS
The
below
shows
the
appearance
of
the
assembled
turntabie.
45-rpm
Adaptor
Rubber
Mat
Center
Spindie
Counterweight
Tracking-force
Ring
Anti-skating
Compensator
Arm
Rest
Cueing
Lever
Tonearm
Drop-point
Adjustment
Hole
Cartridge
Shell
Record
Size/Manual
Selector
[SELECTOR]
Cartridge
START/STOP
Button
Crystal
Lock
Indicator
REPEAT
Button
and
Indicator
33-rpm
Indicator
SPEED
Selector
45-rpm
Indicator
POWER
Switch
