ASSEMBLY
Carefully read these instructions and this manual in its entirety, before you attempt to operate your new vacuum.
IMPORTANT: THIS LEAF VACUUM IS DELIVERED WITHOUT OIL OR PETROL IN THE ENGINE.
Your new vacuum is shipped from the factory in one carton, and which has been pre-assembled at the factory,with the
exception of those parts such as nozzle, hose left unassembled for shipping purposes.
All parts such as nuts, washers, bolts, etc. necessary to complete the assembly have been attached on the machine.
To assure safe and proper operation of your vacuum, all parts and hardware you assemble must be tightened securely.
Use the correct tools needed to assure proper tightening.
I UNPACKING INSTRUCTIONS
WARNING: To prevent personal injury or property damage, do not attempt to start the engine until all assembly steps are
Complete and you have read and understand the safety controls and operating instructions in this manual.
Please carefully follow these assembly steps to properly prepare your machine for use.
We recommend that you read this Section in it's entirely before beginning assembly.
When unpacking the machine, inspect for shipping damage or missing parts,
if you find any damage, or if parts are missing, notify the WEIBANG Dealer who sold you the machine.
Active Wrench / Motor Oil
INTRODUCTION
INSPECTION AFTER DELIVERY
TOOLS/MATERIALS NEEDED:

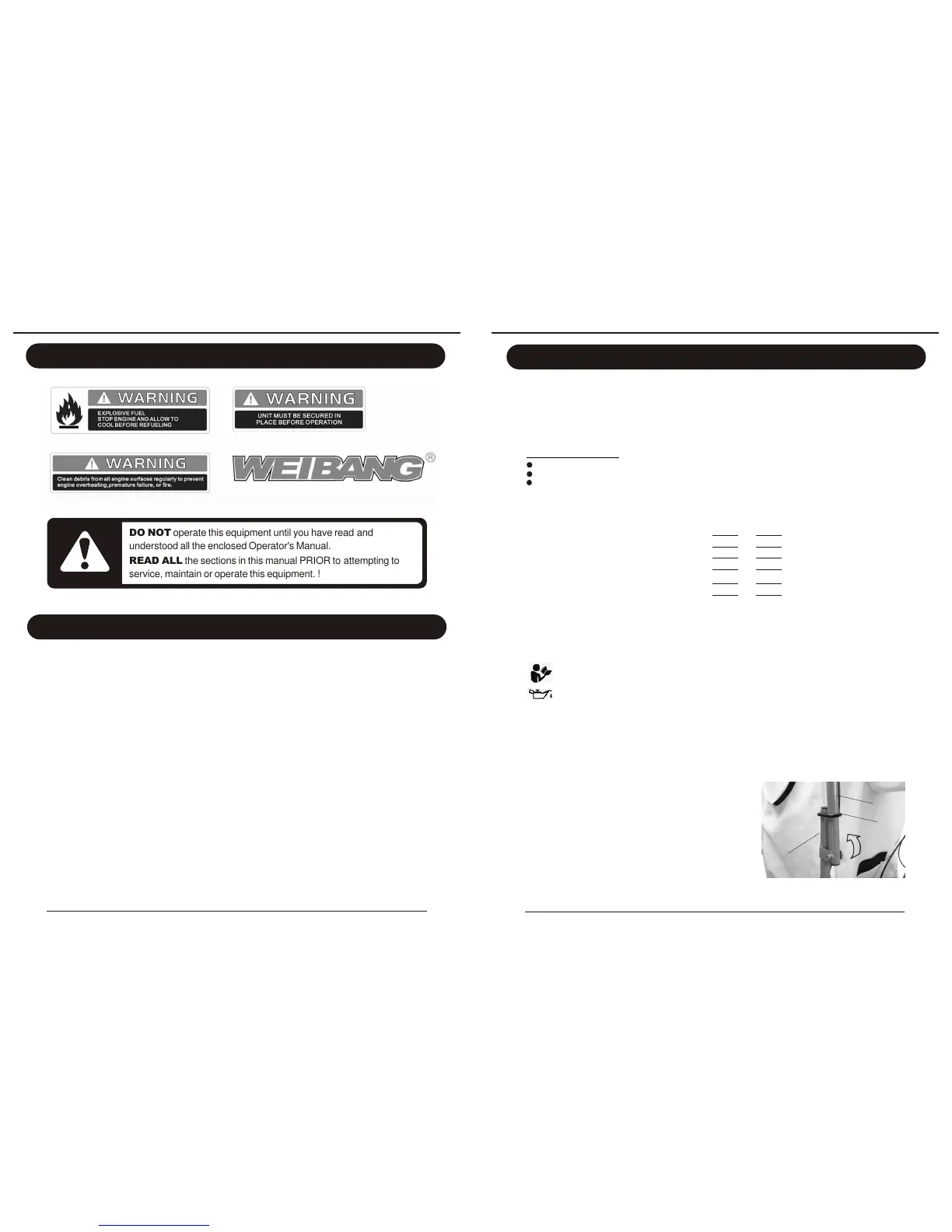

EXPLOSIVE FUEL: Qty Required=1
PART No.XYJLP030
ENGINE OVERHEAT: Qty Required=1
PART No.XYJLP040
WARNING SECURE: Qty Required=1
PART No.XYJLP060
DO NOT operate this equipment until you have read and
understood all the enclosed Operator's Manual.
READ ALL the sections in this manual PRIOR to attempting to
service, maintain or operate this equipment. !
LOGO: Qty Required=1
PART No.L0401040
5
INSTRUCTION LABELS CONT D...
,
PUT OIL IN ENGINE BEFORE STARTING
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box.
PACKING CHECKLIST
Prior to setting up the leaf vacuum, check that the following items are enclosed:
Item Quantity Check if enclosed
If any of these items are missing, please contact local dealer and ask for the Service Department at once.
WBLV506 Leaf vacuum 1
WBLV506 Nozzle B with handle 1
WBLV506 Leaf vacuum Operator s manual 1
Engine Operator s manual 1
Yes No
Yes No
Yes No
Yes No
DO NOT ATTEMPT ASSEMBLY OR OPERATION WITHOUT ANY OF THESE LISTED PARTS!
All WEIBANG parts are guaranteed by a thirty (30) day warranty against any manufacturer’s defects in workmanship
and material. Consult Warranty page in the Operator’s Manual for further details on our Warranty Policy.
6
ASSEMBLY CONT D...
,
3 Lift off the machine from pallet brackets and remove it from the wood pallet.
4 Check the box thoroughly and remove additional loose parts included with leaf vacuum.
5 Remove all packing materials.
PACKING CHECKLIST
II HOW TO SET UP YOUR LEAF VACUUM
CAUTION: Wear protective gloves during operation of setting up your vacuum.
NOTE: This unit is a ground supported machine, and it should not be mounted to a truck or to a trailer for operation.
1. SECURELY ATTACH exhaust chute to the turbine house with the hardware located on the exhaust chute.
Ｌｏｗｅｒ ｈａｎｄｌｅ
Ｈａｎｄｌｅｂａｒ
Ｌｉｆｔ ｕｐ
(fig
.1)
Ｓｌｉｐｉｎｇ ｒｉｎｇ
Risk of high dead weight
• The machine must not be lifted manually.
• Pull the machine off the transporter by its handles.
• Remove machine parts separately from packaging.
WBLV506 Nozzle A 1
Yes No
WBLV506 Collecting bag 1
Yes No
●
●
●
TURN AND LOCK THE HANDLEBAR
Turn the handlebar toward machine tail until it's lower section is
Move down two slip ring respectively on both sides, until they
When storing the machine, in order to save space, you can
parallel and close together with vertical tube of lower handle.
they lock the handlebar securely.
turn the handlebar back to machine head by pulling up slipping
rings.
UNPACKING STEPS
1 Cut plastic banding. To open the box, remove top plywood panel firstly.
2 Remove all around wall panel. Remove the angle iron securing machine to wood pallet.
