Operation and Maintenance Manual of WP13C Series Diesel Engines
Weichai Power Pursuit of Excellence
- 3 -
ChapterIIInstructiononstructureandsystemsofdiesel
engine

1.Gear train and valve mechanism
1.1
Gear
train
diagram
The
WP13C
series
diesel
engines
adopt
the
rear-mounted
gear
train

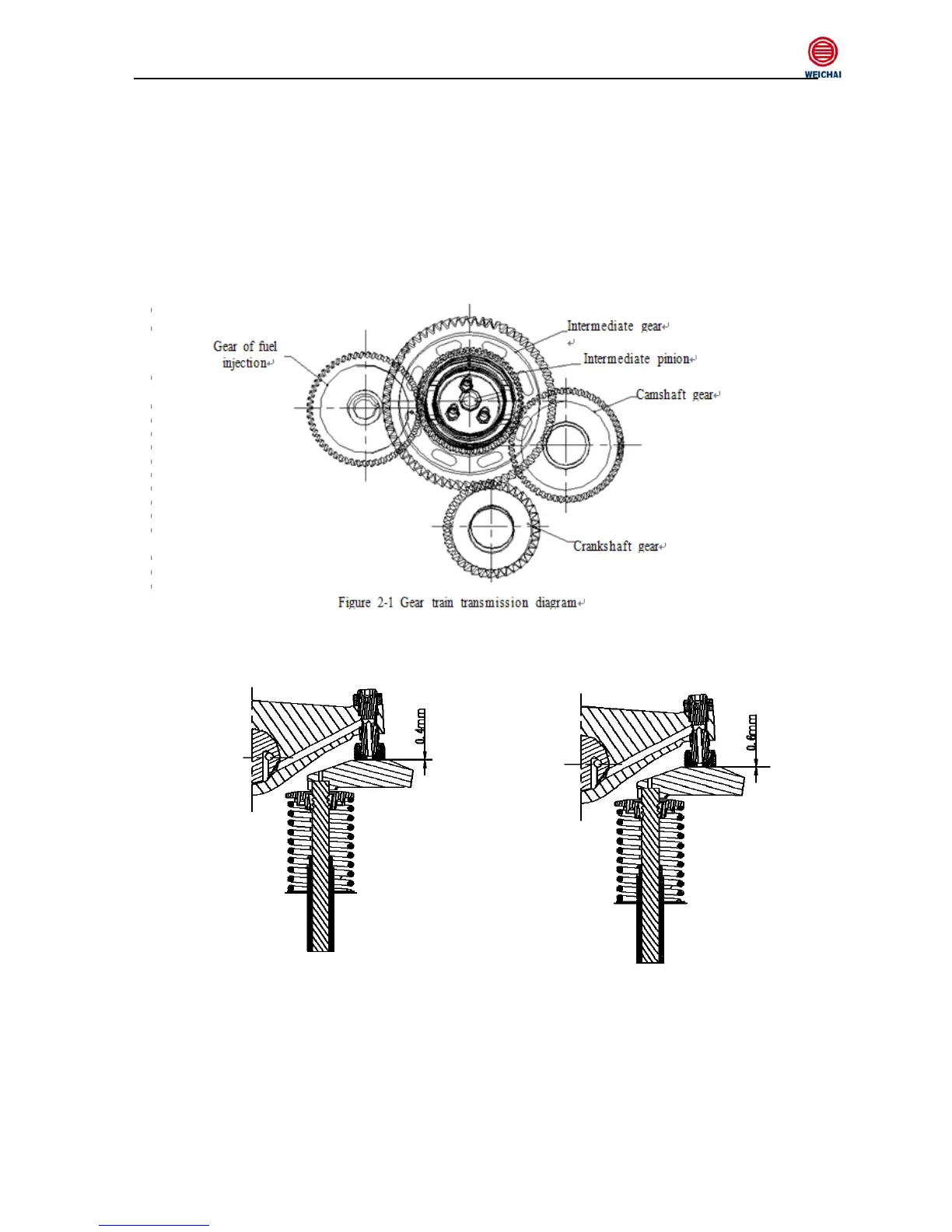

(figure2-1),
in
which
the
gear
chamber and
the
flywheel
housing
are
integrated
in
order
to
reduce
the
gear
noise
and
improve
the
overall
reliability.
1.2
Valve
clearance
adjustment
Fig.2-2
Cold
state
intake
valve
clearance
0.4mm
Fig.2-3
Cold
state
exhaust
valve
clearance
0.6mm
