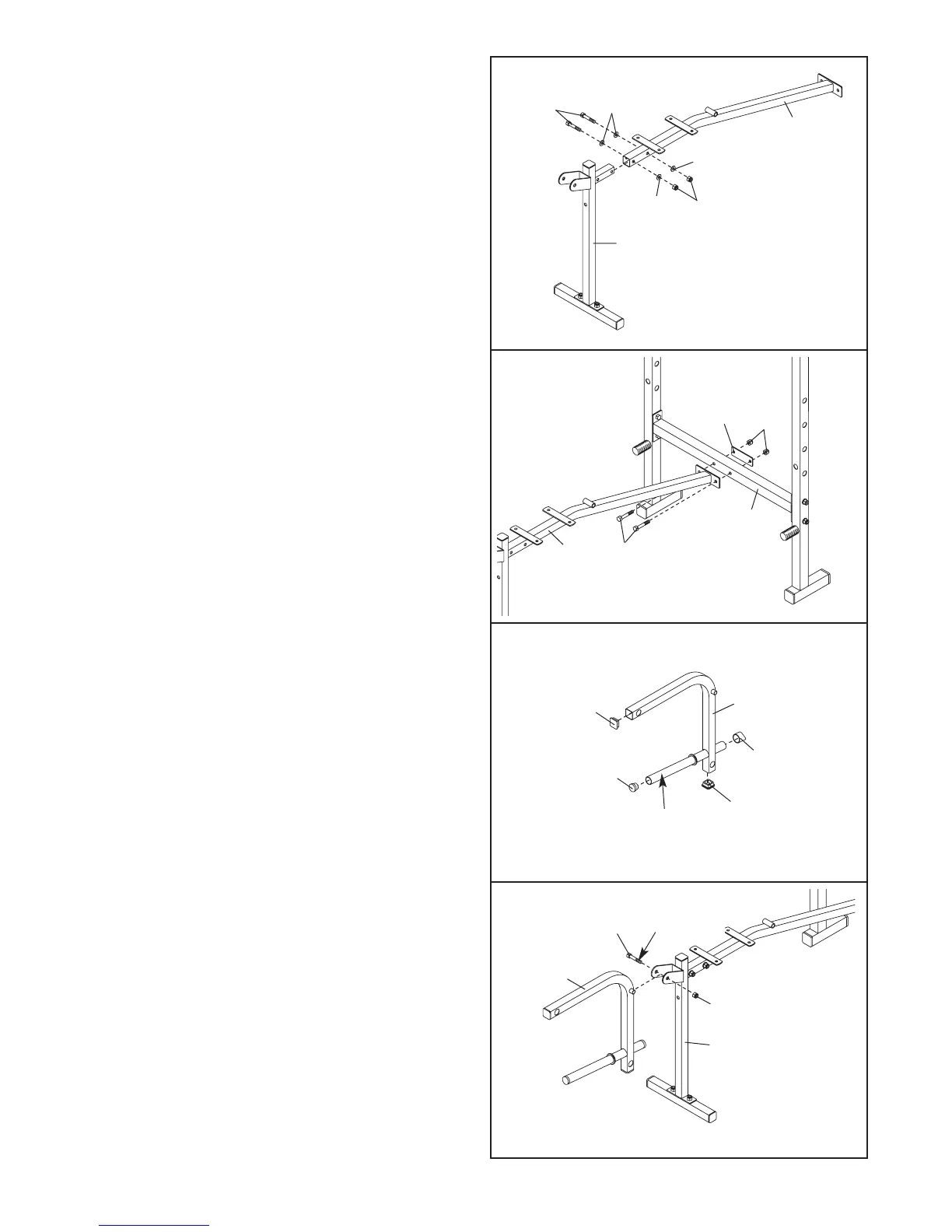

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 43mm Bolts (39), four M8 Washers (16),
and two M8 Nylon Locknuts (17). Note: Do not
tighten the Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18), the Support Plate (38), and
two M8 Nylon Locknuts (17).
Tighten the Nylon Locknuts (17, 33) used in
steps 1–4.
5. Tap two 30mm Square Inner Caps (22) into the
ends of the Leg Lever (4).
Tap a 25mm Round Inner Cap (24) into the indi-
cated end of the weight tube on the Leg Lever
(4). Tap the 25mm Round Angled Cap (20) onto
the other end of the weight tube.
6. Lubricate the M10 x 63mm Bolt (32) with grease.
Attach the Leg Lever (4) to the Front Leg (8) with
the Bolt and an M10 Nylon Locknut (33). Note:
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
3
17
2
39
16
16
8
16
4
2
3
38
17
18
22
24
Weight
Tube
4
20
22
5
33
4
6
Lubricate
32
8
6
