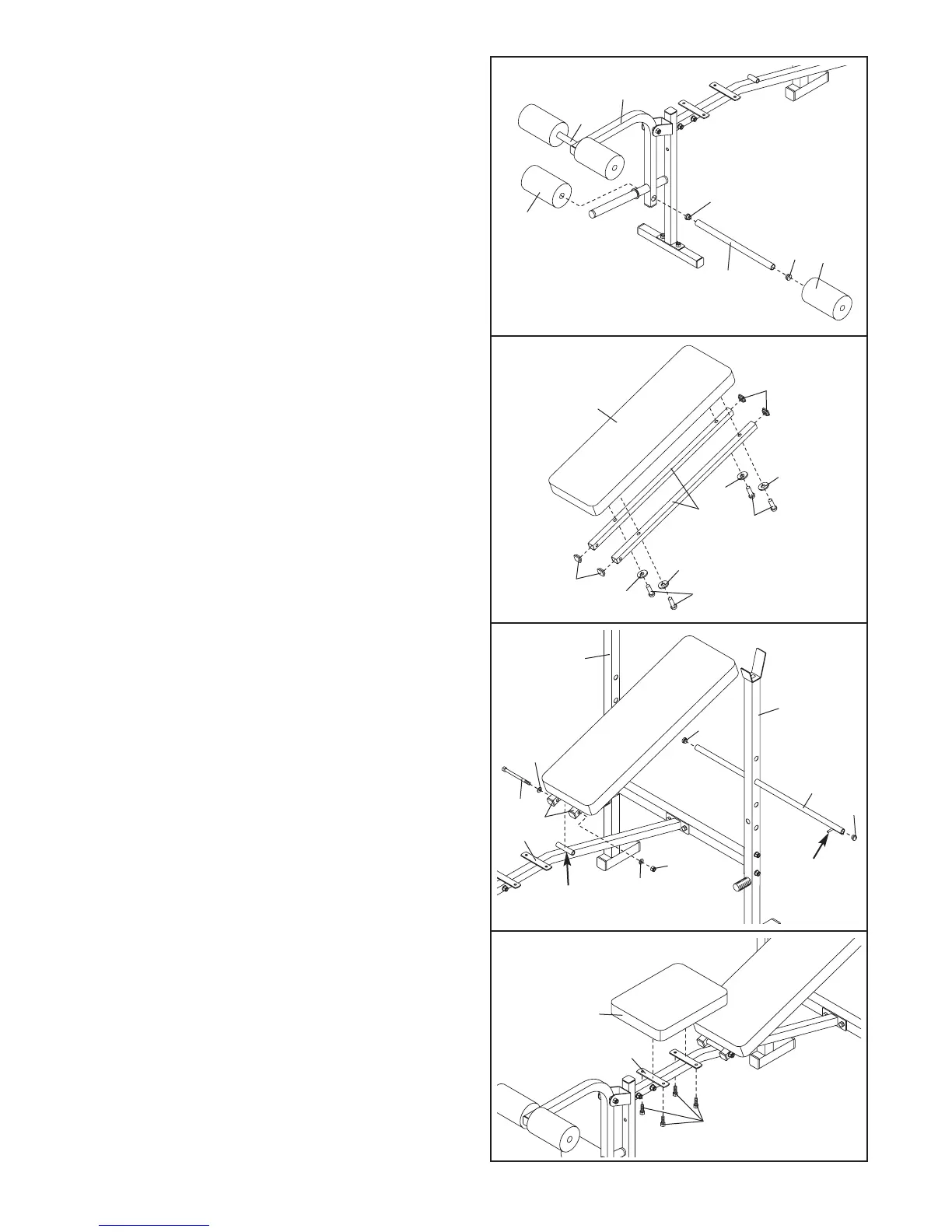

7. Tap two 19mm Round Inner Caps (9) into a Long
Pad Tube (10). Slide the Pad Tube through a hole
in the Leg Lever (4). Slide two Long Foam Pads
(23) onto the Pad Tube.
Repeat this step with the other Long Pad Tube
(10).
8. Tap four 25mm Square Inner Caps (35) into the
ends of the two Backrest Tubes (5).
Attach the Backrest Tubes (5) to the Backrest (6)
with four M6 x 38mm Screws (30) and four M6
Washers (26). Note: Do not tighten the Screws
yet.
9. Tap a 19mm Round Inner Cap (9) into each end
of the Support Rod (7). Insert the Support Rod
through a set of holes in the Uprights (1). Rotate
the Support Rod to the locked position, with the
locking pin wrapped around the Upright.
Lubricate the M10 x 137mm Bolt (36) with
grease. Attach the Backrest Tubes (5) to the
welded tube on the Frame (2) with the Bolt, two
M10 Washers (34), and an M10 Nylon Locknut
(33).
Tighten the M6 x 38mm Screws (30) used in
step 8.
10. Attach the Seat (11) to the brackets on the Frame
(2) with four M6 x 16mm Screws (29).
9
10
10
9
4
23
23
7
7
8
5
30
26
26
26
26
30
6
35
35
9
9
9
34
5
36
7
1
2
Welded
Tube
1
Locking
Pin
33
34
10
11
29
2
To Next Page
