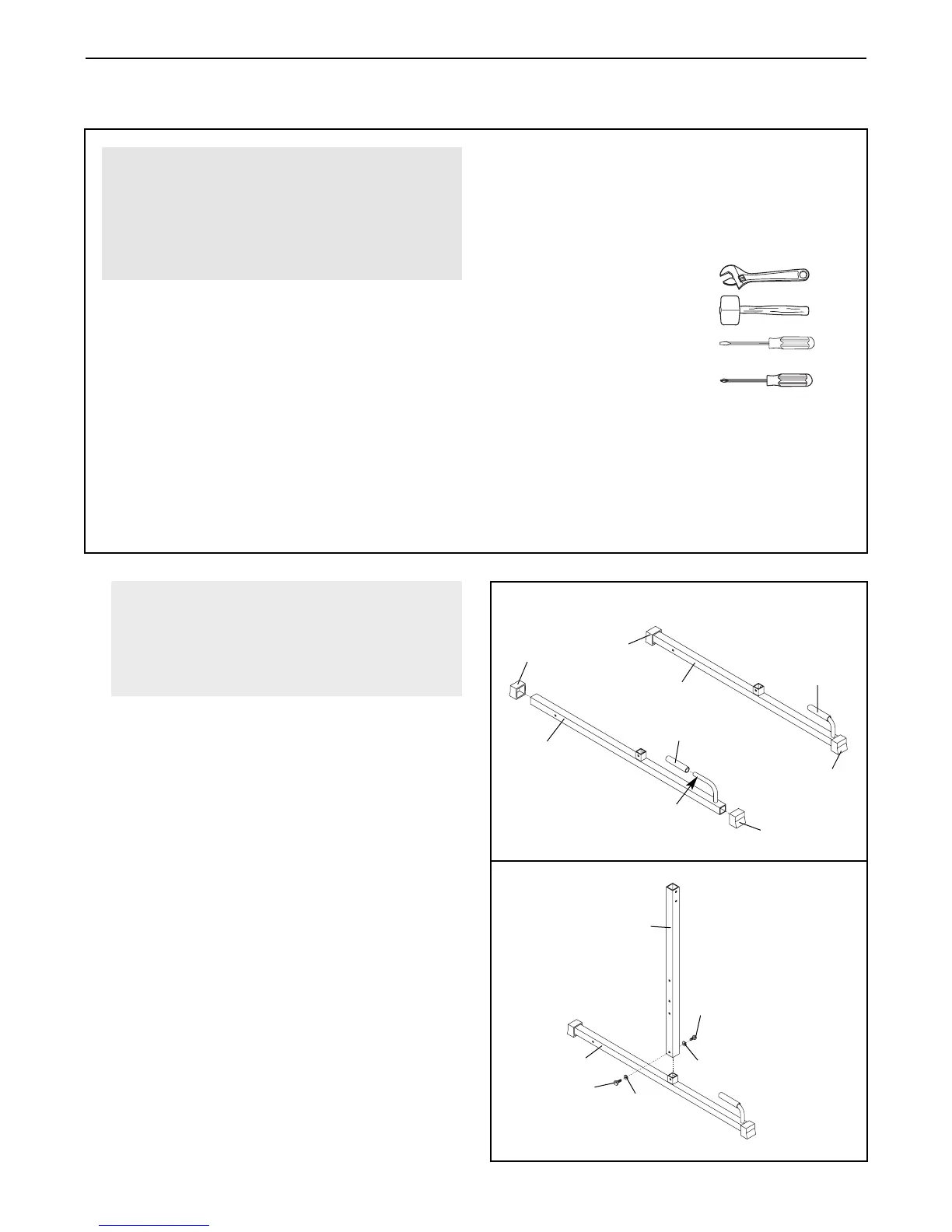

1.
Press an Endcap (11) onto each end of the two
Stabilizers (5). Slide a Handgrip (12) onto the
handle of each Stabilizer.
6
Before beginning assembly, make sure you
understand the information in the box
above. Important: Some of the parts
described in the assembly steps may be
pre-assembled.
1
11
11
11
11
12
12
5
Handle
5
2. Attach an Upright Base (3) to a Stabilizer (5) with
two 3/8” x 3/4” Bolts (22) and two 3/8” Washers
(18). Do not tighten the Bolts yet.
Attach the other Upright Base (3) to the other
Stabilizer (5) in the same manner.
2
3
18
18
5
22
22
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the exercise rack, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• A small amount of soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
This manual is designed to ensure that the
exercise rack can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.
ASSEMBLY
To Next Page
