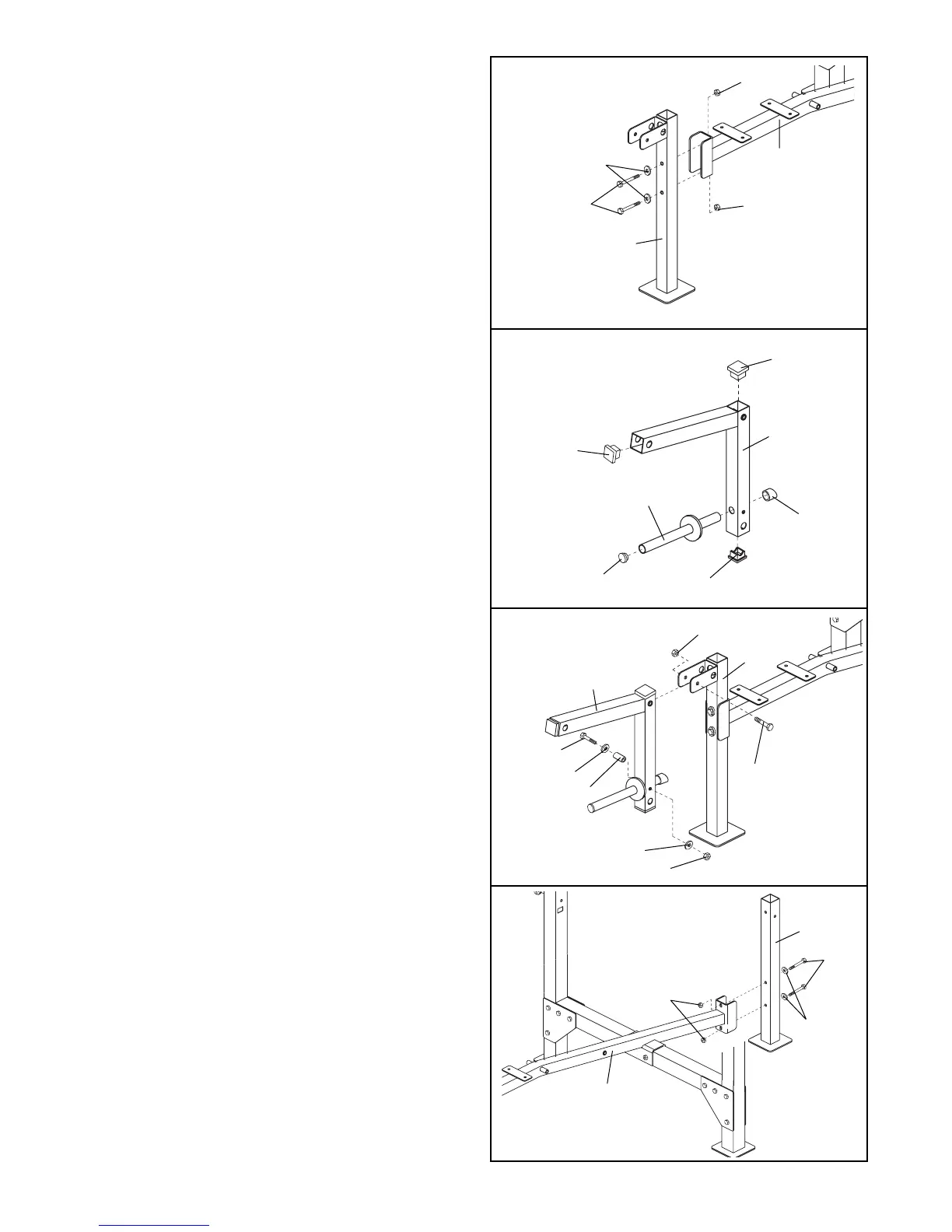

3. Attach the Front Leg (8) to the Frame (2) with two
M10 x 65mm Bolts (18), two M10 Washers (24),
and two M10 Nylon Locknuts (19).
4. Tap three 45mm Square Inner Caps (21) into the
Leg Lever (4).
Tap a 1Ó Round Inner Cap (23) into the indicated
end of the Weight Tube (52).
Insert the Weight Tube (52) into the indicated hole
in the Leg Lever (4). Press a 1Ó Angle Cap (50)
onto the indicated end of the Weight Tube.
5. Lubricate an M10 x 72mm Bolt (53). Attach the
Leg Lever (4) to the Front Leg (8) with the Bolt
and an M10 Nylon Locknut (19). Do not overtight-
en the Nylon Locknut. The Leg Lever must be
able to pivot freely.
Attach the Narrow Spacer (30) to the Leg Lever
(4) with the M8 x 58mm Bolt (49), two M8
Washers (48), and an M8 Nylon Locknut (13).
Note: The Spacer will fit tightly inside the Leg
Lever.
6. Attach the Frame (2) to the Lat Tower Base (35)
with two M10 x 67mm Bolts (14), two M10
Washers (24), and two M10 Nylon Locknuts (19).
7
3
18
24
2
19
8
19
21
21
21
52
4
50
23
4
4
49
19
53ÐLubricate
8
13
48
30
5
35
14
2
19
24
6
48
To Next Page
