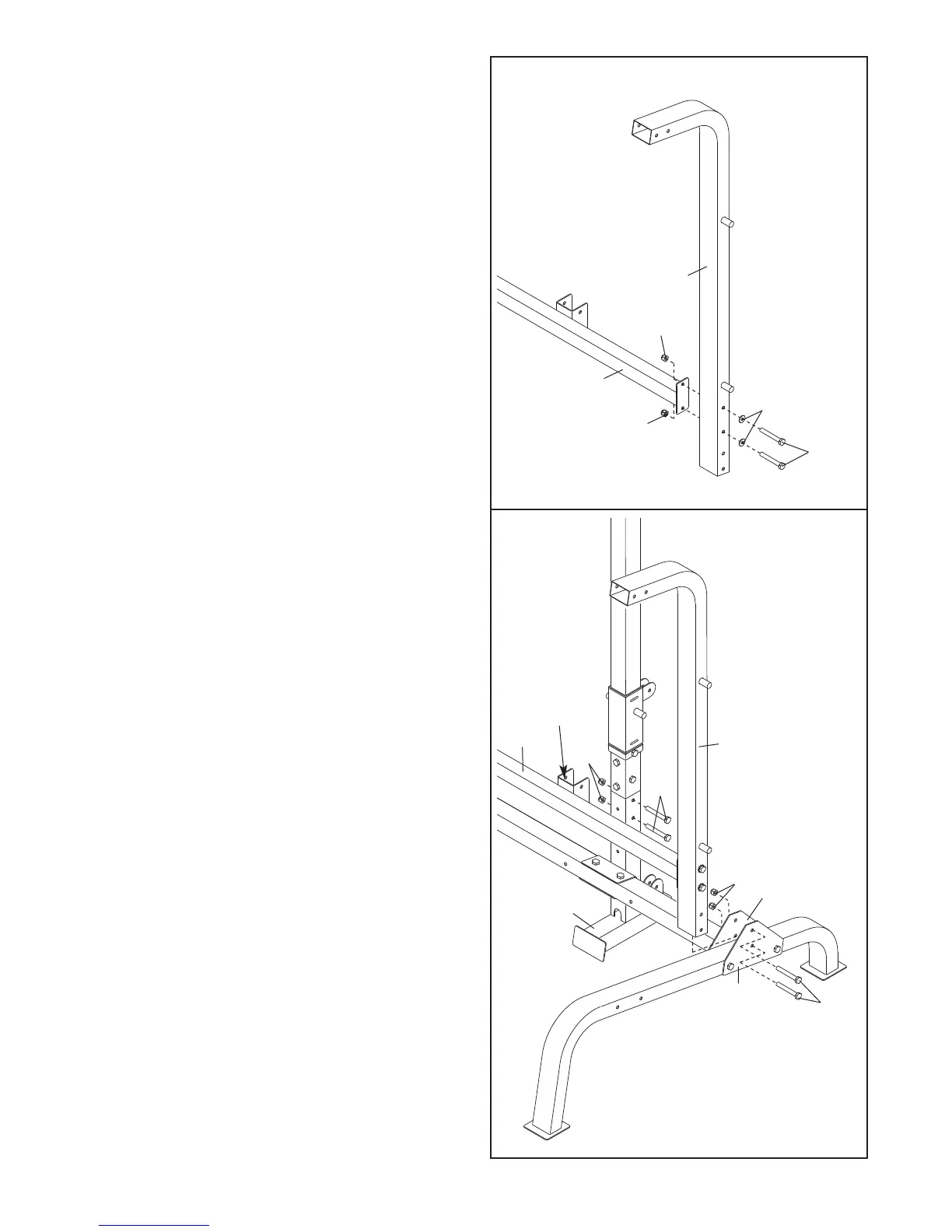

15. Attach the Rear Crossbar (45) to the Left Rear
Upright (46) with two M10 x 94mm Bolts (18), two
M10 W
ashers (74), and two M10 Nylon Locknuts
(32).
Do not tighten the Locknuts yet.
Attach the Rear Crossbar (45) to the Right
Rear Upright (not shown) in the same manner.
16. Attach the bracket on the Rear Crossbar (45) to
the Lat Tower Base (49) with two M10 x 78mm
Bolts (75) and two M10 Nylon Locknuts (32). Do
not tighten the Locknuts yet.
Attach the Left Rear Upright (46) to the Front
Crossbar (43) with two M10 x 94mm Bolts (18),
the Large Joint Plate (41), and two M10 Nylon
Locknuts (32). Do not tighten the Locknuts yet.
Attach the Right Rear Upright (not shown) to
the Front Crossbar (43) in the same manner.
15
16
18
74
32
32
45
46
46
18
41
43
32
32
45
Bracket
49
75
