8

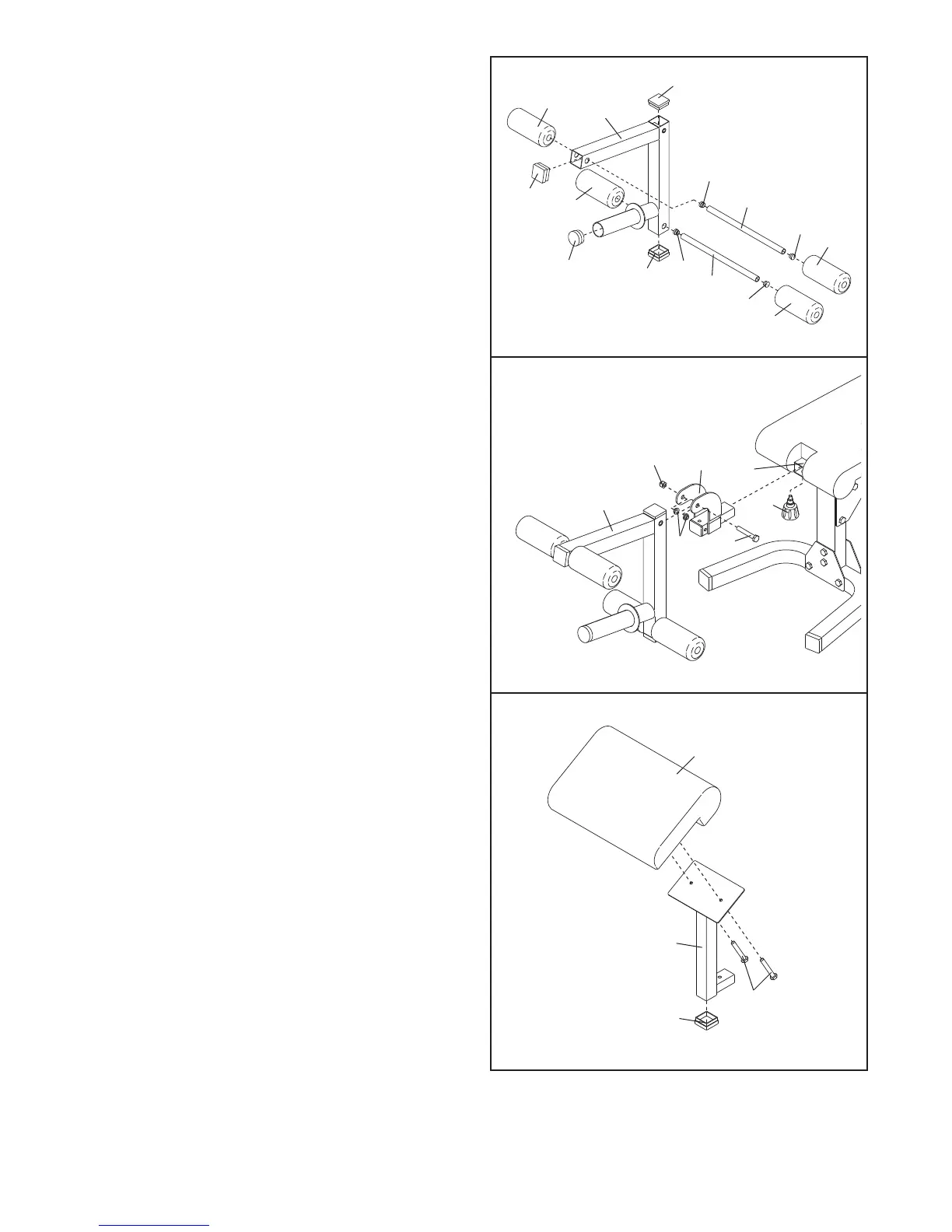

9. Press three 50mm Square Inner Caps (22) into
the Leg Lever (7). Press a 48mm Round Inner
Cap (23) into the tube on the Leg Lever
.
Slide the two Pad
Tubes (16) into the Leg Lever
(7). Slide four Foam Pads (17) onto the ends of
the Pad Tubes. Press four 19mm Round Inner
Caps (19) into the ends of the Pad Tubes.
11. Press a 45mm Square Inner Cap (76) into the
bottom of the Curl Post (12).
Attach the Curl Pad (13) to the Curl Post (12) with
two M6 x 16mm Screws (31).
10. Press two Bushings (34) into the Leg Lever
Bracket (8) from the inside, as shown.
Attach the Leg Lever (7) to the Leg Lever Bracket
(8) with an M10 x 78mm Bolt (75) and an M10
Nylon Locknut (32).
Do not overtighten the
Locknut; the Leg Lever must be able to pivot
easily.
Loosen the Seat Knob (24). Secure the Leg Lever
Bracket (8) in the end of the Seat Frame (5) with
the Knob.
9
10
11
22
17
17
17
17
19
7
22
22
23
19
19
19
7
8
32
24
5
75
34
13
31
12
76
16
16
