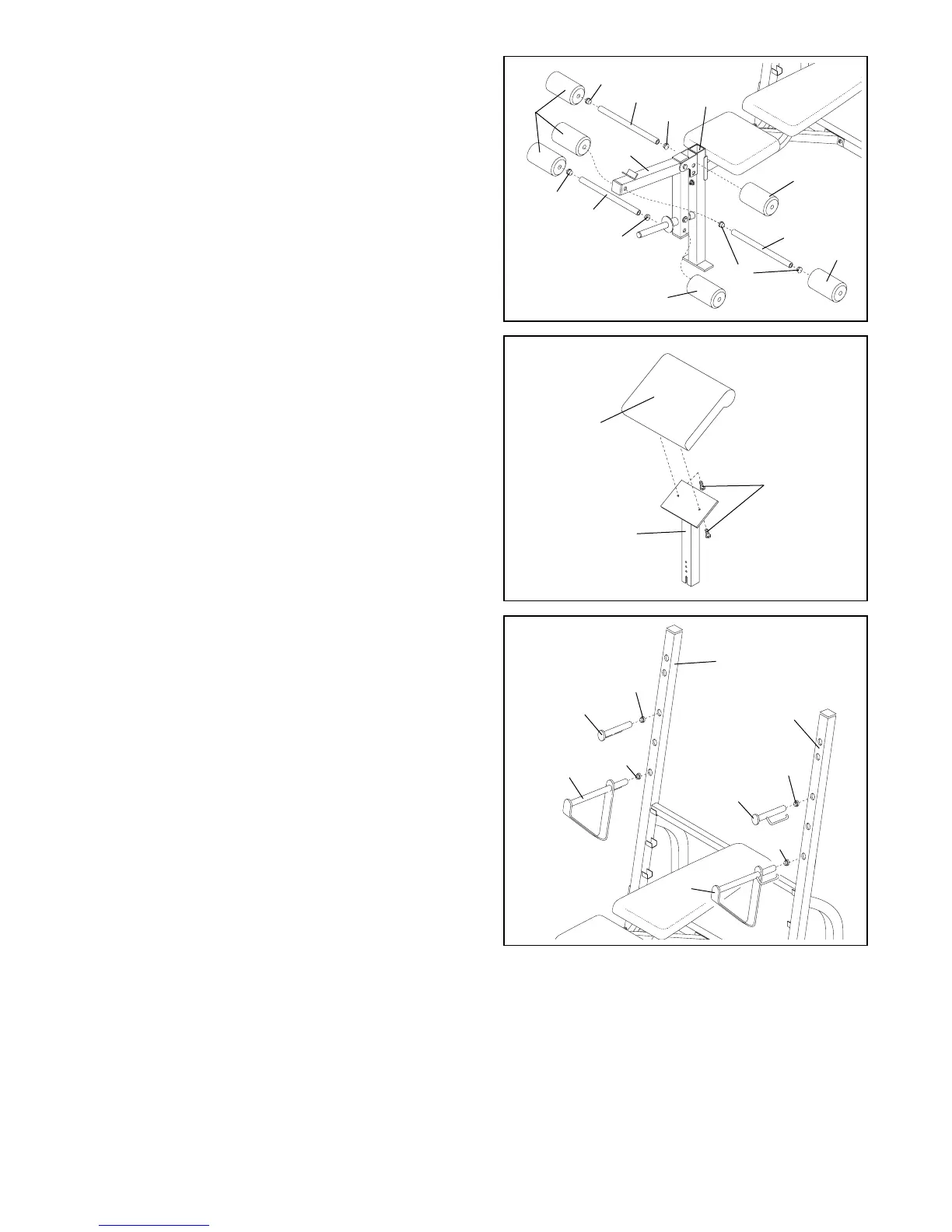

12. Press two 3/4” Round Inner Caps (35) into each of
the three Pad Tubes (38).
Slide a Foam Pad (10) onto one end of each Pad
Tube (38).
Insert the three Pad Tubes (38) into the indicated
holes in the Leg Lever (18) and the bracket on the
Front Leg (19). Slide another Foam Pad (10) onto
each Pad Tube.
12
35
38
35
10
35
10
35
10
19
38
18
38
10
35
13. Attach the Curl Pad (44) to the Curl Post (42) with
two M6 x 16mm Screws (3).
13
42
3
44
14. Press a 1” Round Inner Cap (32) into each Weight
Rest (21, 46) and each Safety Spotter (41, 45).
Insert the Weight Rests (21, 46) into one set of holes
in the Uprights (1, 37). Turn the Weight Rests until
the locking clips are hooked around the Uprights.
Make sure that both Weight Rests are at the same
height.
Insert the Safety Spotters (41, 45) into one set of
adjustment holes in the Uprights (1, 37). Turn the
Safety Spotters until the locking clips are hooked
around the Uprights. Make sure that both Safety
Spotters are at the same height and that they are
a few holes lower than the Weight Rests (21, 46).
14
32
21
41
45
32
32
32
46
1
37
15. Make sure that all parts are properly tightened before you use the weight bench. The use of all
remaining parts will be explained in ADJUSTMENTS, beginning on the next page.
