7
17
11
17
33
25
33
31
11
11

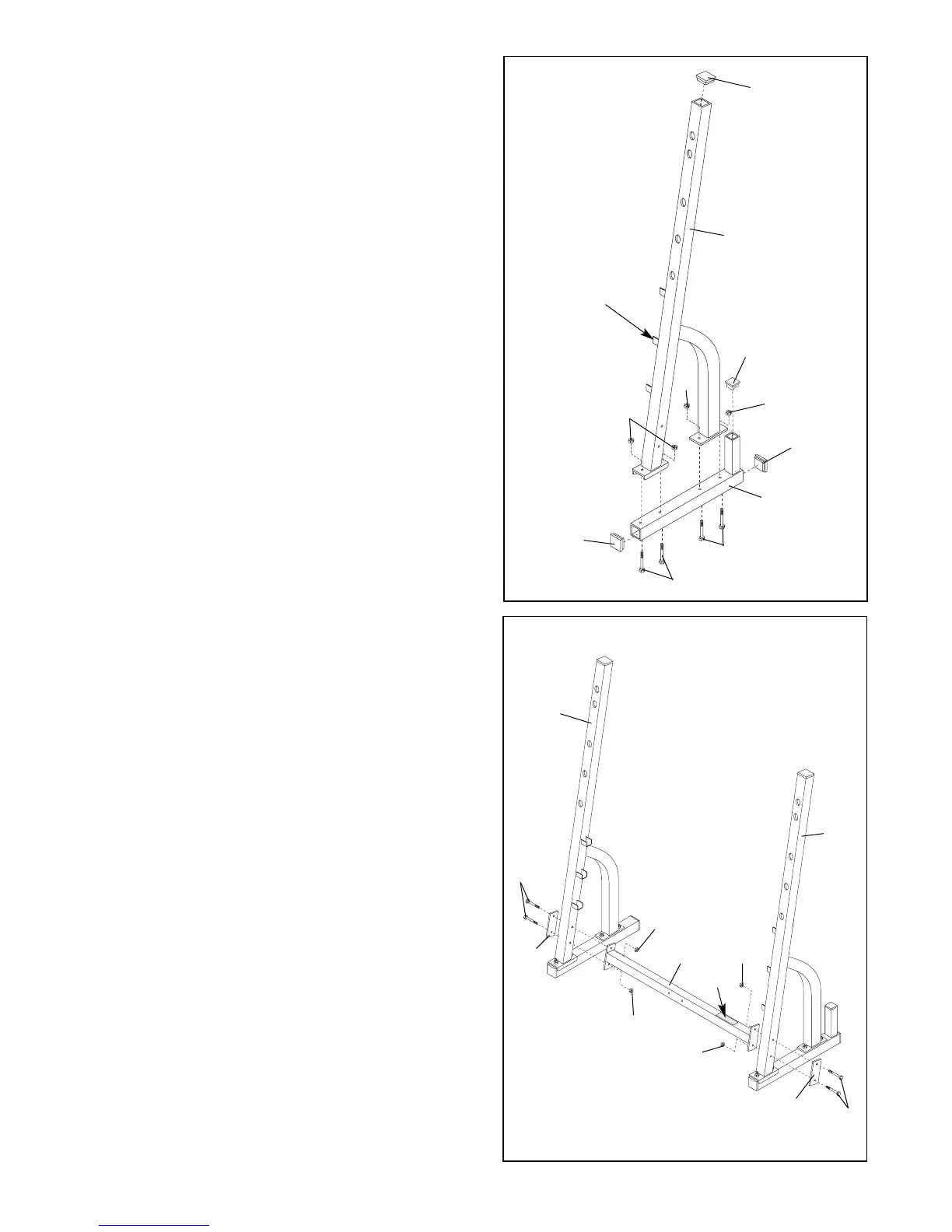

3. Insert two M10 x 68mm Bolts (34) into an Upright
Support Plate (16). Next, insert the Bolts into the indi-
cated holes in the Right Upright (1).
While a second person holds the Right Upright (1),
slide the bracket on the Crossbar (20) over the two
M10 x 68mm Bolts (34). Make sure that the
Crossbar is turned so the decal is on top. Secure
the Crossbar with two M10 Nylon Locknuts (11).
Attach the Crossbar (20) to the Left Upright (37) in
the same manner.
16
34
37
1
3
2. Identify the Left Upright (37) by the position of the
adjustment brackets. Press a 51mm x 76mm Inner
Cap (24) into the top of the Left Upright.
Press a 2” Square Inner Cap (17) into each end of
the Left Stabilizer (25). Press a 38mm Square Inner
Cap (31) into the vertical tube on the Left Stabilizer.
Insert four M10 x 62mm Carriage Bolts (33) up
through the Left Stabilizer (25). Place the Left
Stabilizer flat on the floor.
Slide the Left Upright (37) onto the four M10 x 62mm
Carriage Bolts (33) in the Left Stabilizer (25). Attach
the Upright with four M10 Nylon Locknuts (11).
2
37
24
11
11
20
Decal
11
11
34
16
Adjustment
Brackets
To Next Page
