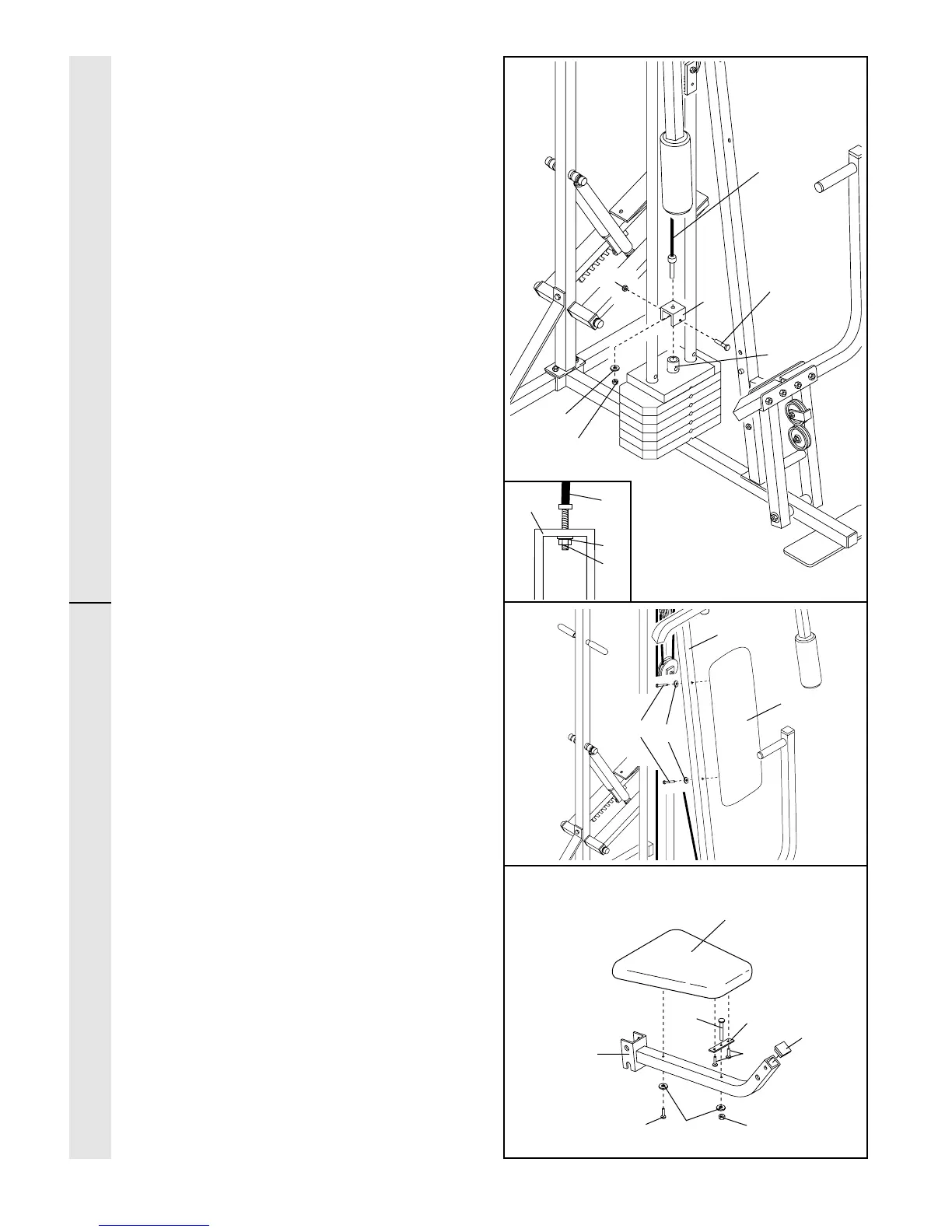

CABLE ASSEMBLY
22. Attach the Long Cable (23) to the Small “U”-
Bracket (67) with a 1/4” Nylon Locknut (2)
and a 1/4” Washer (10). Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable so only
a couple of threads are showing above the
Nylon Locknut, as shown in the inset
drawing.
Attach the Small “U”-Bracket (67) to the
Weight Tube (63) with the 5/16” x 1 3/4” Bolt
(72) and a 5/16” Nylon Locknut (3).
23. Attach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Washers (10).
24. Press a 1 1/2” Square Inner Cap (32) into the
Seat Frame (36).
Insert the 1/4” x 2” Carriage Bolt (38) through
the centre hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4” x
1/2” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) into the
indicated hole in the Seat Frame (36).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Seat Frame (36) with the 1/4” x 2” Screw (24)
and a 1/4” Washer (10).
24
22
23
23
3
42
41
10
13
10
2
18
38
37
36
32
24
72
67
2
10
63
43
SEAT ASSEMBLY
