15

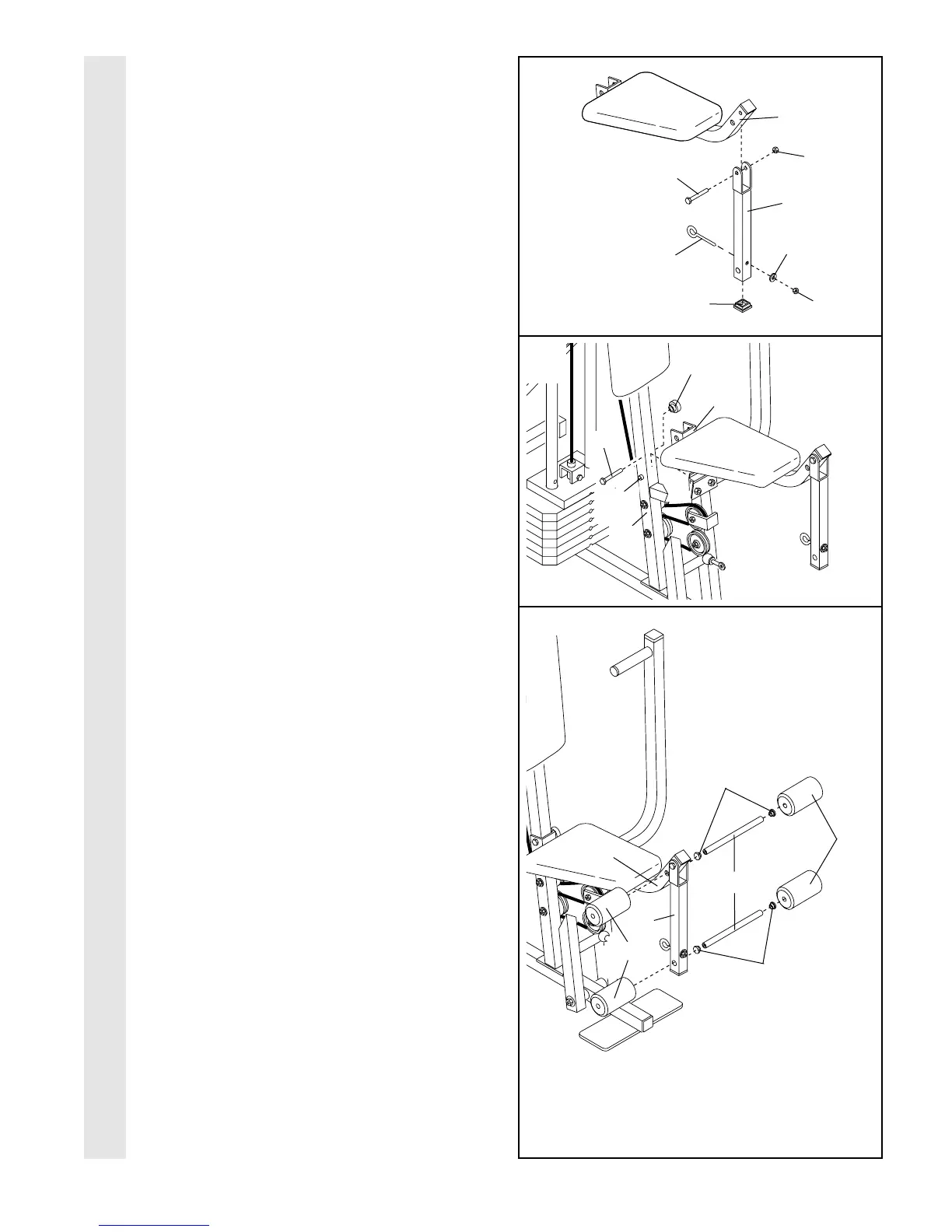

25. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach
the Leg Lever (29) to the Seat Frame (36)
with the 5/16” x 2 1/4” Bolt and a 5/16” Nylon
Locknut (3).
Insert the 3/8” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten
a 3/8” Nylon Locknut (21) with a 3/8” Washer
(9) onto the Eyebolt.
26. Rest the Seat Frame (36) on the indicated pin
in the Front Upright (42). Attach the Seat
Frame to the Front Upright with a 5/16” x
2 3/4” Carriage Bolt (14) and the Seat Knob
(40).
27. Press 3/4” Round Inner Caps (34) into the
ends of both 12 1/2” Pad Tubes (28).
Insert one 12 1/2” Pad Tube (28) into the
Seat Frame (36). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
Insert the other 12 1/2” Pad Tube (28) into the
Leg Lever (29). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
27
25
26
SEAT ASSEMBLY
36
36
3
29
8
32
33—Lubricate
35
3
40
36
34
34
30
29
14
42
Pin
28
30
To Next Page
