Weider WESY19611 - Page 9

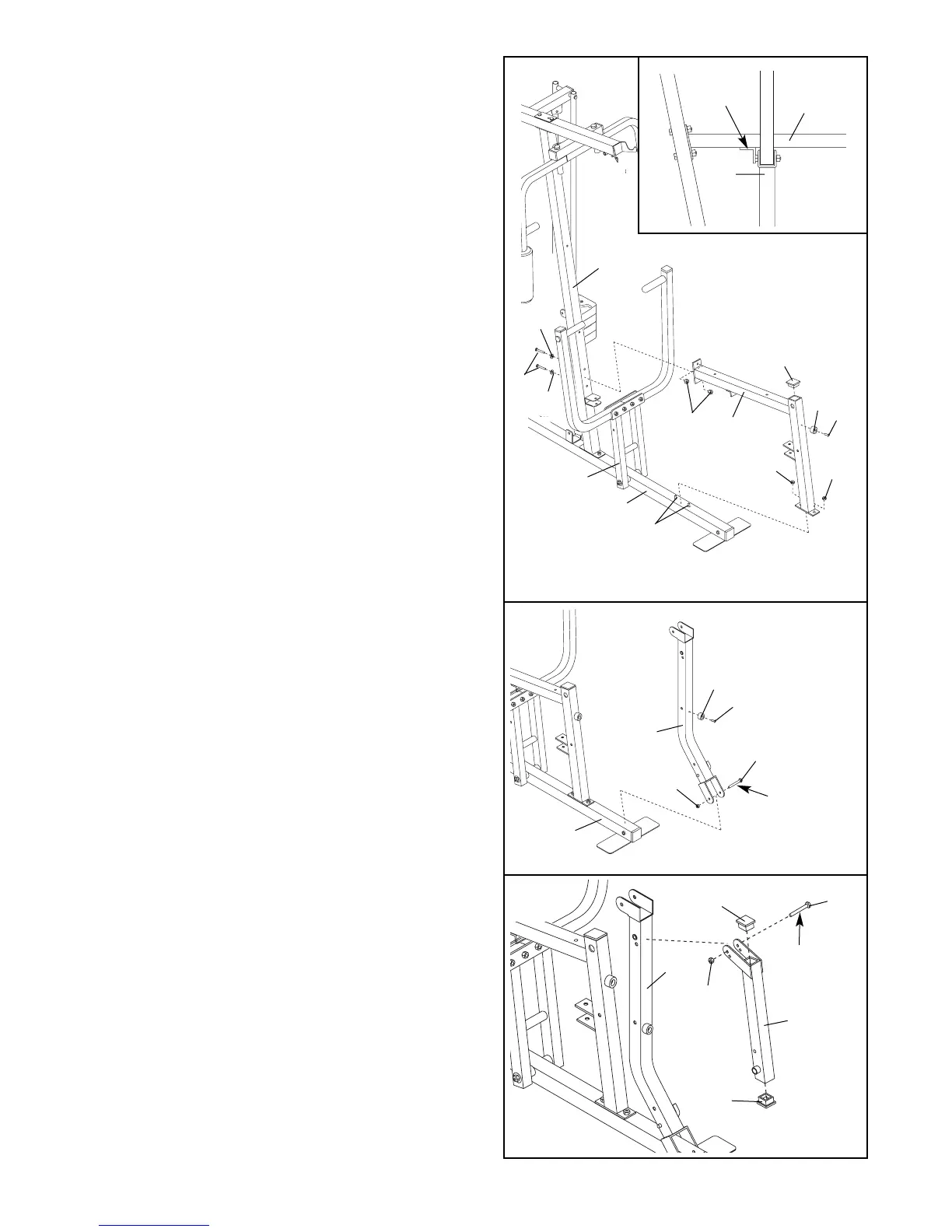

11. Press a 1 3/4” Square Inner Cap (44) into the Seat
Frame (36). Attach a Bumper (73) to the Seat
Frame with a #8 x 3/4” Tap Screw (65).
Slide the Seat Frame (36) onto the 5/16” x 2 1/2”
Carriage Bolts (1) in the Base (4). See the inset
drawing. The indicated bracket on the Seat
Frame must be behind the Press Frame (17).
Hand tighten a 5/16” Nylon Locknut (3) onto each
Carriage Bolt. Do not tighten the Nylon Locknuts
yet.
Attach the Seat Frame (36) to the Front Upright
(42) with two 5/16” x 2 3/4” Bolts (11), two 5/16”
Washers (8), and two 5/16” Nylon Locknuts (3).
Tighten the four 5/16” Nylon Locknuts (3) used
in this step.
12. Attach a Bumper (73) to the Rocker Arm (32) with a
#8 x 3/4” Tap Screw (65).
Lubricate a 3/8” x 3 1/4” Bolt (68). Attach the
Rocker Arm (32) to the Base (4) with the Bolt and a
3/8” Nylon Locknut (21). Do not overtighten the
Nylon Locknut; the Rocker Arm must be able to
pivot freely.
13. Press a 1 3/4” Square Inner Cap (44) into each end
of the Leg Lever (29).
Lubricate a 3/8” x 2 1/2” Bolt (7). Attach the Leg
Lever (29) to the Rocker Arm (32) with the Bolt and
a 3/8” Nylon Jamnut (33). Do not overtighten the
Nylon Jamnut; the Leg Lever must be able to
pivot freely.
13
11
12
9
Bracket
17
17
36
1
44
36
3
3
3
42
73
32
73
65
4
68
21
Lubricate
29
32
44
7
44
Lubricate
65
4
11
8
8
33
