26

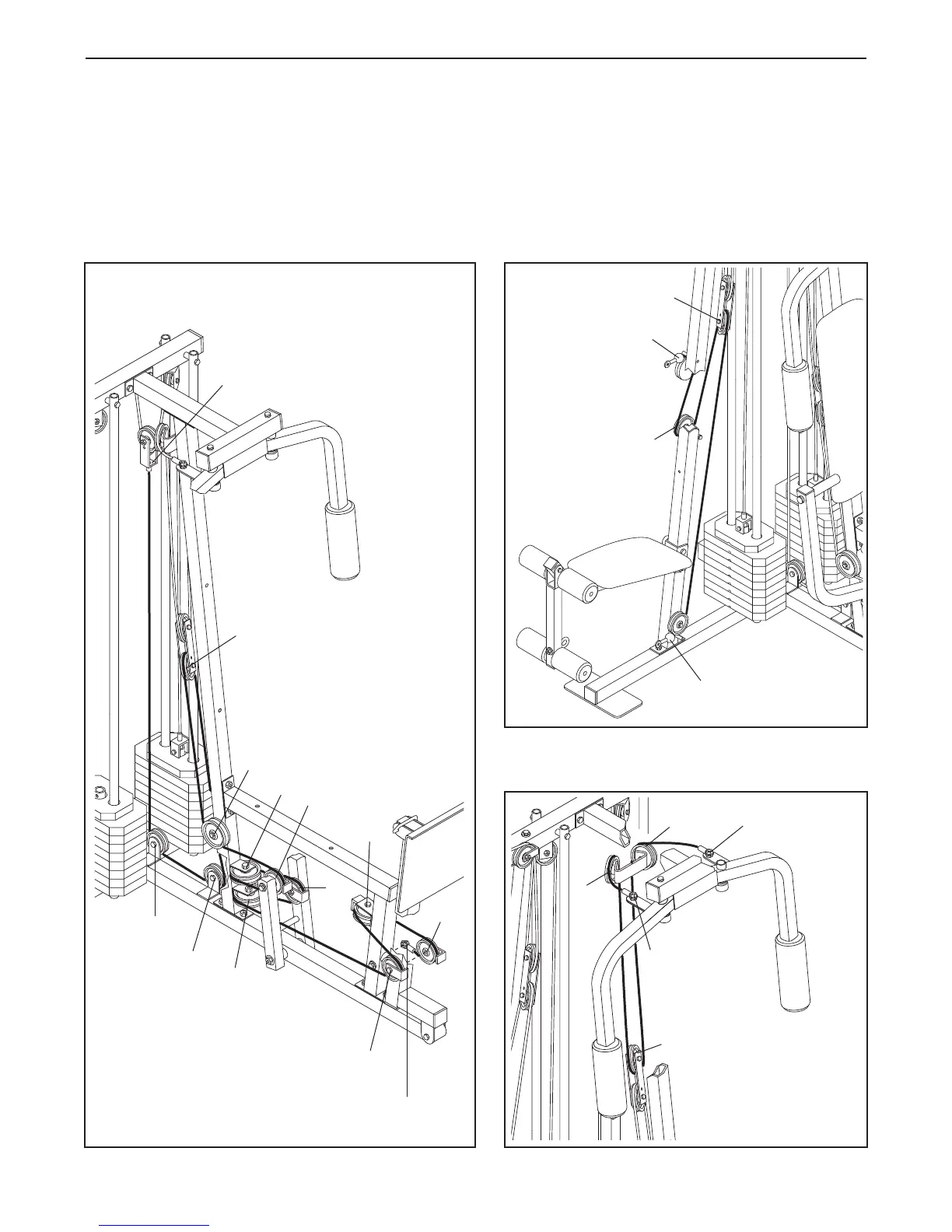

CABLE DIAGRAMS
The cable diagrams on this page and the next page show the proper routing of the High Cable (85), the Low
Cable (86), the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89). Use the diagrams to be sure
that the cables have been assembled correctly. The starting and ending points of each cable have been labeled.
The numbers show the proper route for each cable. IMPORTANT: If the cables have not been correctly rout-
ed, the weight system will not function properly and damage may occur
.
Low Cable (86)
Butterfly Cable (89)
Press Cable (88)
2
4
1—Right Fly Arm
3
5—Left Fly Arm
2
3
4—Low Pulley
1—Long “U” Bracket
8
9
7
6
3
Leg Press—13
Ab Pulley—1
4
5
2
10
12
11
To Next Page
