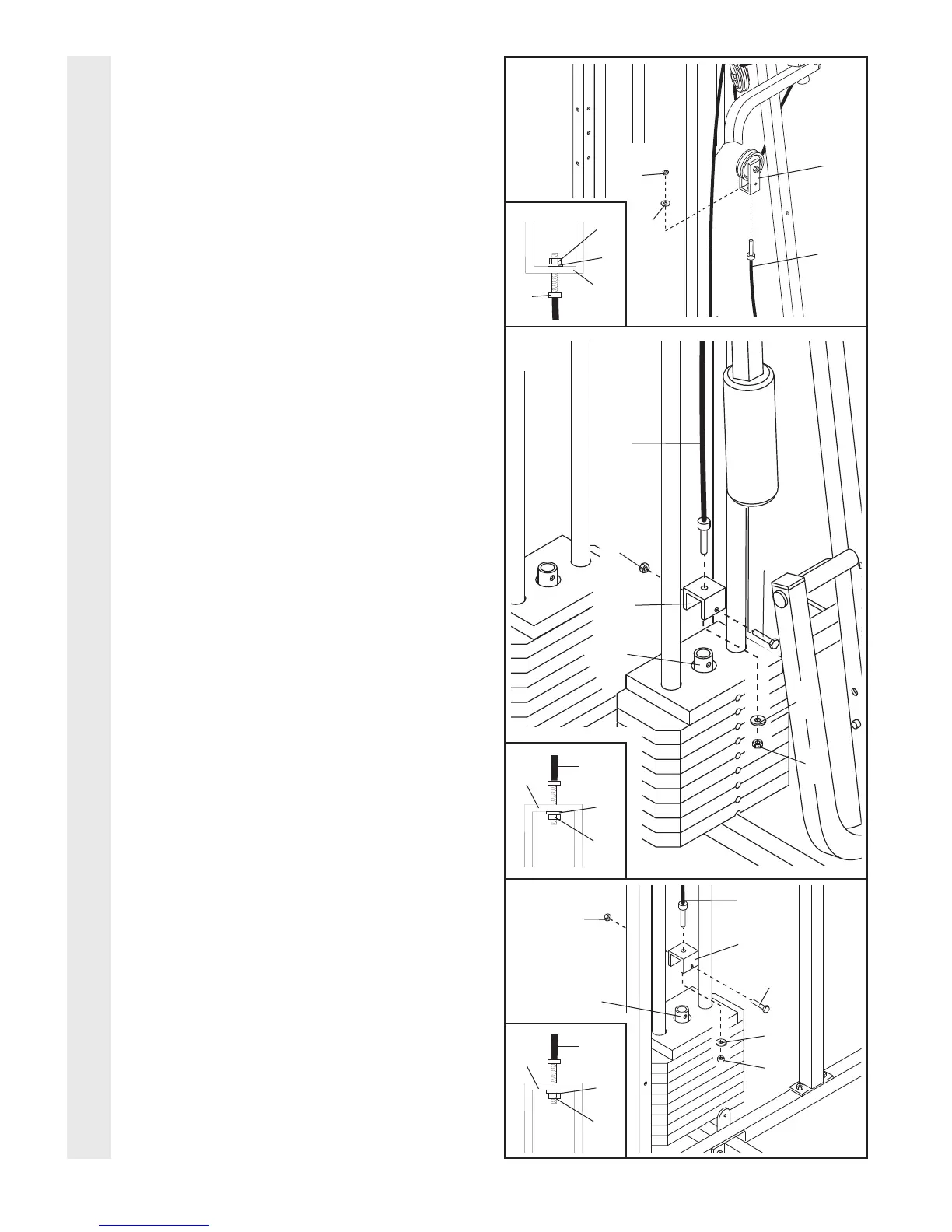

29. Attach the end of the Low Cable (23) to the
Long “U”-Bracket (57) with a 1/4” Nylon
Locknut (2) and a 1/4” Flat W
asher (10). Do
not completely tighten the Nylon Locknut.
It should be threaded onto the end of the
Cable so only a couple of threads are
showing above the Nylon Locknut, as
shown in the inset drawing.
30. Attach the High Cable (58) to a Small “U”-
Bracket (71) with a 1/4” Nylon Locknut (2) and
a 1/4” Flat Washer (10). Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown in the inset
drawing.
Attach the Small “U”-Bracket (71) to the indi-
cated Weight Tube (63) with a 5/16” x 1 3/4”
Bolt (24) and a 5/16” Nylon Locknut (3).
31.
Locate the Military Press Cable (72). Attach
the Military Press Cable to the other Small
“U”-Bracket (71) with a 1/4” Nylon Locknut (2)
and a 1/4” Flat Washer (10).
Do not com-
pletely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a couple of turns, as shown in
the inset drawing.
Attach the Small “U”-Bracket (71) to the indi-
cated W
eight
Tube (63) with a 5/16” x 1 3/4”
Bolt (24) and a 5/16” Nylon Locknut (3).
31
29
10
58
24
63
71
10
2
30
CABLE ASSEMBLY
