Weimer We-1400 - Mounting Instructions

6
2017:1
D ŽƵŶƟŶŐ
 Hold the fixture on the boom side plate.
 Put the winch as far forward as possible
in height or below the top of the boom,
see dimension drawing above.
 Mark and grind clean of paint.
 Measure and weld.
 It is very important that the brackets
ĂŶĚǁ ŝƌĞǁ ŚĞĞůĂƩ ĂĐŚŵĞŶƚĂƌĞŝŶůŝŶĞ 
if not build up with plates.
 t ĞůĚƚŚĞǁ ŝƌĞǁ ŚĞĞůĂƩ ĂĐŚŵĞŶƚŽŶƚŚĞ
boom plates as far as possible from the
winch.
 Mount the winch in place.

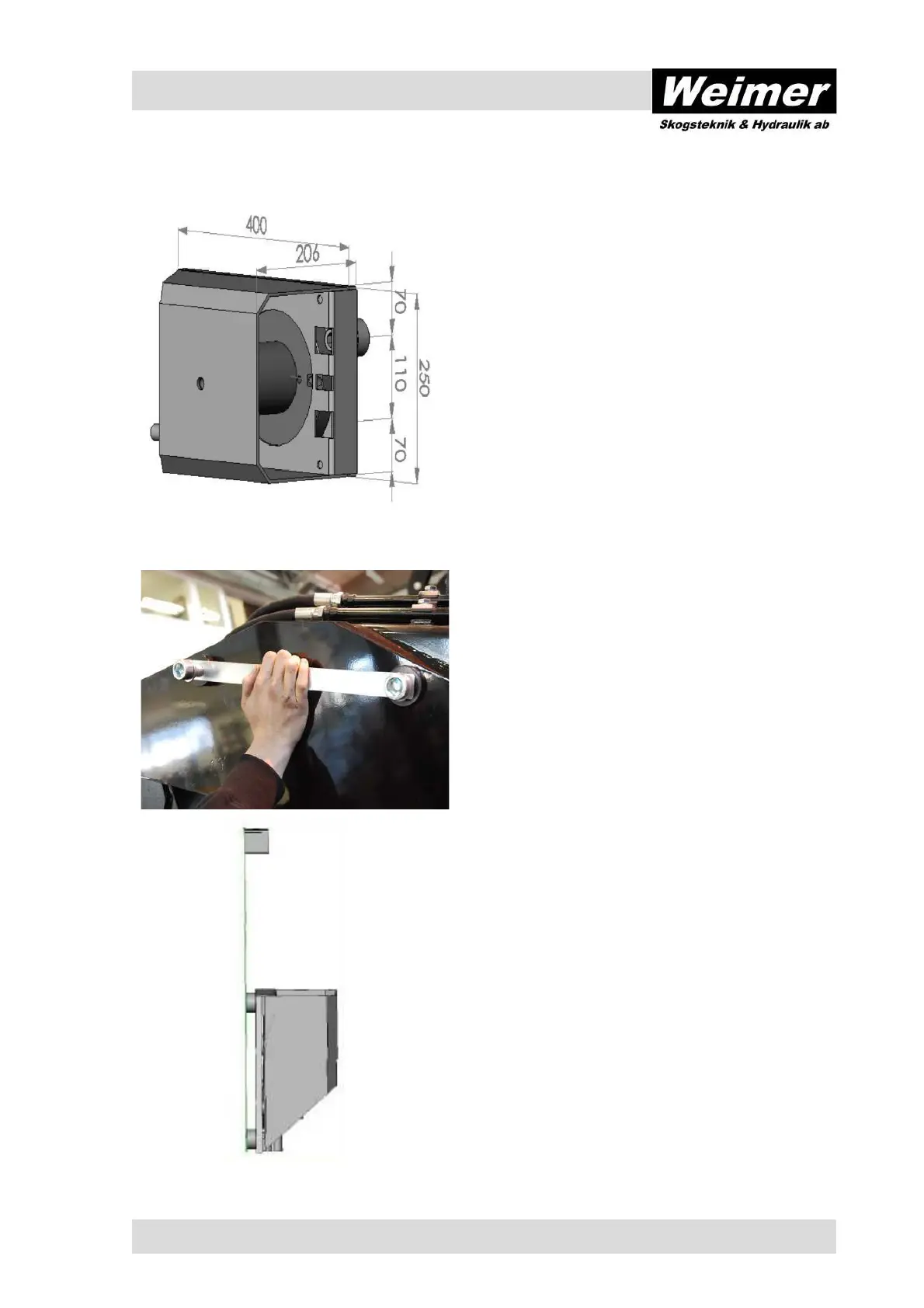

 ŝŵĞŶƐŝŽŶĂŶĚĂƩ ĂĐŚŵĞŶƚƉŽŝŶƚƐ
