Technische Änderungen vorbehalten | Technische wijzigingen voorbehouden | We reserve the right to make technical changes | Sous réserve de modifications techniques

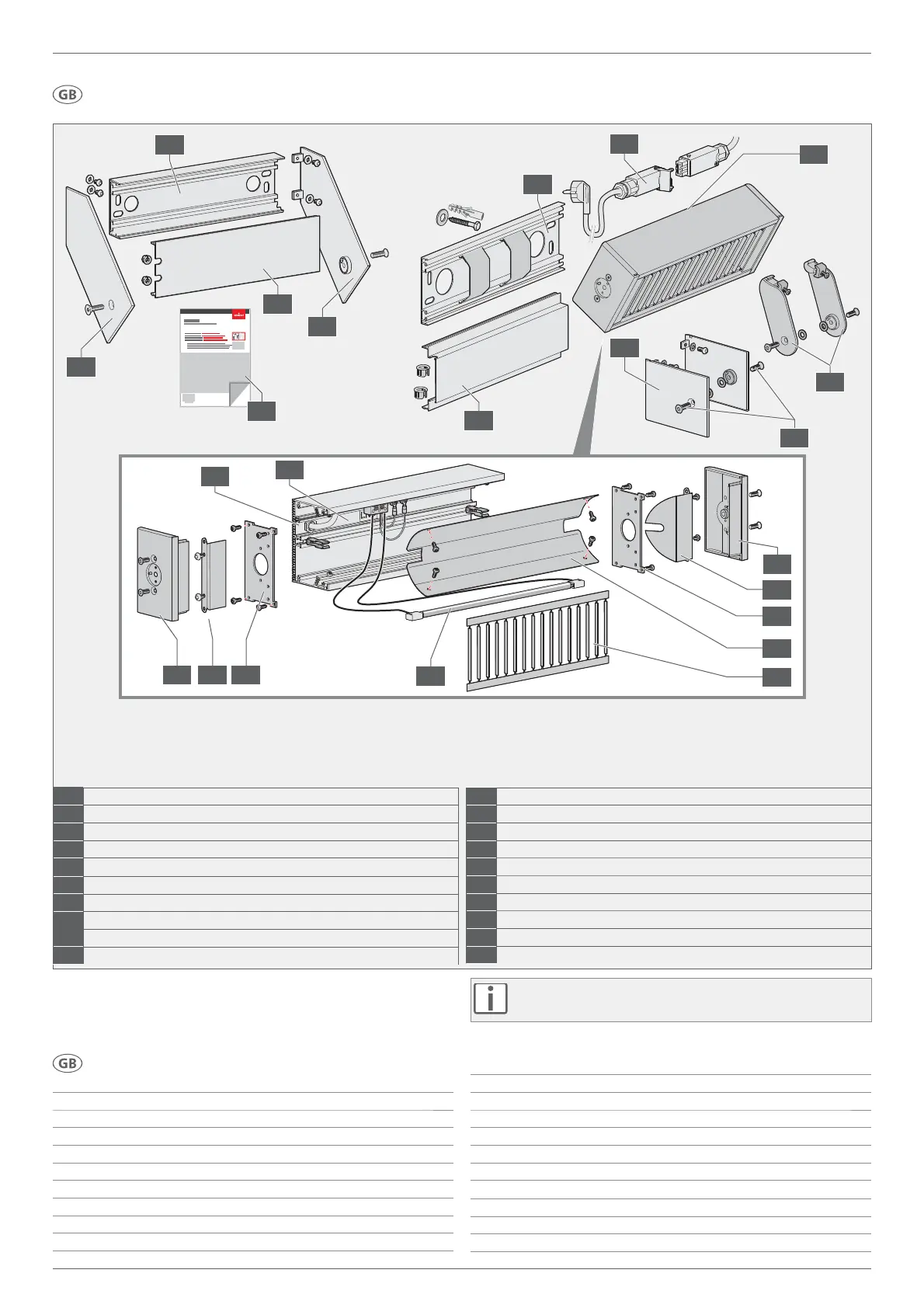

Product overview and scope of delivery
4x
3
2
11
15
12
17
17
18
543
8
14
16
10
9
13
19
1
4
5
7
6
*) option Tempura Quadra
**) option Tempura Quadra Universal
***) option Tempura Quadra with “260 Attachment”
1
Complete Tempura Quadra housing
2
Left/right Opal arm *
3
Exterior headplate (right, including countersunk hex head screws)
4
Side reflector
5
Interior headplate (right, including flat self-tapping screws)
6
Reflector
7
Safety guard
8
Infrared lamp
9
Clip
10
Porcelain terminal block
11
Faceplate profile with 2 x cable sleeves **
12
Installation, usage and maintenance instructions
13
Wall gap sealing profile with two 85 x 60 rubber bands **
14
Left/right universal arm **
15
M8 x 22 hex socket head screw
16
Power cord with Hirschmann plug, STAS 3/ Stak 3
17
Arm for left/right 260 attachment ***
18
Faceplate for 260 attachment with 2 x cable sleeves ***
19
Wall gap sealing profile for 260 attachment ***
Product overview | List of contents 6
General 7
Technical data, dimensions and minimum spacings 10
Installation 12
Tempura Quadra Universal installation (on a wall/roof)
13
Installation on a weinor Opal Design II 18
Positioning the Tempura Quadra on a weinor Opal Design II
19
Tilting the Tempura Quadra 19
Installing the Tempura Quadra with "260 attachment" 20
Performing a functional check 22
Handover 22
Operation and usage 23
Cleaning 24
Maintenance – replacing the infrared lamp 25
Circuit diagrams 29
Fault analysis and troubleshooting 30
Disposal 30
EC Declaration of Conformity 31
Symbols used 32
List of contents
- Tool list → weinor download centre (DLC)
- Exploded drawing → weinor download centre (DLC)
Tempura Quadra | 121070-0000 w | v3 | 2019-05-06 | Montageanleitung | Montagehandleiding | Instructions for assembly | Instructions de montage
