3.2 Variations
3.2.1 Solar supported water heating

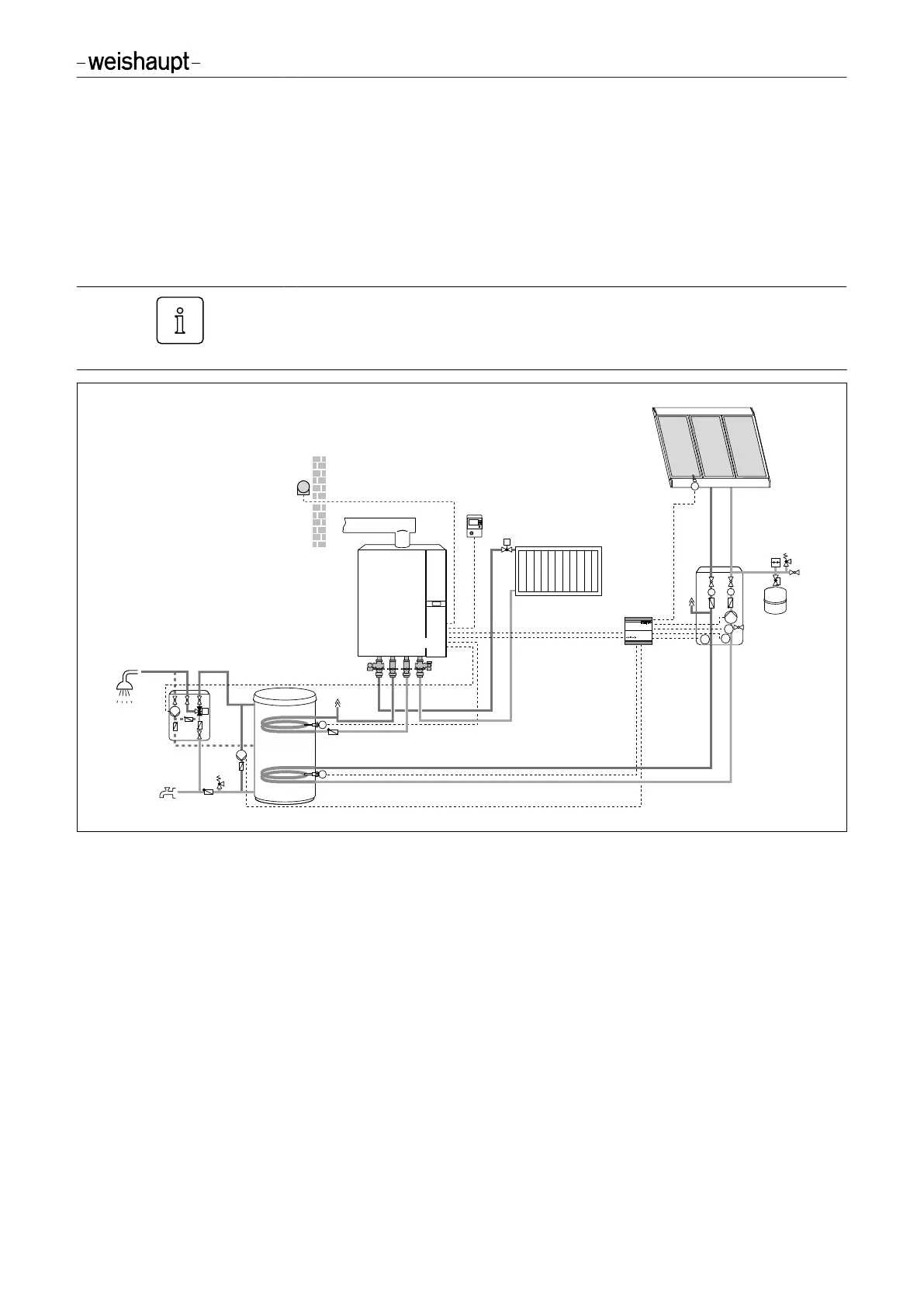

In the system example, the solar controller is operated via the WCM-FS, address
#1.
The external sensor is connected to WTC address #A.
DHW operation is carried out via WTC address #A.
The solar controller is operated via the FS which, according to the address setting,
has the functions DHW program, time master and circulation program. The following
addresses are possible: Control centre#L, WTC-HC#1, WTC-HC#1 + EM-HC#2
and EM-HC#2. The WTC should be set to address #A.
B1
B3
T2
F3
M7
T
T
WASol
T1
PS
T
T
T
T
T
modul hydraul ic
T
T
V1
T3 T4
M7.1
WHP-Sol EA
V
WTC-GW
vers. W
FS #1
WCM-CPU#A
WCM-Sol
1.0 home
WTS-F
Legend: Note:
FS: Remote control station WCM-FS 1. WCM-Sol: P317 = WASol
B1: External temperature sensor 2. WCM-Sol: P801 = Bypass
B3: DHW temperature sensor 3. WTC address: P12 = A
M7: Circulation pump 4. WTC P13 = 6 (DHW circulation pump)
M7.1: Bypass pump
T1: Collector sensor
T2: Thermal store sensor bottom
T3: Solar flow sensor
T4: Solar return sensor
V1: FlowRotor
PS: Solar pump
F3: Thermostatic mixer valve
Installation and operating instruction
Remote control station WCM-FS 2.0 and solar controller WCM-SOL 1.0 home
