WEISS VM25L - Gibs Adjustment

- 11 -
GIBS ADJUSTMENT
After a period of time, movement of the table over the
ways will cause normal wear. Adjust the gibs to
compensate for this wear.
1. The horizontal gib adjustment screw (A, Fig.16) is
found to the rear right on table. The traverse gib
adjustment screw (B, Fig.16) is found on the right
side of saddle under the table. The vertical gib
adjustment screw (C, Fig.17) is found onto the
column.
2. Loose the screw from small taper end of gib. Turn
the screw from large taper end of gib slightly
clockwise to tighten. Turn the table handwheel and
check the tension.
3. Re-adjust as required.
A
B

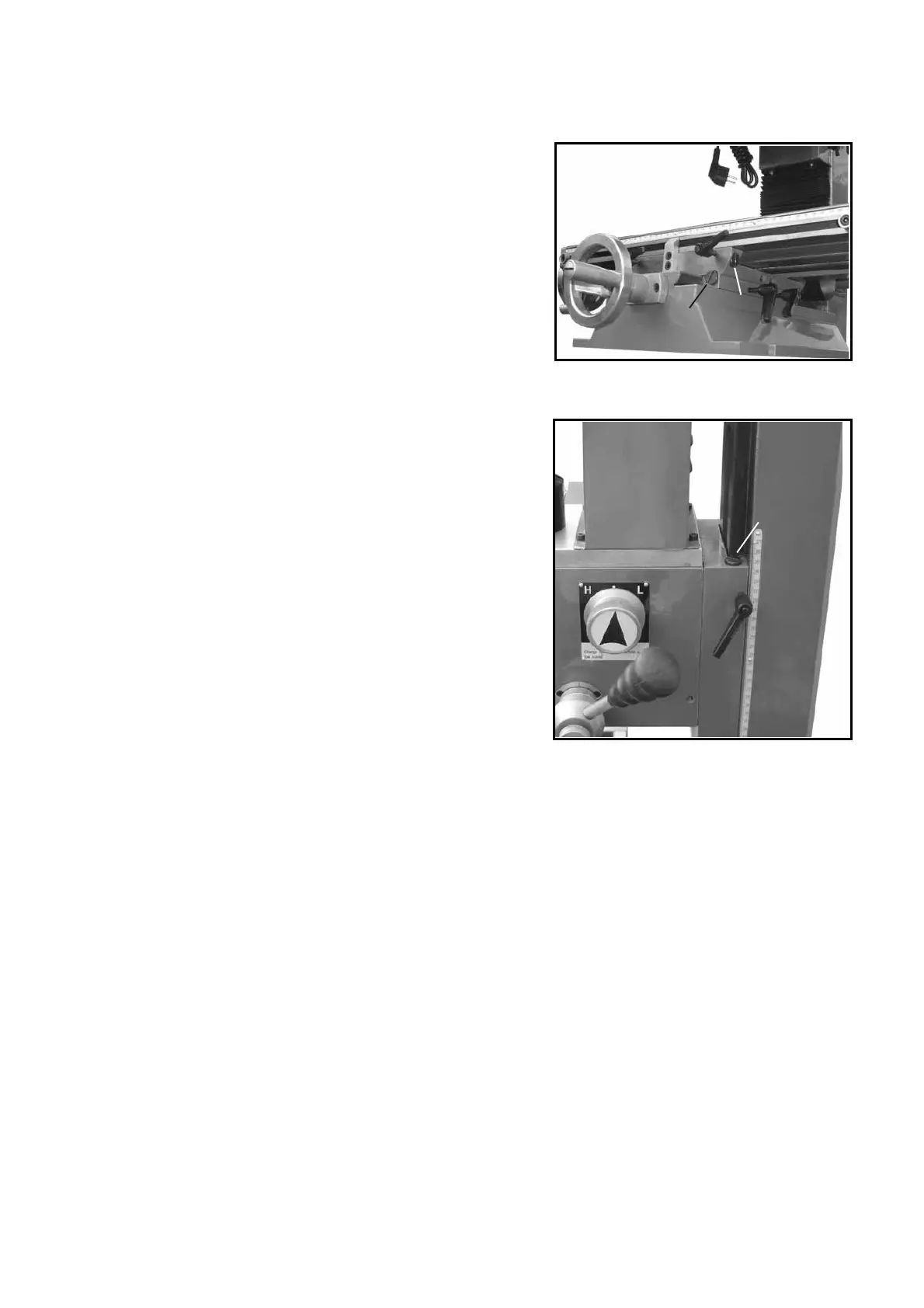

Fig. 16
C
C
Fig. 17
