Wel-Bilt M141300A - Page 30

Assembly Instructions
30
Ref #
Description
Qty
1
Front Leg Pin
1
2
Short Axle Sleeve
1
3
Long Axle Sleeve
1
4
Control Valve Handle
1
5
Cotter Pin
2
6
Flat Washer
2

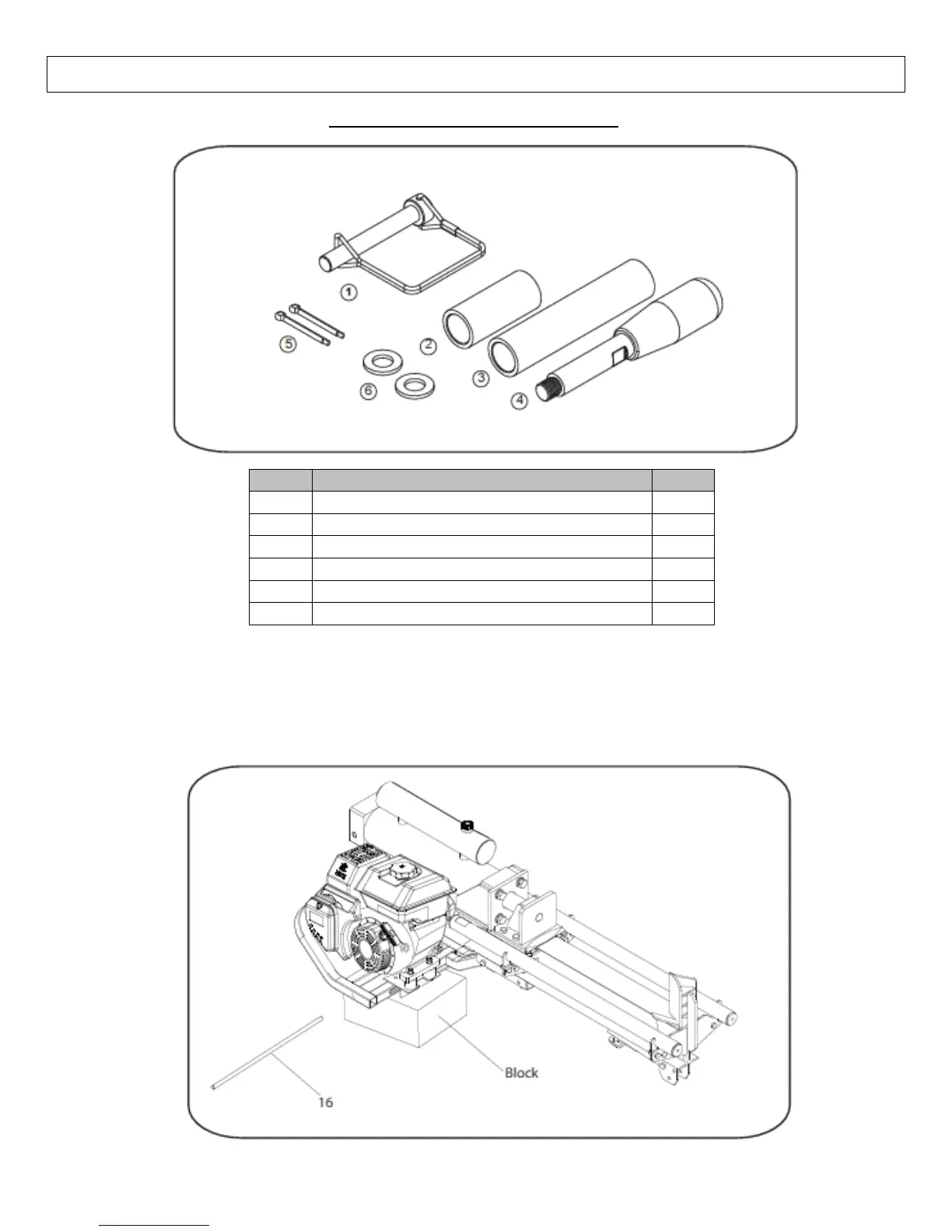

Parts Found In Your Hardware Box
Step 1 – Install Wheel Axle
1. Take all parts out of shipping box and hardware box. Put a block under the log
splitter frame and slide the wheel axle #16 through the frame hole.
