Mounting Instructions

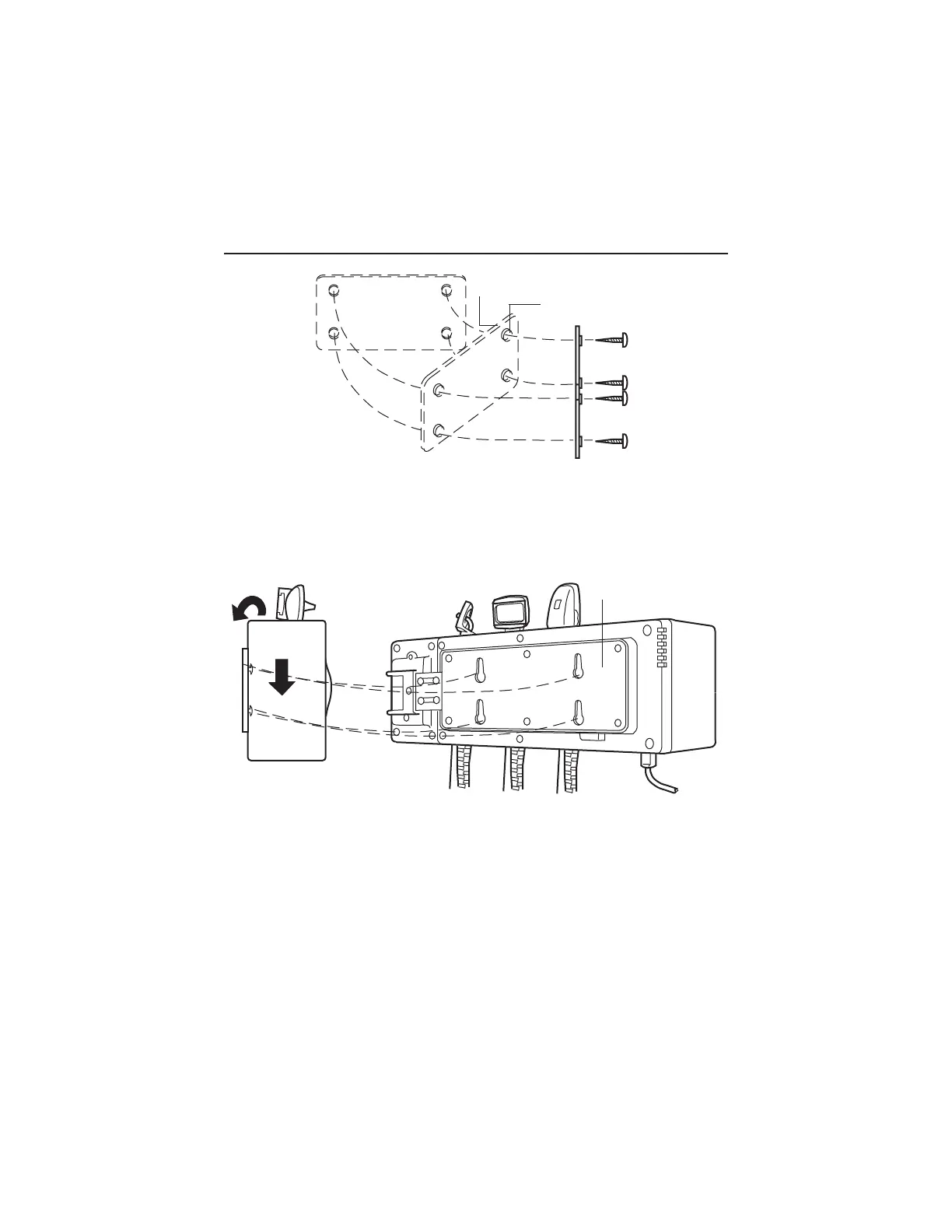

Fasten mounting plate to the wall with enclosed screws, making sure that the screw hole
flanges face away from the wall and the smooth surface of the mounting plate is flush with
the wall. Depending on the mounting surface, alternative screws may be needed. With the
flat side of the plate on the mounting surface, level the plate as shown. Note that the plate
should be mounted so that the widest portion of the plate is horizontal (as shown). When
mounting screws are tightened, there will be a gap between the screw head and surface
of the plate.
Mount the unit by fitting the round holes in the backplate over screw heads on the wall
mounting plate, then push downward on the unit to secure it to the wall. This slides the
tapered slots in the backplate over the shoulders in the mounting plate. Plug into 108-125v,
60 Hz AC and unit is ready for use.
Screw Hole
Flat Side
BACKPLATE
TO
POWER
To Next Page
