WeldCraft WP-17V - International Style Connector Assembly

ENGLISH
OM-225 427 Page 5

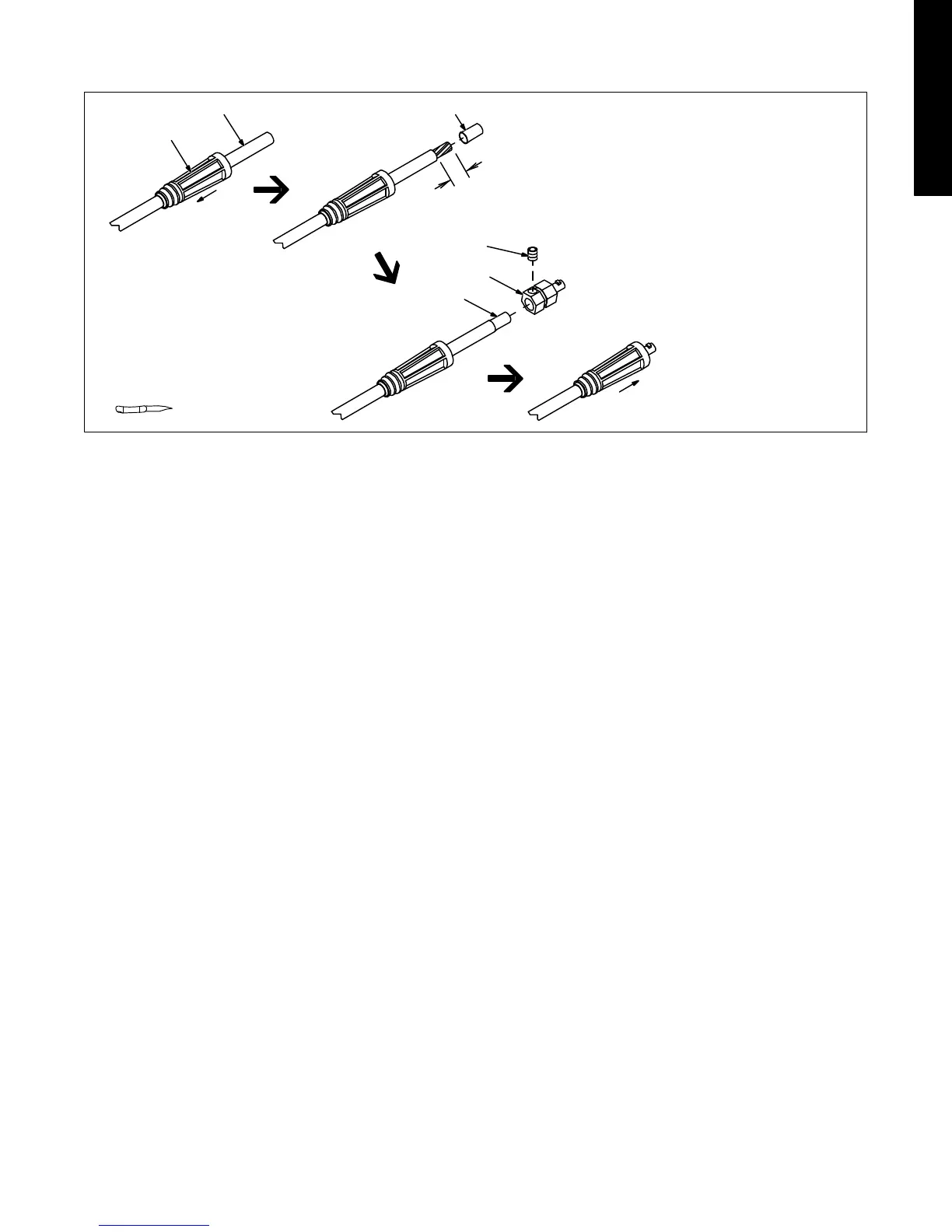

3-2. International Style Connector Assembly
1 Weld Output Cable
2 Insulating Boot
3 Sleeve
Slide insulating boot onto cable;
strip cable and install sleeve.
4 Connector Body
5 Setscrew
Insert cable with sleeve fully into
connector body, tighten setscrew,
and slide insulating boot over con-
nector.
ST-156 496
Tools Needed:
1
2
3
1 in.
(26 mm)
3
4
5
