OM-225 425 Page 6
803 311
! Turn Off welding power source
and cooling system power be-
fore installing torch.

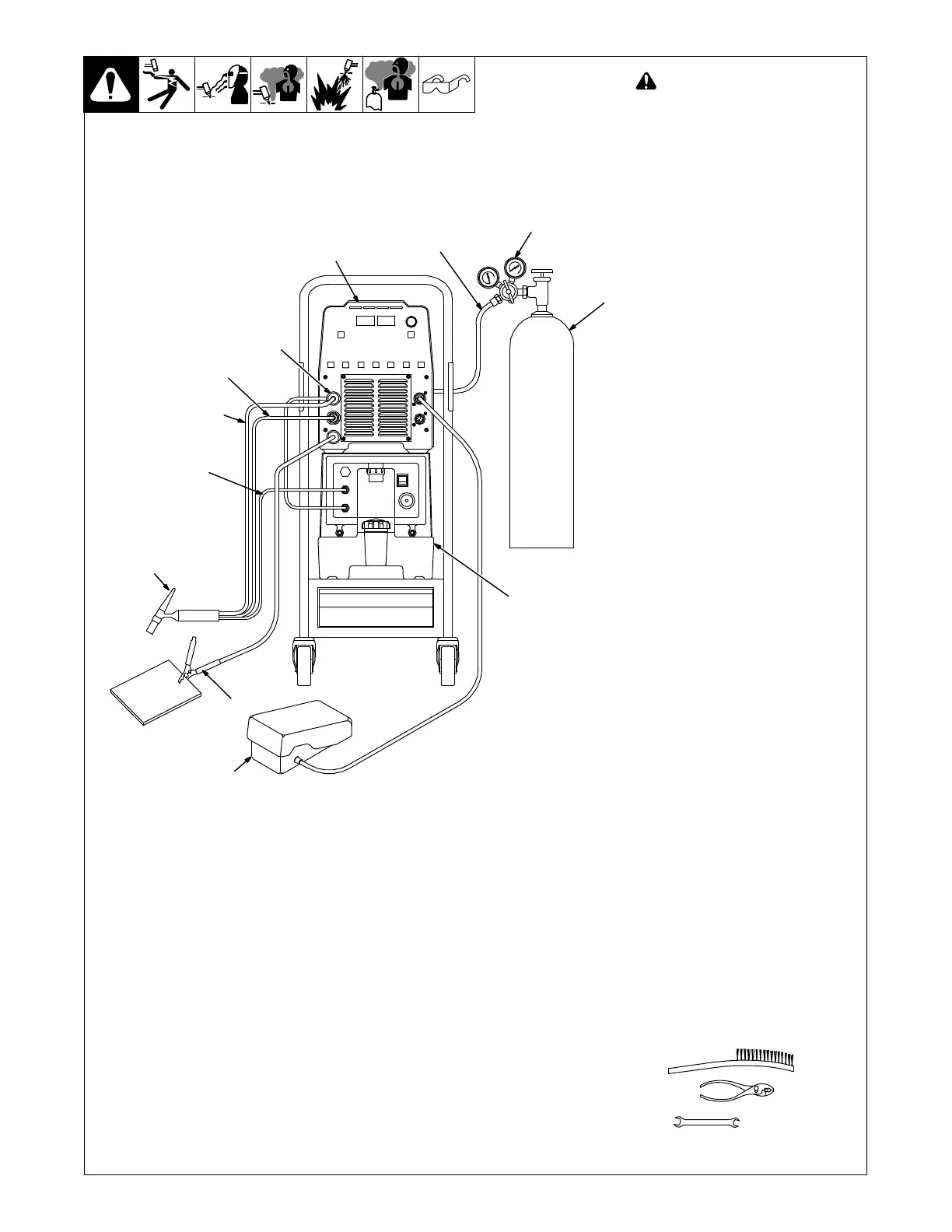

1 Gas Hose With 5/8-18 Right-Hand
Fittings (Customer Supplied)
Connections:
2 Regulator/Flowmeter
3 Gas Cylinder
4 Coolant System
5 Torch
6 Coolant-Into Torch Hose (Blue)
7 Torch Gas Hose
8 Coolant-Out Of Torch/Power
Cable (Red)
9 International Style Adapter
Connect coolant-out of torch/power
cable to power cable adapter, and con-
nect adapter to weld output terminal.
10 Work Clamp
Connect work clamp to a clean, paint-
free location on workpiece, close to the
weld.
Use wire brush or sandpaper to clean
weld joint area.
11 Welding Power Source
12 Foot Control
Tools Needed:
5/8, 7/8, 1-1/8 in.
2
3
1
10
5
6
8
11
4
7
9
12
To Next Page
