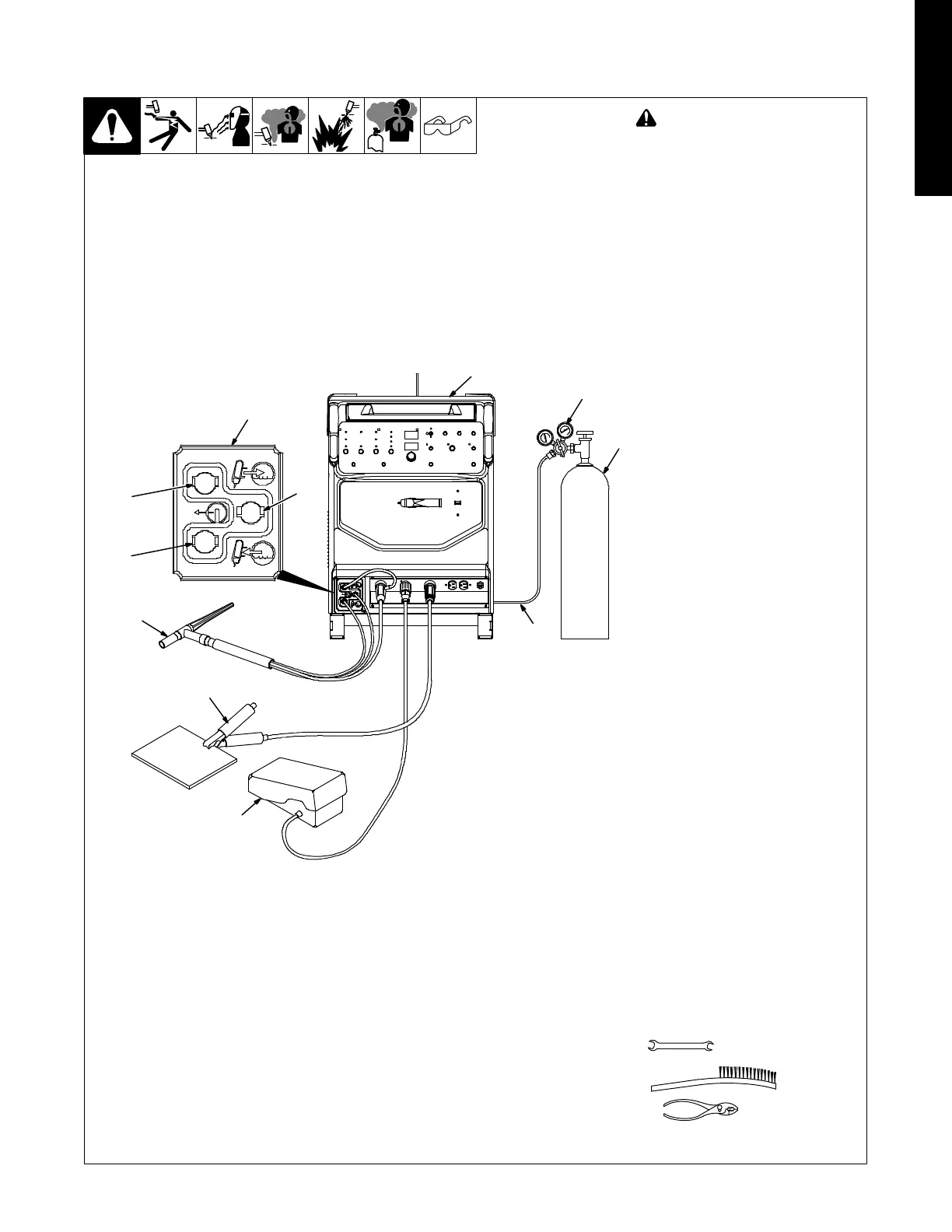

C. Connecting Torch To A Syncrowave 250 DX Or 350 LX w/Integrated Cooler
803 601-B
! Turn Off welding power source
power before installing torch.
1 Gas Hose With 5/8-18 Right-Hand
Fittings (Customer Supplied)
Connections:
2 Gas Cylinder
3 Regulator/Flowmeter
4 Power Source
5 Coolant System
6 Torch
7 Coolant-Into Torch Hose (Blue)
8 Coolant-Out Of Torch/Power
Cable (Red)
Connect torch coolant-out of torch/pow-
er cable to power cable adapter, and
connect adapter to weld output terminal.
9 Torch Gas Hose
10 Work Clamp
Connect work clamp to a clean, paint-
free location on workpiece, close to the
weld.
Use wire brush or sandpaper to clean
weld joint area.
11 Foot Control
Tools Needed:
5/8, 7/8, 1-1/8 in.
4
5
1
3
6
11
8
10
9
7
2
