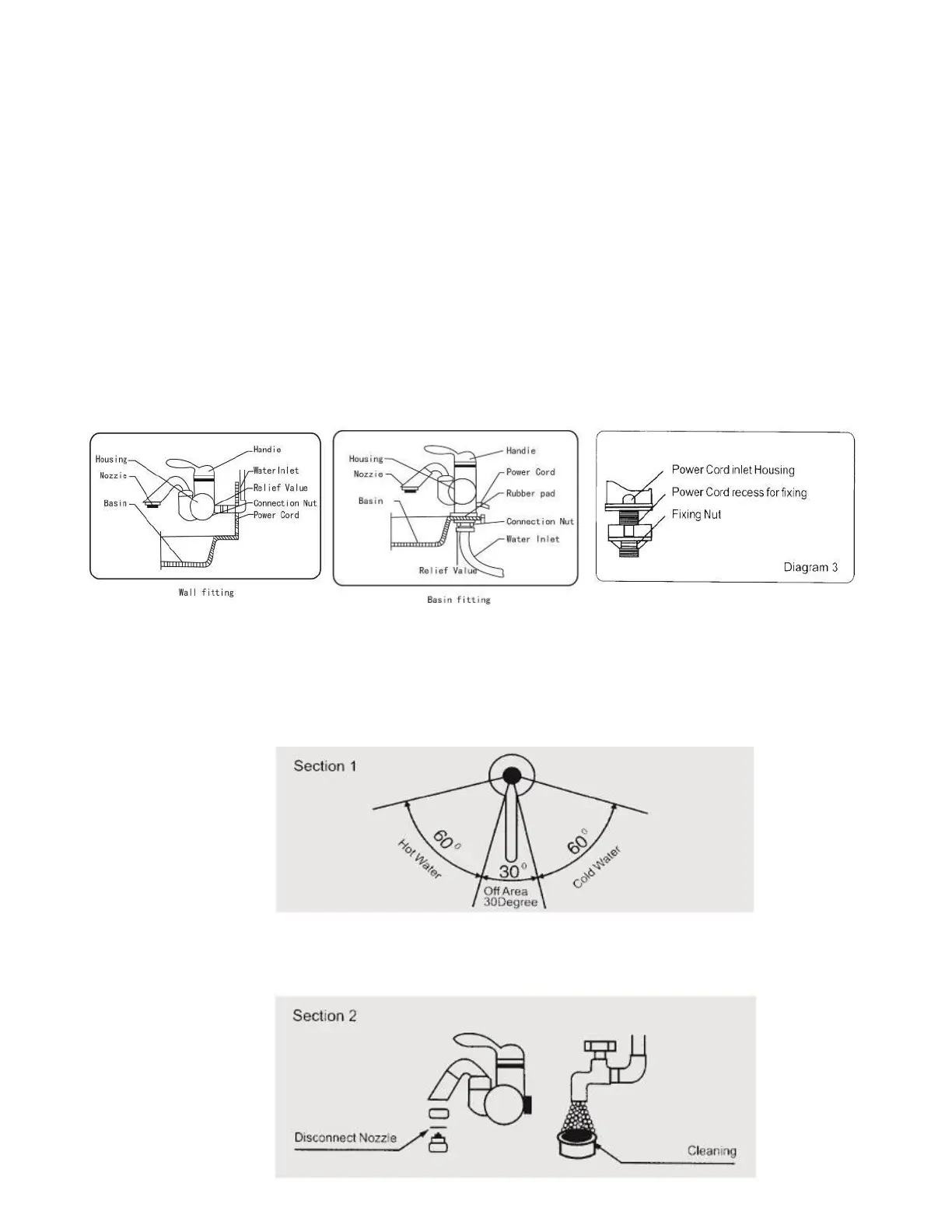

1. According to installation plan, (Diagram 1) Vertical water inflow see installation method;
Power cord & socket on tank method of installation refer, (Diagram 2) Water under inflow,
but power socket under the tank method of installation see (Diagram 3)
2. First run water before power on, after power on, first use rotate handle right, make water
flow increase gradually, Check the link ring that there is no leaking. If in doubt ask a
qualified technician to install.
3. Circuit installation: the installation of power supply should be designated by the technician
or qualified professional person, selecting a suitable tool. Water heater need appropriative
power wire. It is forbidden to share with another power wire. Please attention to cable
coloring live (L.) brown, neutral (N.) blue, connection wiring (E.) yellow / blue.
4. Pull handle left rotation to hot water position, heating lamp indicator lights and heating
starts, rotate handle right for cold water position, heating lamp will switch off, heat master
will stop heating.
Method of Use
1. Handle switch method of use as shown in diagram 1, handle rotation range is 150 degrees,
60 degrees for hot water area and another 60 for cold water area ,30 degrees for close area.
2. Indicator light: Indicator light for power supply heating lamp, color is Blue (or red), blue
(or red) light show that water heater in heating.
