F-55(6)
COUNTERTOP FRYER F-55 and BUILT-IN FRYER F-556
SV301 Service Manual Standard Fryers
17

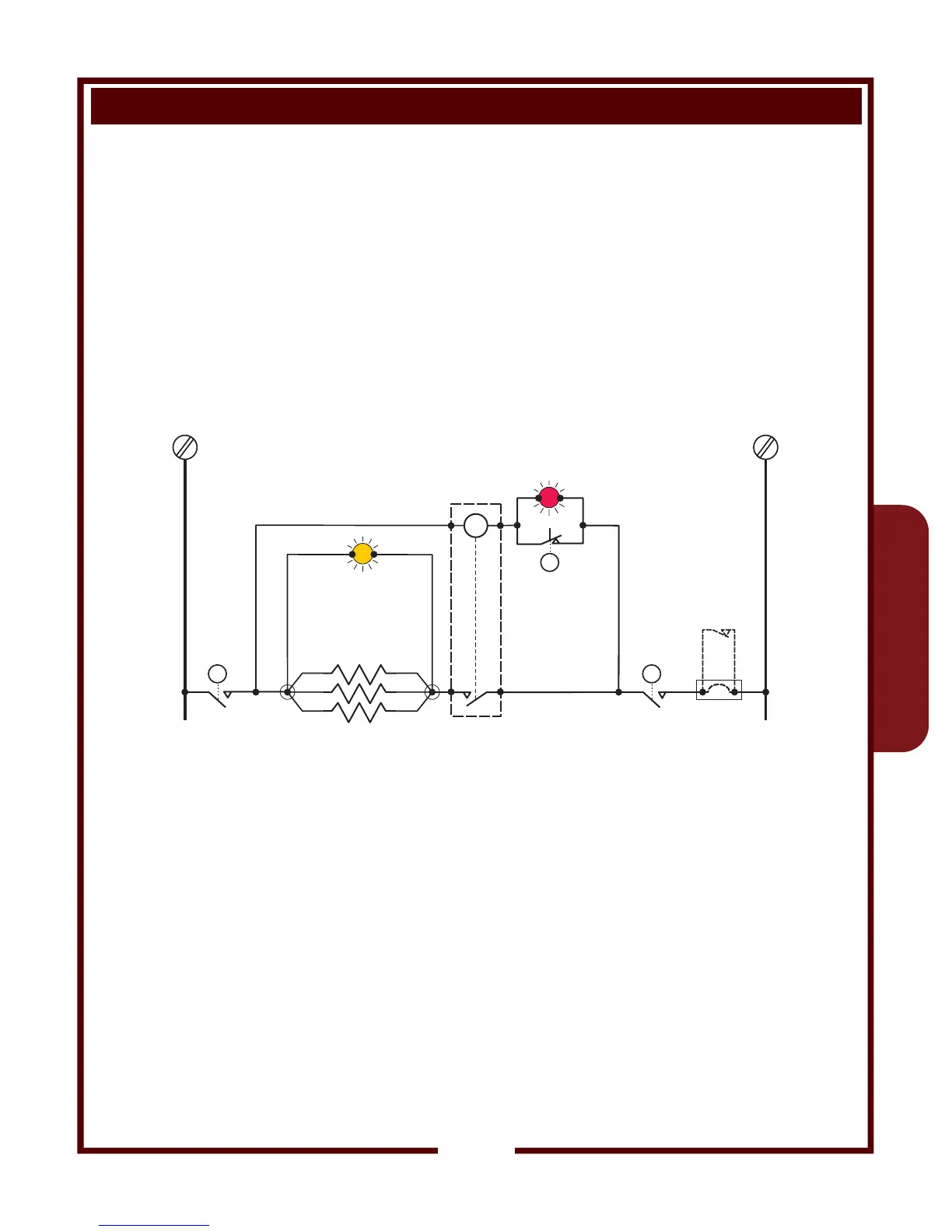

WIRING SCHEMATIC F-55 and F-556
SIGNAL
LITE
L1
L2
TEMP CONTROL
CONTACT SET 1
TEMP CONTROL
CONTACT SET 2
HI-LIMIT
THERMO
HEATING
ELEMENT
T
TT
TEMP
LITE
C
RELAY
HI-LIMIT
WIRE NUT
WIRE NUT
FLAME SENSOR JUMPER
OR EXTERNAL CONTROL
