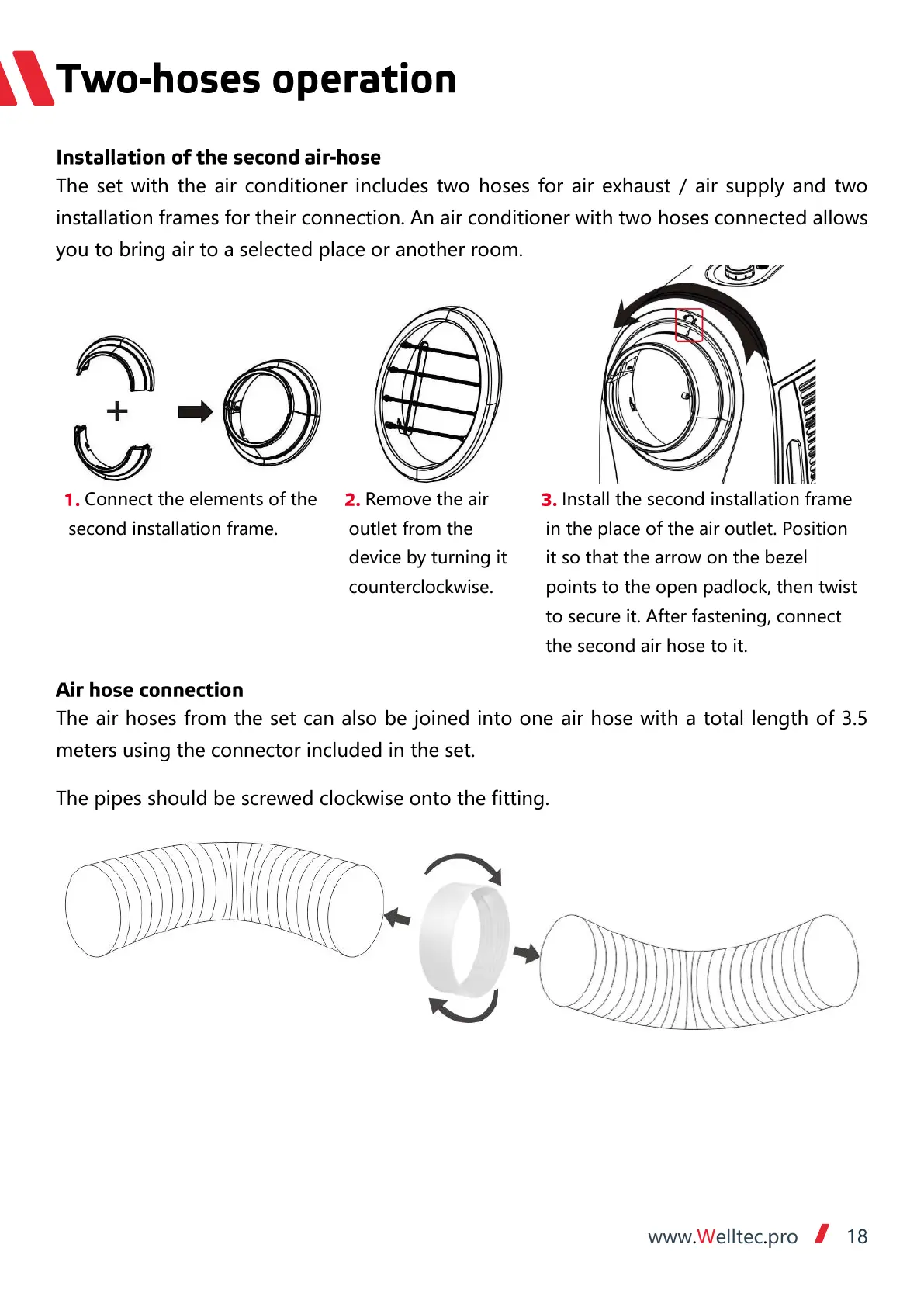

The set with the air conditioner includes two hoses for air exhaust / air supply and two
installation frames for their connection. An air conditioner with two hoses connected allows
you to bring air to a selected place or another room.
Connect the elements of the
second installation frame.
Remove the air
outlet from the
device by turning it
counterclockwise.
Install the second installation frame
in the place of the air outlet. Position
it so that the arrow on the bezel
points to the open padlock, then twist
to secure it. After fastening, connect
the second air hose to it.
The air hoses from the set can also be joined into one air hose with a total length of 3.5
meters using the connector included in the set.
The pipes should be screwed clockwise onto the fitting.
