ASSEMBLY & INSTALLATION
CEILING MOUNTING (FIG. 3)
1. Install the wood screw hooks (Fig. 4 - 1) into the building
support structure.
NOTE: Make sure to use chain and hooks that are properly
rated for hanging this unit. Wood screw hooks and chains
used for ceiling mounting are not included.
2. Place a chain (Fig. 4 - 2) on each wood screw hook.
3. Attach the chain onto the mounting hangers (Fig. 4 - 3).
The four mounting brackets can also be used for mounting
the unit onto the ceiling or wall.
4. Make sure the unit is horizontally level, and is at least 7
feet above the floor. If it is not, remove the unit and adjust
the length of the chain as needed. Then remount the unit.
3
1
2

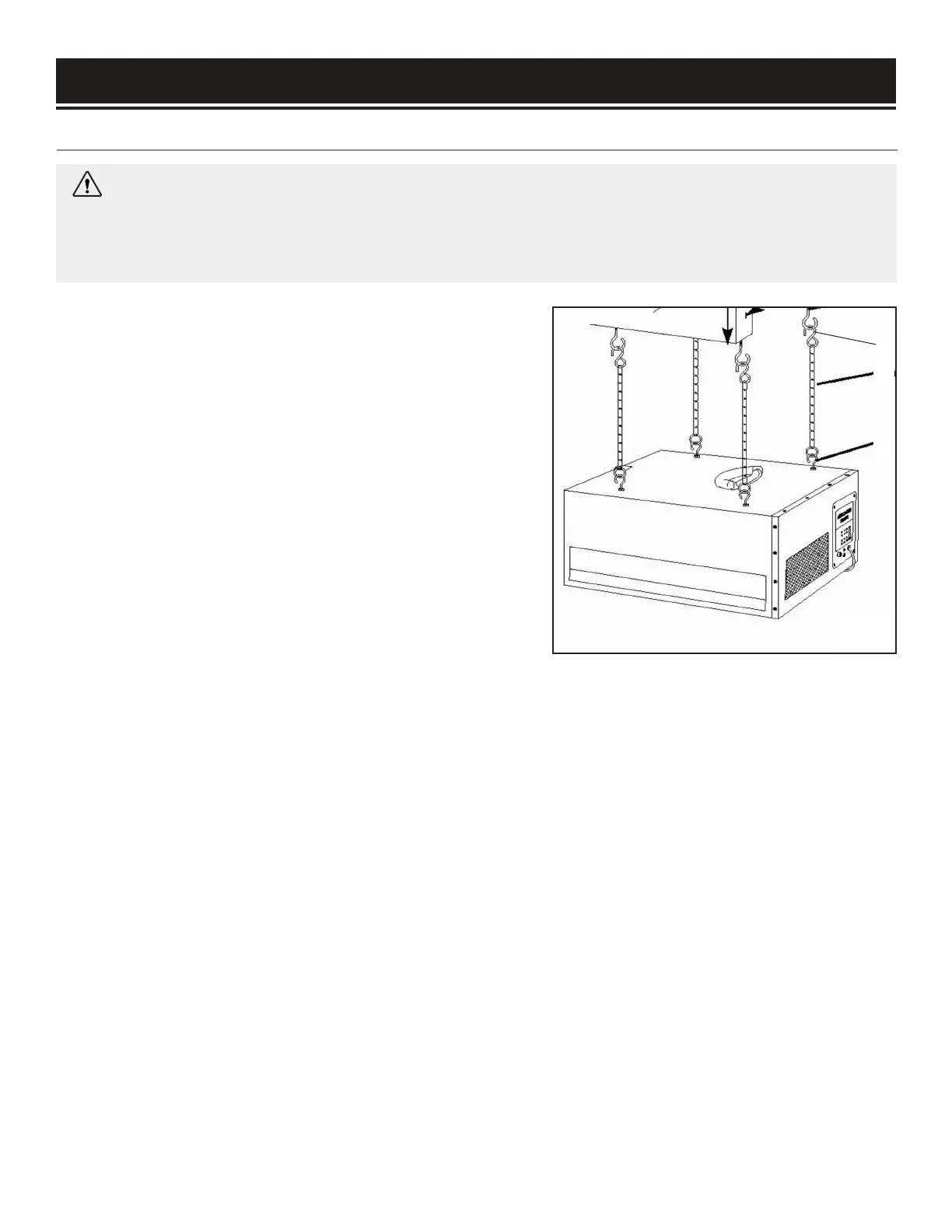

Fig. 4
WARNING: Only anchor the air filtration system to building structures capable of holding AT LEAST
100 lbs. Do not mount the air filtration system to non-structural surfaces such as dry wall or false ceil-
ing grids. The unit must be situated at least 7 feet above the floor and at least 3 feet (1 m) away from
any heating, cooling, or air circulation vents.
