Wen 56235i-126

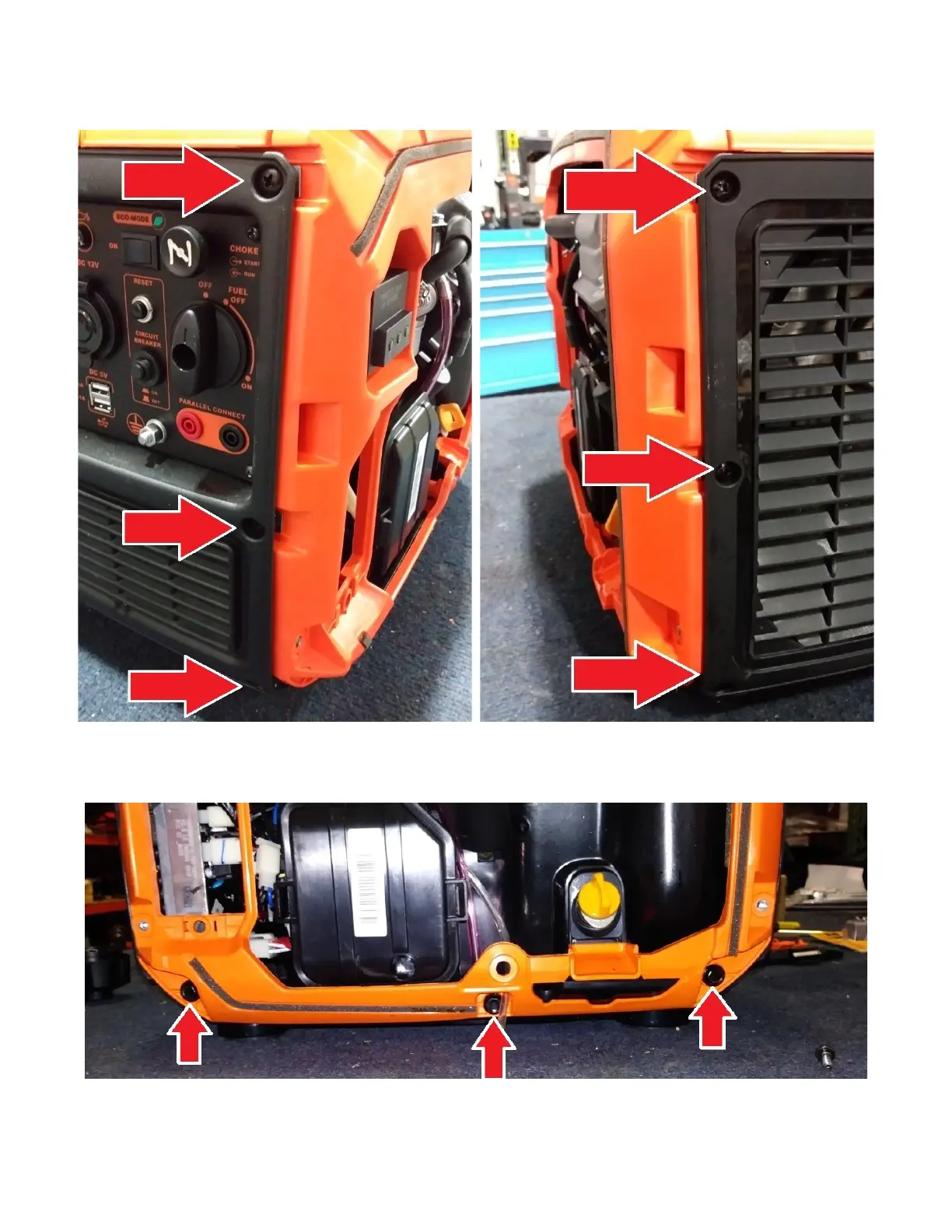

5. Remove the three screws from the right side of the control panel housing, and the three screws from the left
side of the muffler cover, as shown in Figs. 2 & 3 below.
Fig. 2: Remove these screws.
Fig. 3: Remove these screws.
6. Use the socket and ratchet to remove the 3 screws at the bottom of the generator’s shell. See Fig. 4 below.
Date last modified: 2020/10/26
Fig. 4: Remove these 3 screws.
