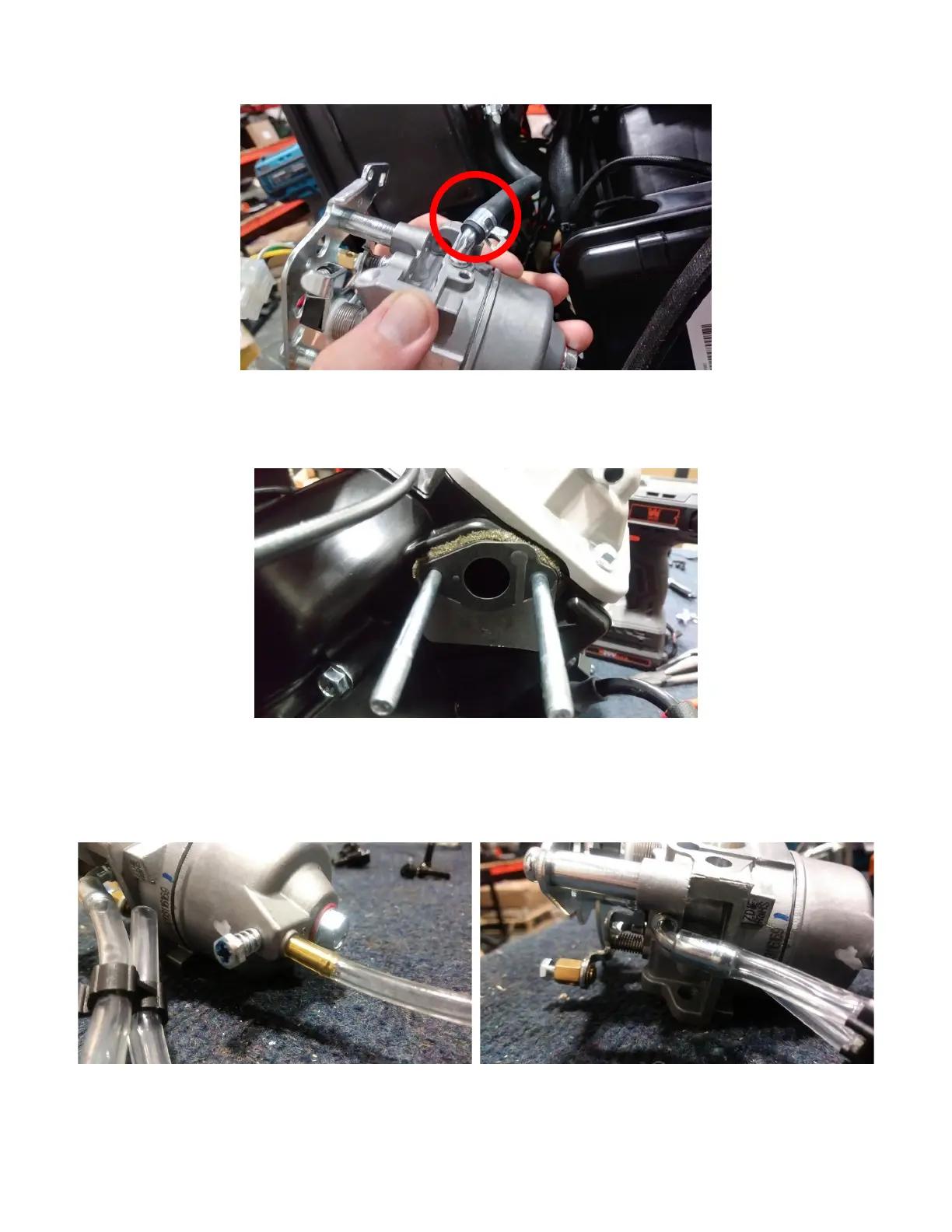

Fig. 16: Remove hose clamp and fuel line.
19. Make sure the carburetor/intake gasket remains on the studs (see Fig. 17 below) and is not damaged.
Fig. 17: Carburetor/intake gasket.
20. The carburetor has now been completely removed from the engine. Make sure to remove/replace the fuel
drain hose, pressure equalization hose, choke cable bracket, etc. See Figs. 18 – 19 below.
Fig. 18: Fuel drain hose. Fig. 19: Pressure equalization hose.
Date last modified: 2020/10/26
